EMB35 Fabricator's Kit Excision 18405

The Excision EMB 35 magnetic based drill is the machine for the efficient drilling of holes under 35mm. Weighing only 10.6kg, this German made drill is durable for any small engineering application. The direct Weldon arbor type spindle is capable of handling all 19mm shank core drills.

• Spring loaded guides for rigid gliding and reduced vibration
• Direct Weldon arbor type spindle for use with all 19mm shank core drills
• Durable switches for long lasting use
• 2 Coil 9,000N Magnetic adhesion for industrial use

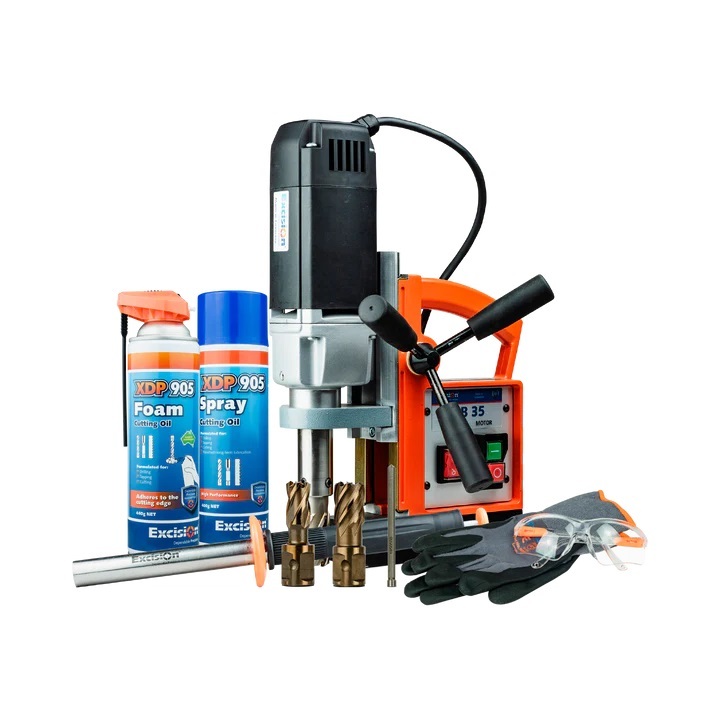

Kit includes as bonus:

• 14mm Core Drill
• 18mm Core Drill
• Short Series Ejector Pin
• 400mm Magnetic Swarf Remover
• Heavy Duty Gloves & Glasses
• XDP905 Heavy Duty Foam
• XDP905 Heavy Duty Spray

SPECIFICATIONS

• Core Drill Dimensions    - 12.0-35.0mm
• Cutting Depth - 50.0mm
• Twist Drill - 1.0-13.0mm with MT3 DIN 1897 short
• Arbors - 19mm Weldon Shank
• Stroke    - 120mm
• Gearbox-On-load speed - 450rpm
• Power Consumption - 1,100 W
• Voltage    - 230V 50/60Hz
• Tool Force (10mm)/Magnetic Adhesion ,- 2,100N/10,000N
• Magnetic Base    - 70×185mm
• Weight    - 10.6kg

Part Number/SKU: 18405

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
