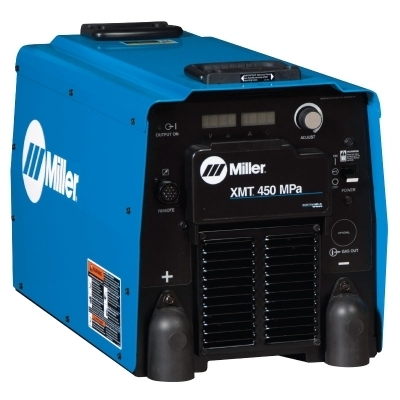

XMT450 MPA 400V CE

Provides high-quality weld cable connections.

Fan On Demand™

The cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.

Lift Arc™

Allows TIG starting without the use of high-frequency. Starts the arc without contaminating the weld with tungsten.

Wind Tunnel Technology™

Protects electrical components and PC boards from contamination.

Inverter Arc Control Technology

Provides greater puddle control for superior 6010 Stick electrode performance, and outstanding MIG
weld performance.

Adaptive Hot Start™

Increases the output Amperage at the start of a weld if necessary, eliminating electrode sticking.

Lightweight, Aerospace-Grade Aluminium Case

Offers heavy-duty protection with the benefit of reduced weight.

Process Selector Switch

Reduces the number of control setup combinations without reducing any features.

Large, Dual Digital Meters

Easy to view and can be pre-set.

Applications:

Truck and Trailer Manufacturing
Ship Building
Repair Shops
Rental Fleets
Railroad
Power Generation Plants
Fabrication
Construction
Processes:

TIG
Stick
Pulsed MIG
MIG
Flux Cored
Air Carbon Arc Cutting & Gouging
Specifications:

Input Power: 3 Phase
Rated Output: 450 A at 38 VDC, 100% Duty Cycle
Voltage Range CV Mode: 10 - 38 V
Amperage Range in CC Mode: 15 - 600 A
Max. Open Circuit Voltage: 90 VDC
Input at Rated Load Output, 50/60 Hz: (400 V 3 Phase) 27.6 A / (kVa) 22 / (kW) 18.9
Dimensions (mm): H: 438, W: 368, D: 689
Weight: 55.3 kg

Part Number/SKU: MR907468

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
