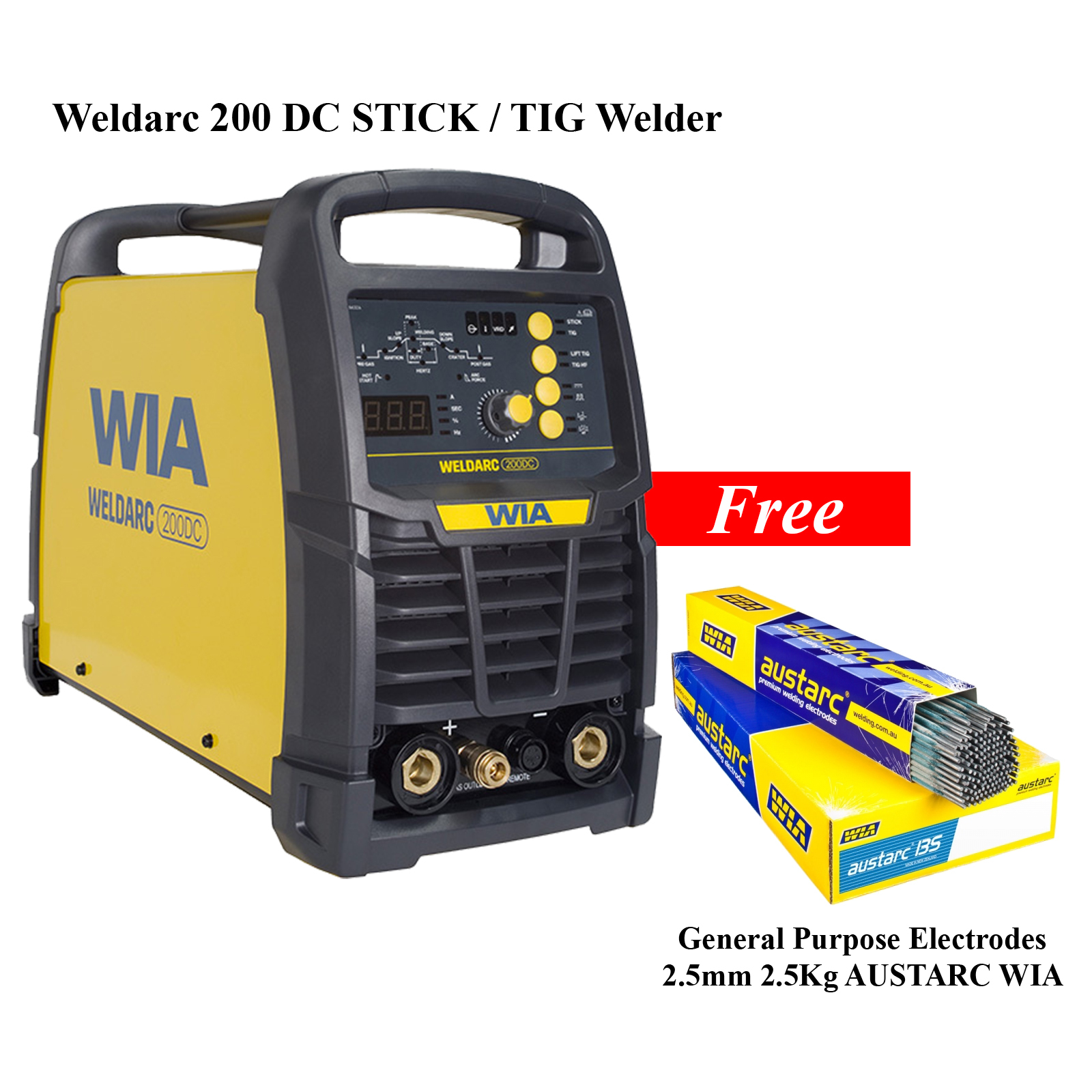

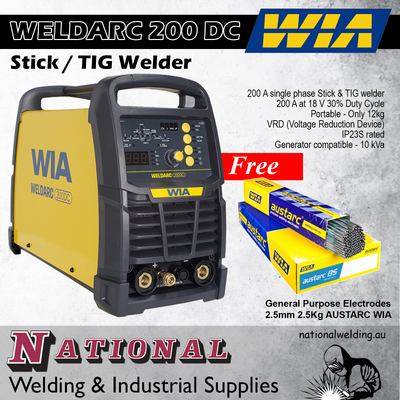

Weldarc 200DC STICK / TIG Welder WIA MC113-0

Get quality results with the Weldarc 200 DC Stick/TIG welder. For intermediate to welding professionals, HF Start and Pulse TIG capabilities provide easy non-contact arc starting and allows greater heat control of the weld pool, increases weld penetration and speed providing high quality weld results. Plus, it supports foot control adjustment for enhanced control capabilities.

Built with quality components and manufactured with 3 years warranty, the Weldarc 200 DC is an easy choice for welders looking for a well-priced professional grade Stick/TIG welder that doesn’t compromise on results.

• 200 A single phase Stick & TIG welder
• 200 A at 18 V 30% Duty Cycle
• Portable - Only 12kg
• HF Start - For easy non-contact arc starting; Increases tungsten life; Reduces weld inclusions
• Pulse TIG - For greater heat control; Increases weld penetration, speed and quality
• Power Factor Correction - Smooths out the actual input current; Maximises efficiency when welding on long leads or from generators
• Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
• Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
• Arc Force - Provides a more stable arc and prevents electrode sticking
• Hot Start - For better, easier arc starting
• VRD (Voltage Reduction Device)
• IP23S rated - Provides extra protection in harsh environments
• Generator compatible - 10 kVa

Arc Force
When machine is in Stick MMA mode, selecting the ARC FORCE allows adjustment of the increase in current that will occur when the arc starts to short circuit, or snap out. Adjusting this value can be useful when using cellulose
electrodes.
The amount of current is preset, the adjustment is a % of the preset value

Part Number/SKU: MC113-0
