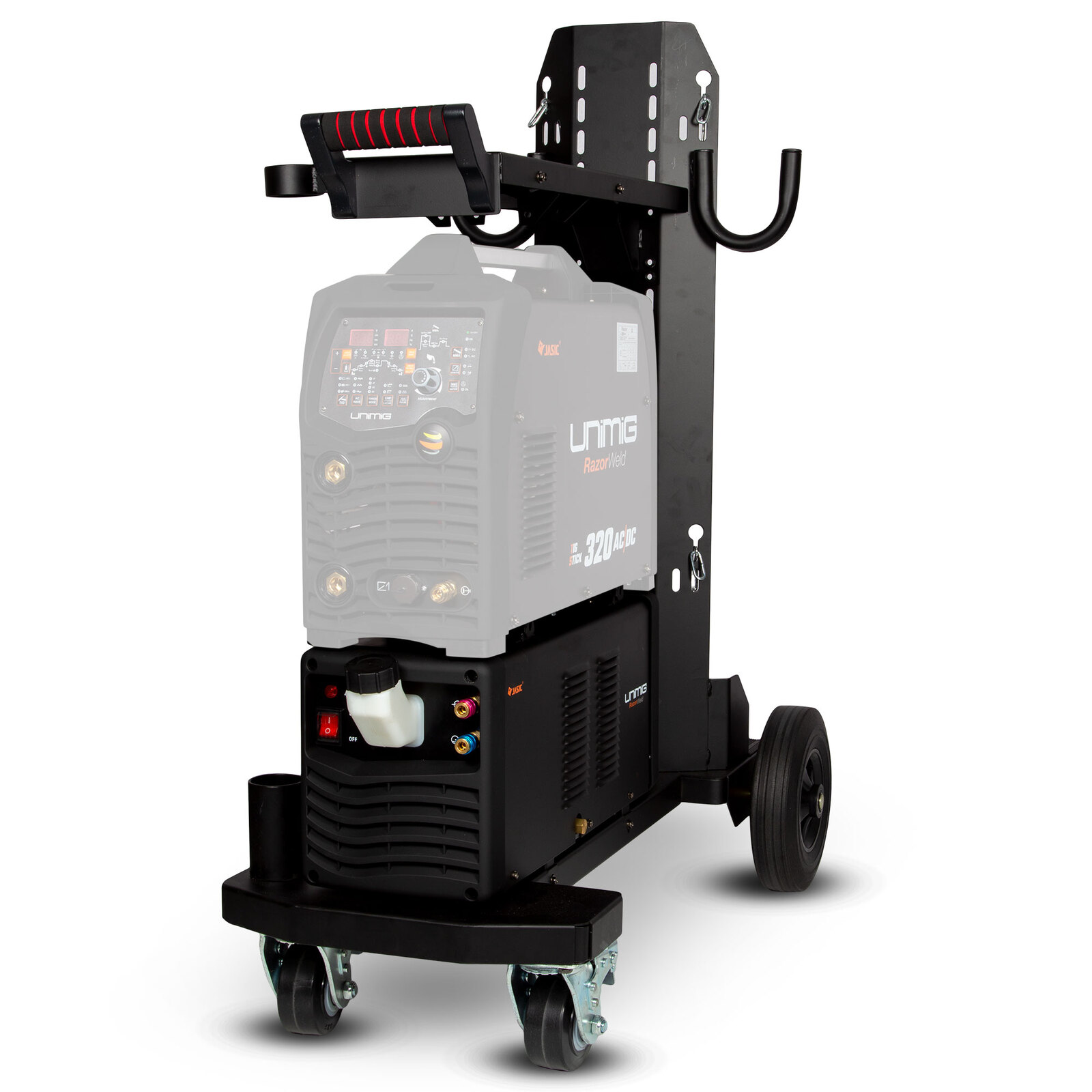

Water Cool Trolley For Razor 320 Ac/Dc Tig Welder Unimig JRTIG320TROLLEY

The RAZOR™ 320 AC/DC Water Cooler is the perfect accessory to maximise TIG welding performance, especially at high amperages. When combined with the T3W Water-Cooled TIG Torch, Bi-Flow™ Technology is utilised – high capacity cooling chambers remove excessive heat at source, allowing greater performance from the TIG Torch.

SPECIFICATIONS

 Primary input range   240V Single Phase
 Rated input power (kVA)  180 W
 Protection Class   IP21S
 Standard   IEC60974-2
 Dimensions (mm)   500 x 200 x 234
 Coolant Volume   5.5 Litres
 Maximum Pressure   0.3 MPa
 Maximum flow   5L/min
 Rated Cooling power   1.2 kW




Part Number/SKU: JRTIG320TROLLEY

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU JRTIG320TROLLEY
Brand Unimig
Shipping Weight 16.0000kg
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 0.700m
Shipping Cubic 0.085750000m3
Unit Of Measure ea
