Viper Cut 30 MKII Bundle Unimig PK11103

DESCRIPTION;

Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the Viper Cut 30 Mk II can handle
anything you throw at it.

FEATURES:

• CNC Connection
• Perforated Cutting Mode
• 10 AMP Plug
• Pilot Arc Start
• 12mm Clean Cut
• 14mm Severance

SPECIFICATIONS:

• PRIMARY INPUT VOLTAGE: 240V Single Phase
• SUPPLY PLUG: 10A
• RATED INPUT POWER (kVA): 7.5
• RATED OUTPUT VOLTAGE (V): 92
• Ieff (A): 10
• AIR FLOW DRAW OFF (L/min): 170
• AIR FLOW PRESSURE (Bar): 5-6 (70-87 psi)
• PROTECTION CLASS: IP21S
• INSULATION CLASS: F
• MINIMUM GENERATOR (kVA): 8
• DINSE CONNECTOR: 45931
• STANDARD: AS/NZ60974-1
• WARRANTY (Years): 2
• PLASMA CUT CURRENT RANGE: 20-30A
• PLASMA CUT DUTY CYCLE @ 40°C : 15% @ 30A, 60% @ 23A, 100% @ 20A
• MILD STEEL CUT THICKNESS: 12mm
• MILD STEEL SEVERANCE THICKNESS: 14mm
• ALUMINIUM CUT THICKNESS: 6mm
• ALUMINIUM SEVERANCE THICKNESS: 8mm
• STAINLESS STEEL CUT THICKNESS: 6mm
• STAINLESS STEEL SEVERANCE THICKNESS: 8mm
• DIMENSIONS (mm): 534x166x343mm
• WEIGHT (kg): 8.5kg
• PLASMA ARC START: Pilot Arc
• THERMAL OVERLOAD PROTECTION: Over Temperature Warning

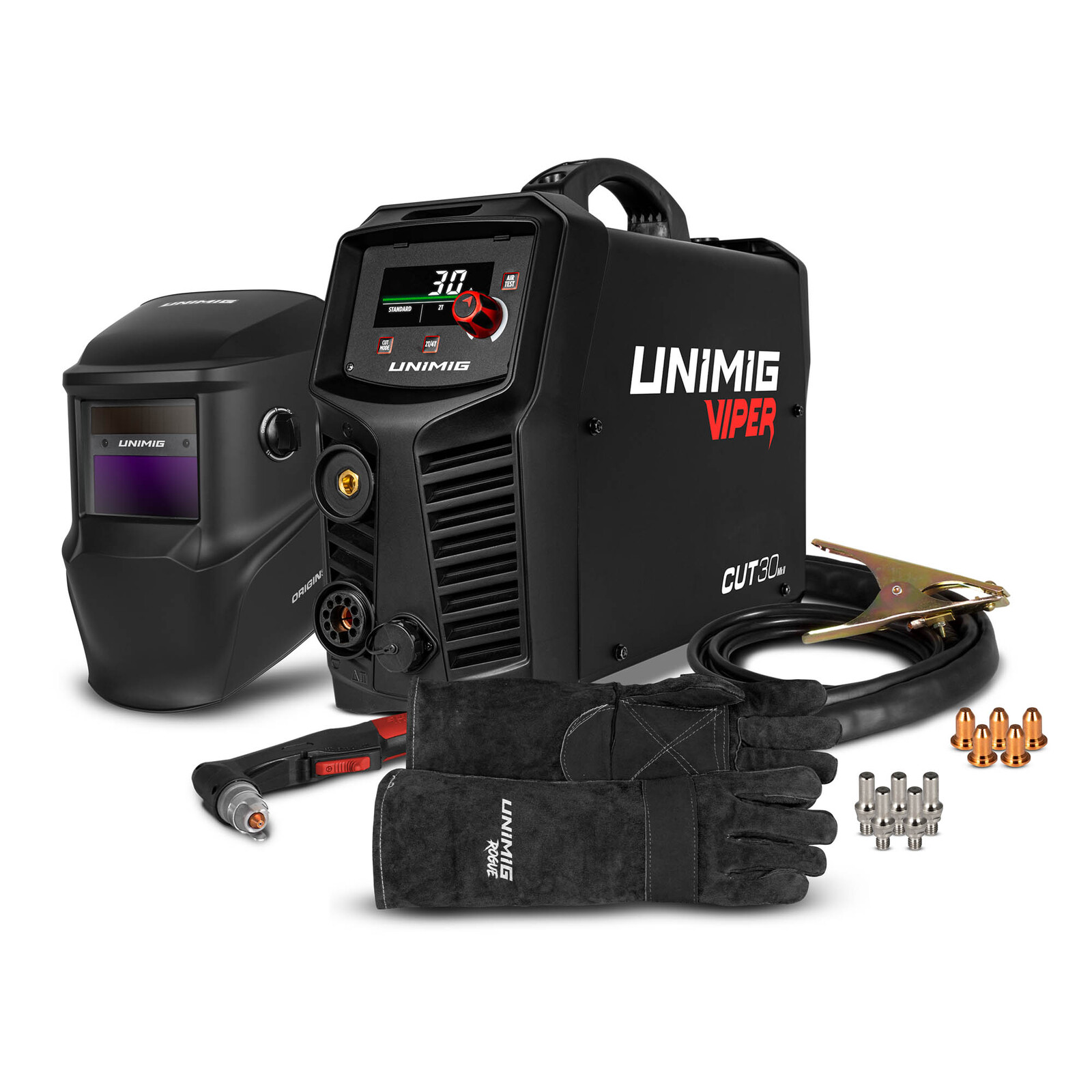

BUNDLE CONTENTS:
Viper cut 30MK II plasma cutter.
Welding helmet origin series black.
Rouge heavy-duty welding gloves.
Pkt 5 viper cut 30 cutting tips.
Electrodes suit SC30 Qty 5.

Part Number/SKU: PK11103

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
