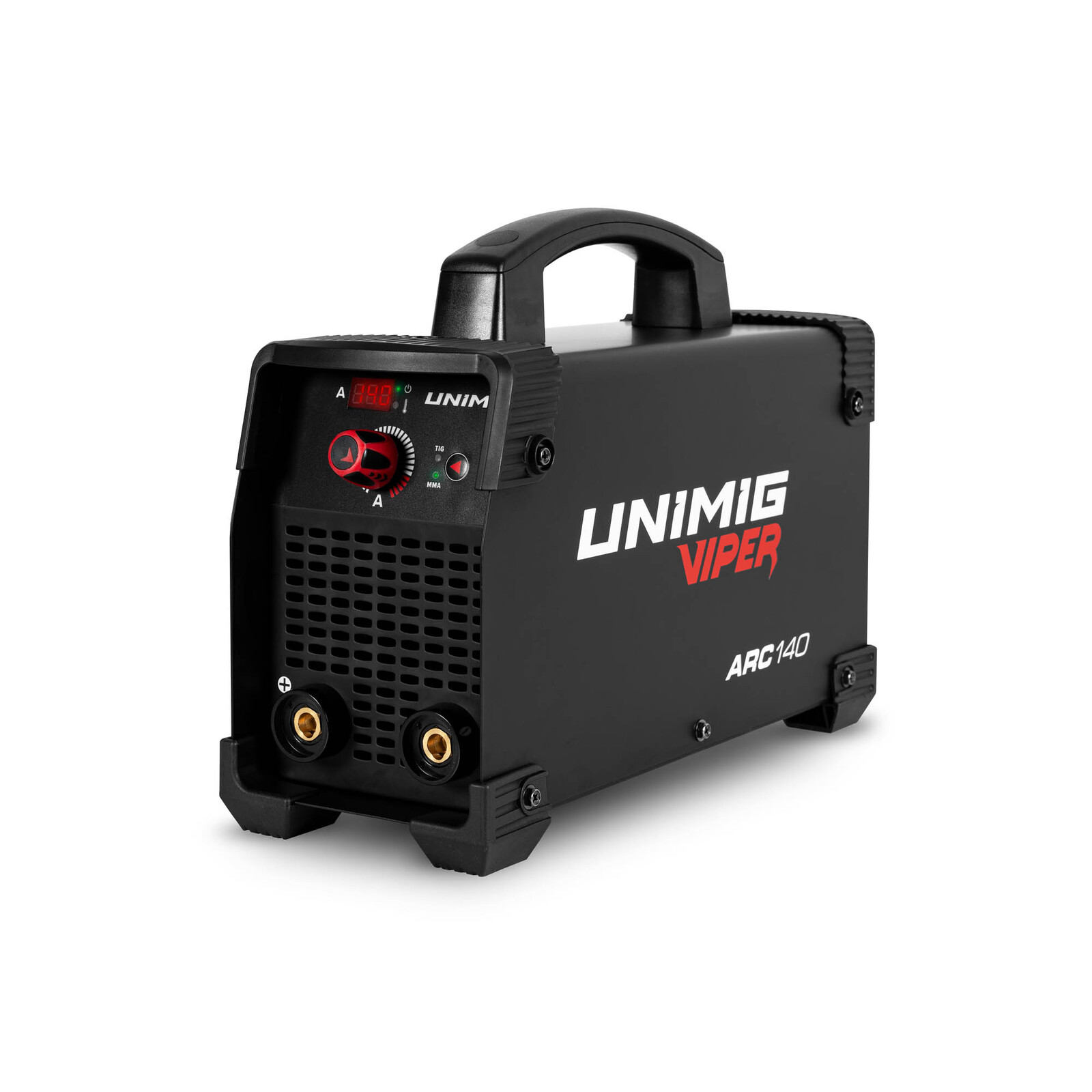

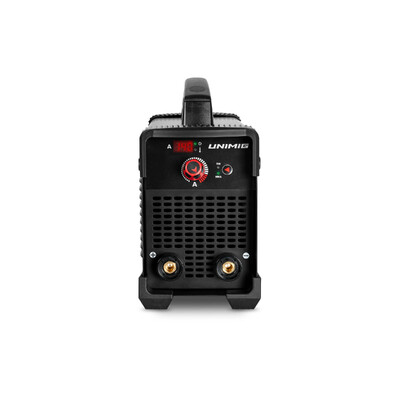

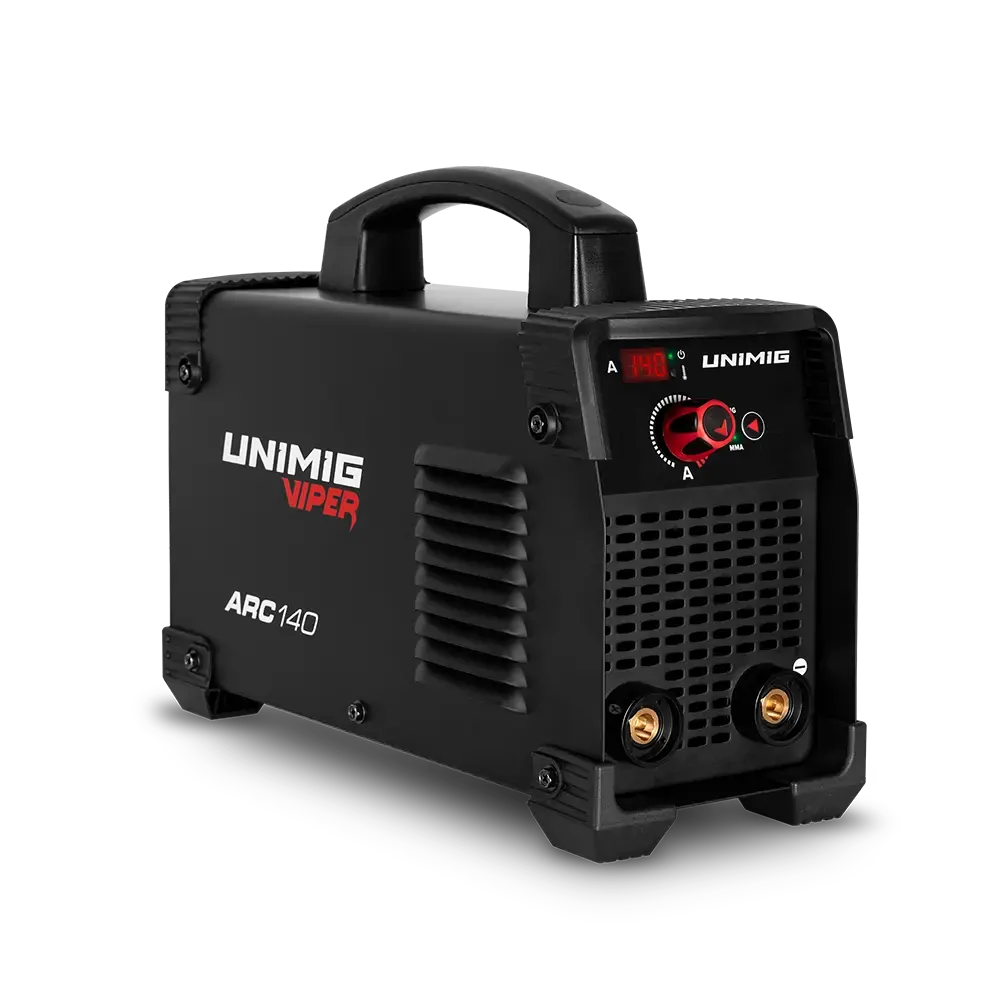

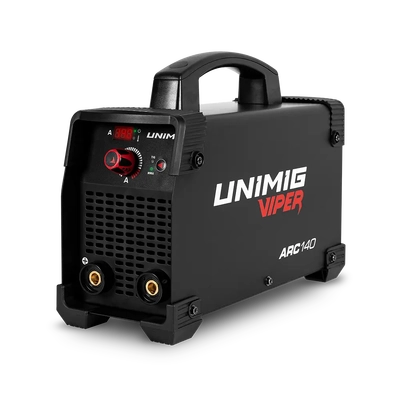

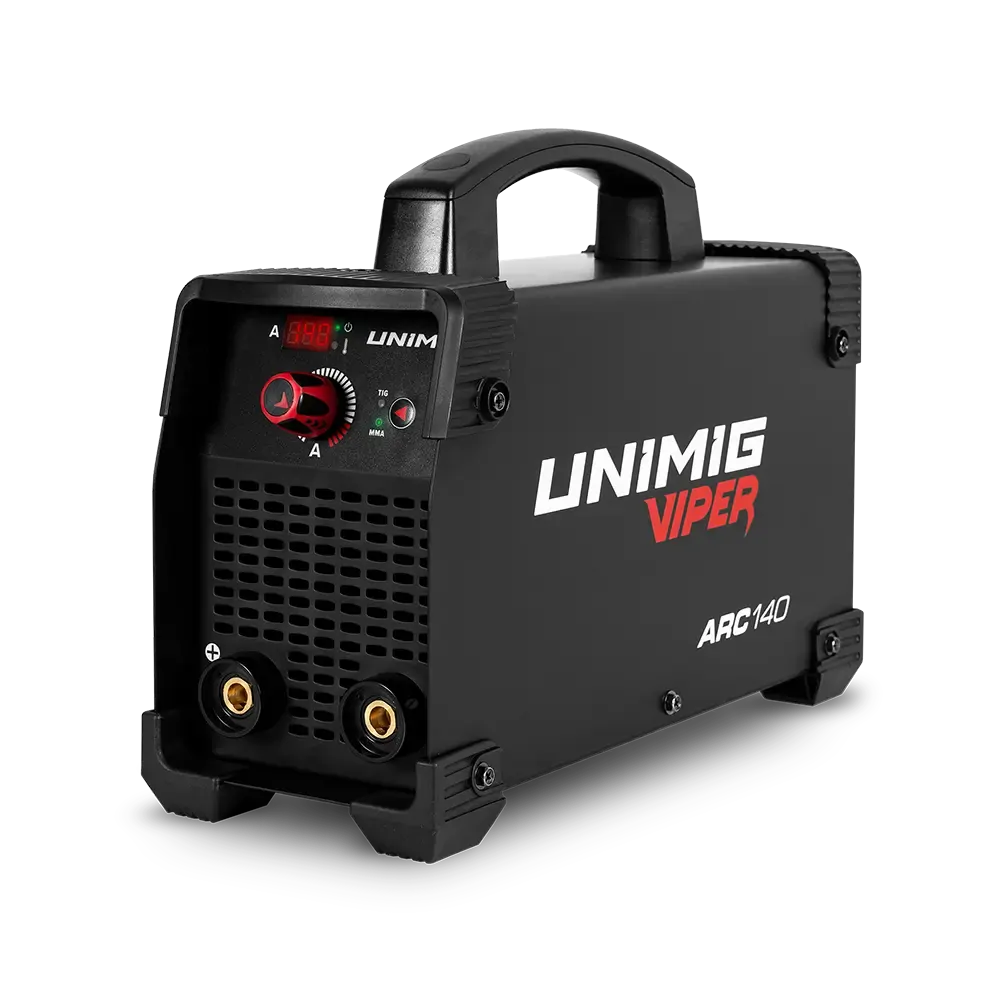

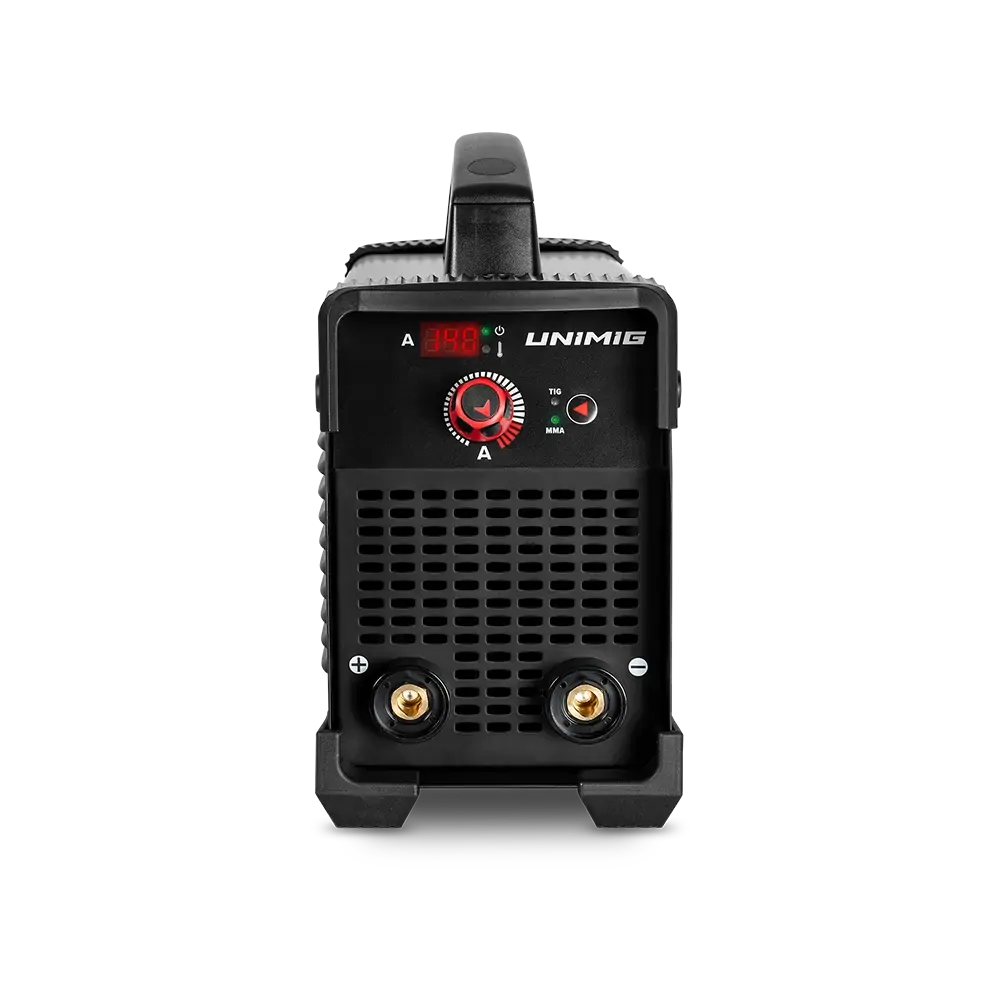

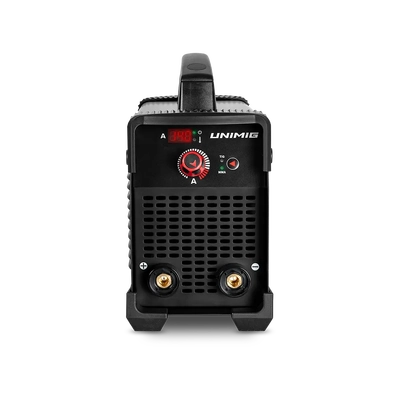

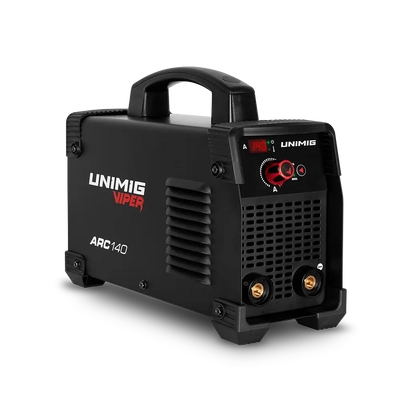

Viper ARC 140 Stick/TIG Welder Unimig U31006

DESCRIPTION:

Everything you need to get up and running STICK welding that won’t break the bank.

• Take it anywhere with a 10 amp plug
• Connect a standard TIG torch and get Lift Arc TIG
• Keeps the internals safe with Thermal Overload Protection

FEATURES:

• LED AMP READOUT:  Allows for precise amperage control.
• 10 AMP PLUG: Connect to any standard outlet.
• DC LIFT ARC TIG: TIG welding functionality.
• THERMAL OVERLOAD PROTECTION: Prevents machine from exceeding a safe operating temperature.

SPECIFICATIONS:

MACHINE SPECIFICATIONS

• PRIMARY INPUT VOLTAGE:                 240V Single Phase
• SUPPLY PLUG:                                     10 AMP
• RATED INPUT POWER (kVA):              6.5
• Ieff (A):                                                   9.9
• RATED OUTPUT:                                  10-140A
• NO LOAD VOLTAGE (V):                      69
• PROTECTION CLASS:                         IP21S
• INSULATION CLASS:                           F
• POWER FACTOR:                               0.7
• MINIMUM GENERATOR (kVA):           8.0
• DINSE CONNECTOR:                         10/25
• STANDARD:                                         AS/NZ60974-1
• SUITABLE MATERIAL:                         Mild Steel, Stainless Steel, Copper, Cast Iron
• WARRANTY (Years):                            1

TIG SPECIFICATIONS

• TIG FUNCTION TYPE:                                  DC Lift Arc
• TIG WELDING THICKNESS RANGE:           1-5mm

STICK SPECIFICATIONS

• STICK WELDING CURRENT RANGE:                           20-140A
• STICK DUTY CYCLE @ 40°C:                                       15% @ 140A
• STICK ELECTRODE RANGE:                                        2.5-3.2mm
• STICK WELDING THICKNESS RANGE:                       2-8mm

Size & Weight

• DIMENSIONS (mm):                 352x140x260mm
• WEIGHT (kg):                           4.0kg

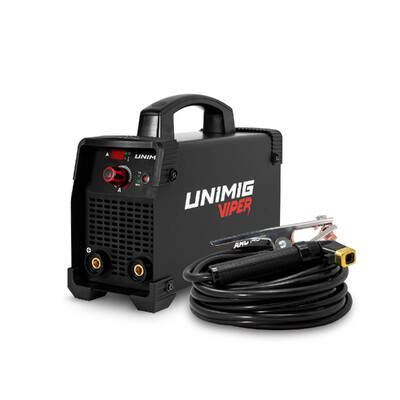

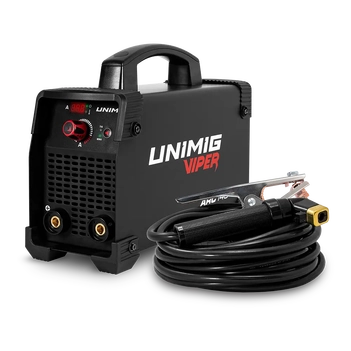

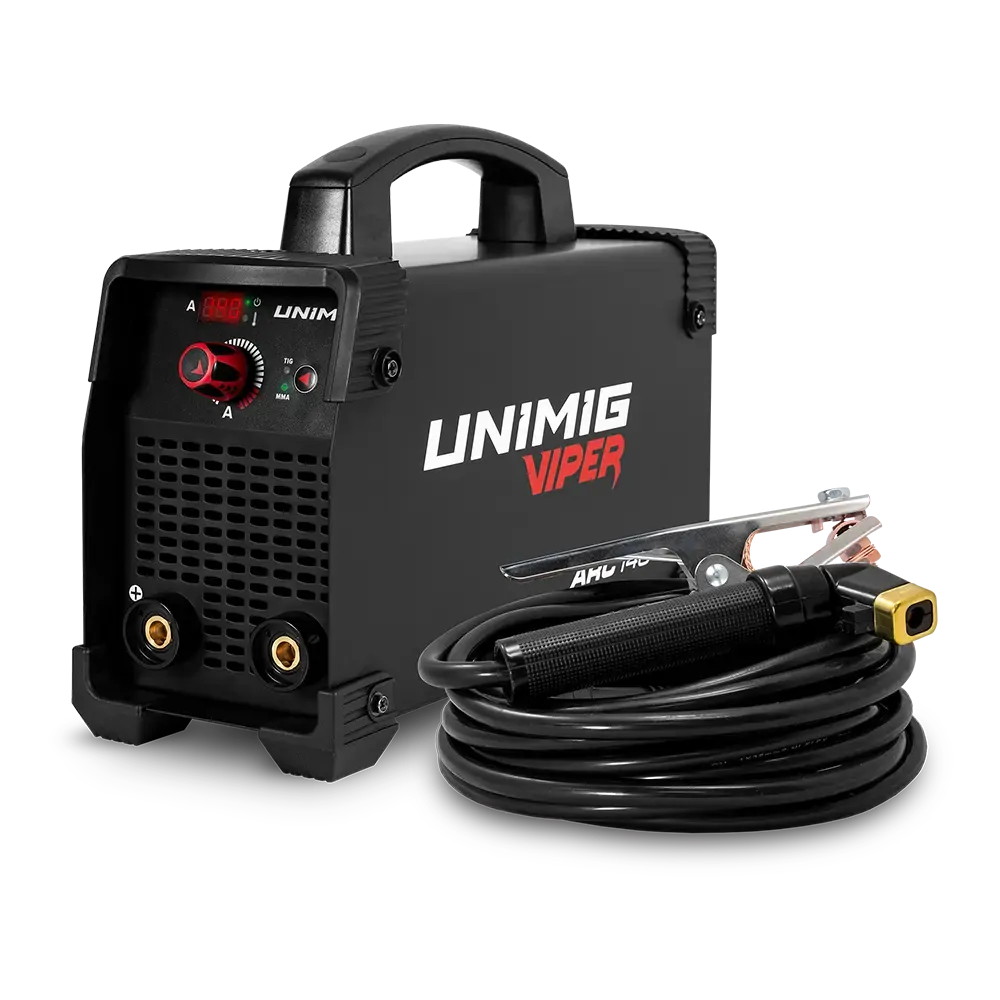

CONTENTS:

• VIPER™ ARC 140 STICK Welder
• 3m Twist-Lock Electrode Holder
• 200 Amp Earth Clamp & Lead
• Operating Manual

Part Number/SKU: U31006

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
