THE SINGLE HELMET SOLUTION

In any fabrication environment, productivity, safety and optic clarity are important. The VIKING® 3250D FGS™ from Lincoln Electric provides enhancements to each of these elements when compared to a standard welding helmet.

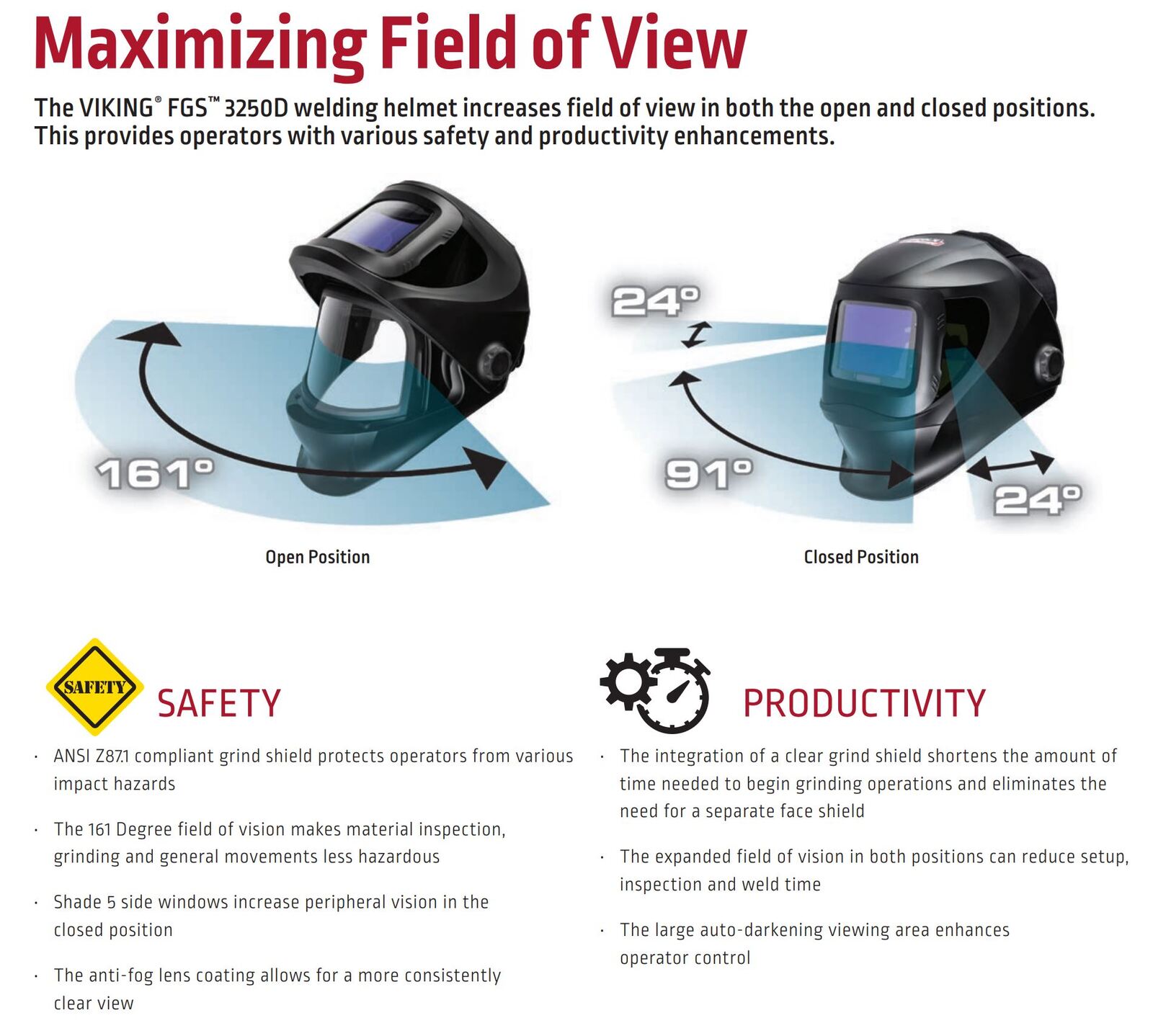

Maximizing Field of View

The integrated clear grind shield and shade 5 side windows increase field of view in both the open and closed positions.

Productivity

• The integration of a clear grind shield shortens the amount of time needed to begin grinding operations and eliminates the need for a separate face shield.
• The expanded field of vision in both positions can reduce setup, inspection and weld time

Safety

• The expanded field of vision in both the open and closed positions makes material inspection, grinding and general movements less hazardous.
• The ANSI Z87.1 compliant grind shield can protect operators from various impact hazards

Industry Leading Optics

• 4C Lens Technology - Broadens the color range & hues which can be seen in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle.

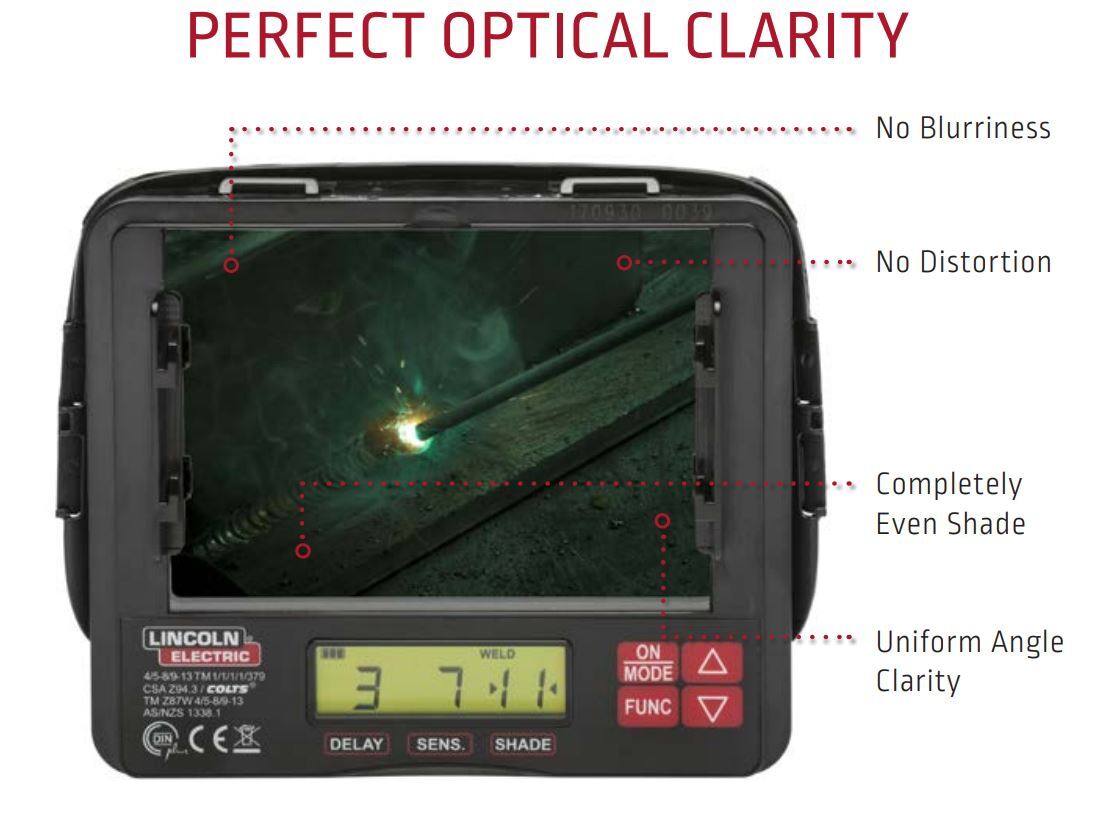

• Perfect 1/1/1/1 Optical Clarity - This rating is determined by measuring blurriness, distortion, shade consistency and angle uniformity of the auto-darkening welding lens.

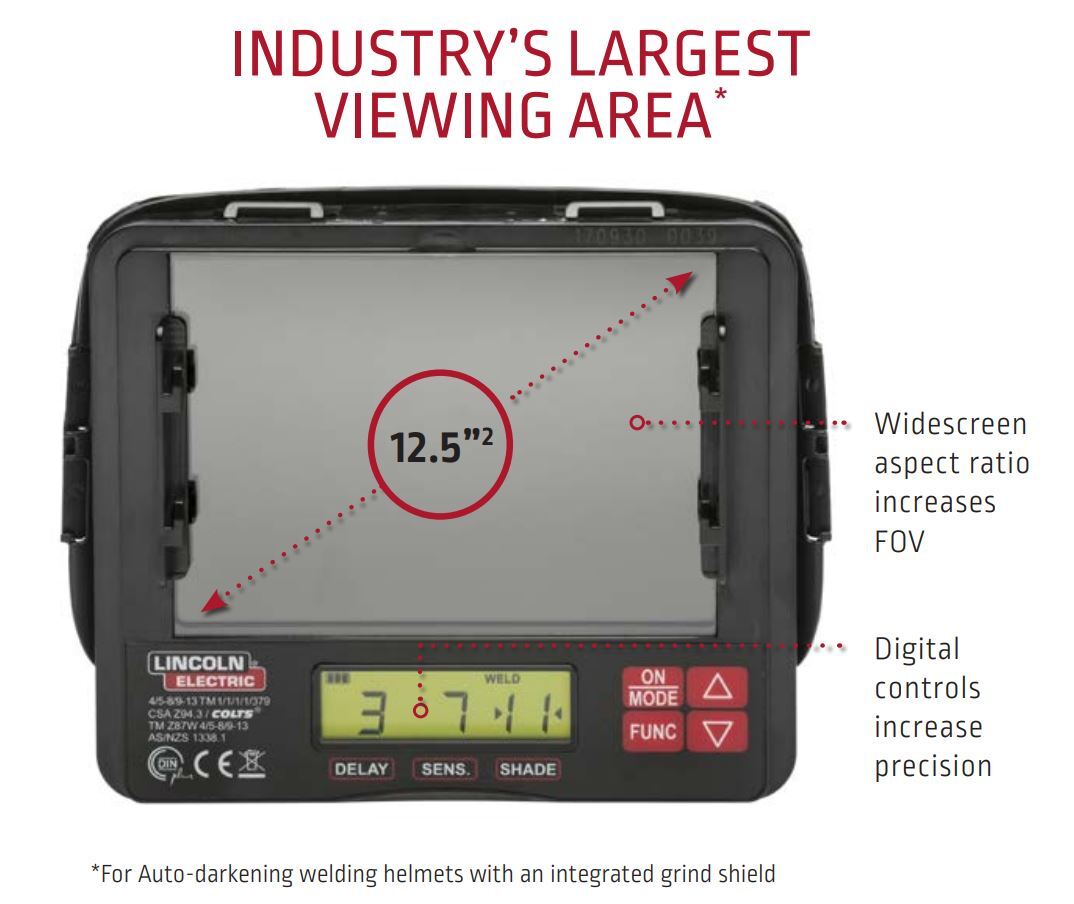

• Largest Viewing Area for Product Type - The 12.5 square inch auto-darkening viewing area provides a widescreen view which increases versatility and operator control.
• Digital Controls

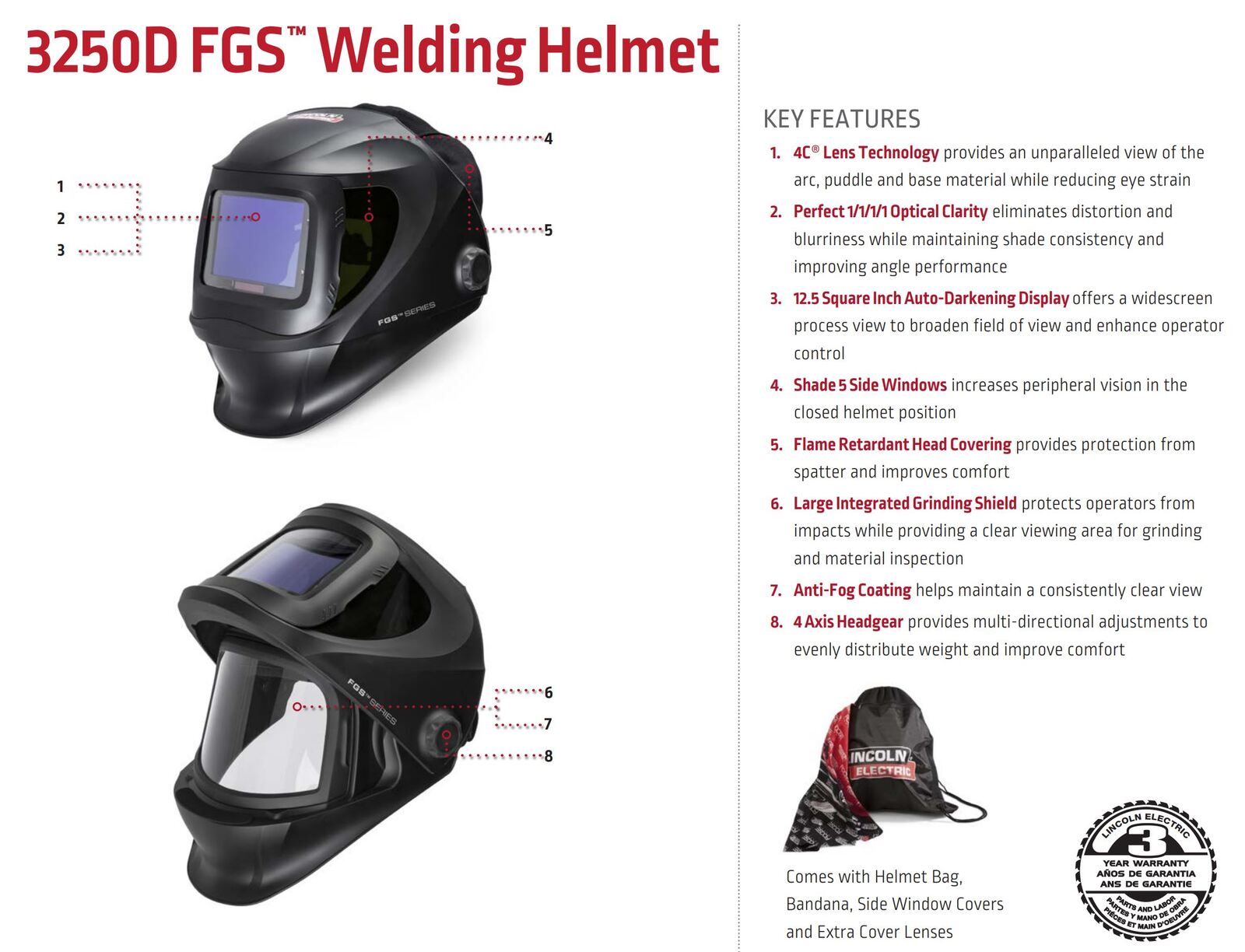

Features

• Integrated clear grind shield with anti-fog coating
• Exclusive 4C Lens Technology reduces color saturation, improves clarity and reduces eye strain
• Perfect Optical Clarity eliminates bluriness and distortion while maintaining an even shade
• Shade 5 side windows notably increase peripheral vision
• Extra large auto darkening display offers a wide screen view

Battery Needed - 2 x CR2450

Part Number/SKU: K3540-3
