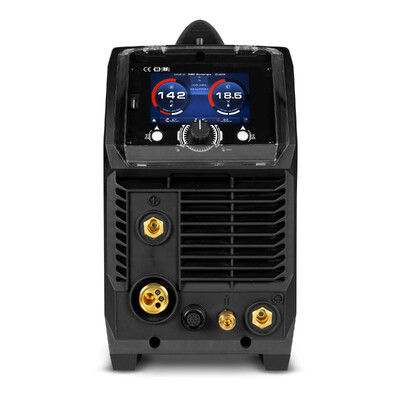

RAZOR MULTI 230 AC/DC MIG/TIG/STICK WELDER U11004K

Our brand new RAZOR MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZOR line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.

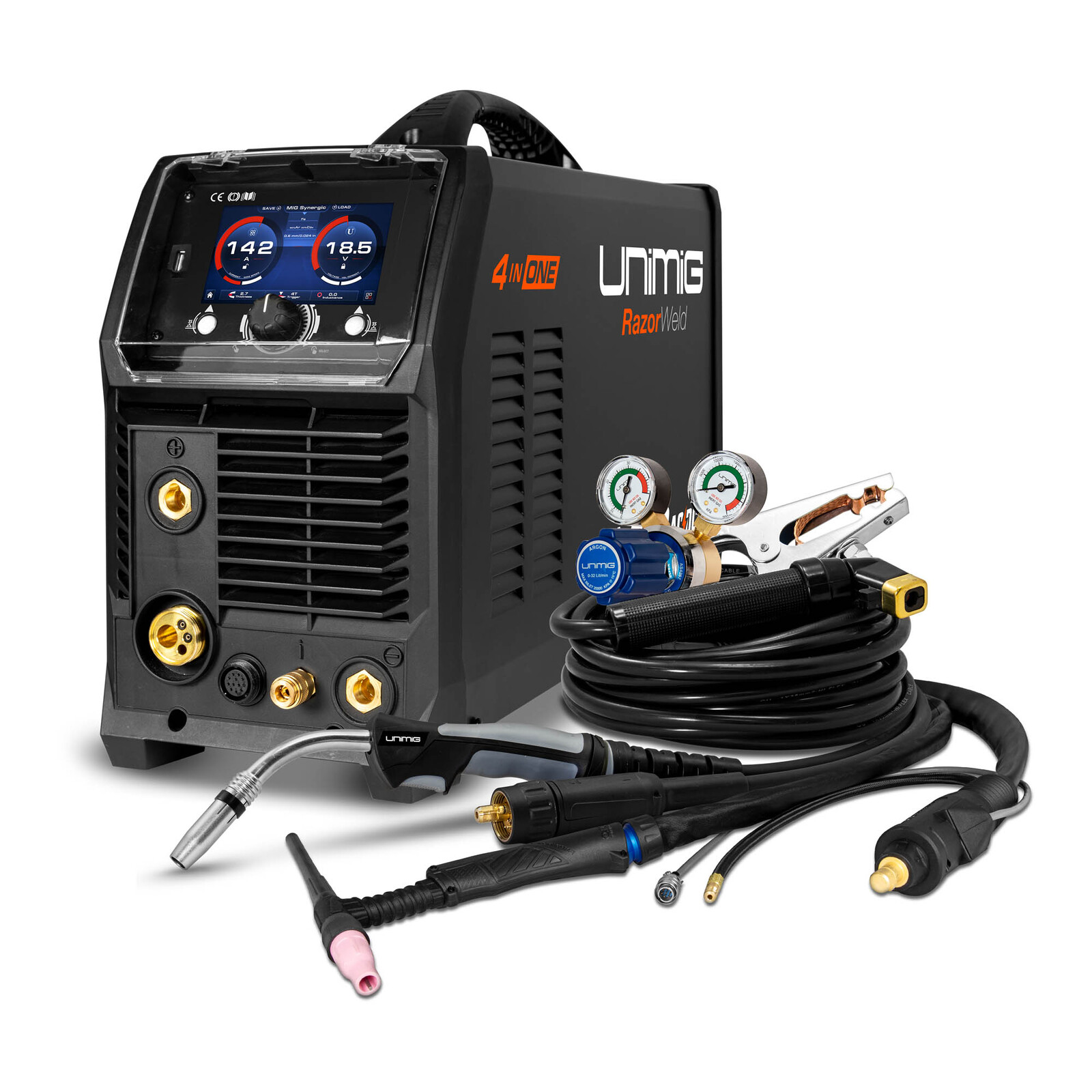

Package Contents

• RAZOR MULTI 230 AC/DC MIG/TIG/STICK Welder
• 4m SB24 MIG Torch
• 4m ARC TORCHOLOGY T2 TIG Torch
• 3m Twist Lock Electrode Holder
• 3m 300 Amp Earth Clamp & Lead
• Twin Gauge Argon Regulator
• 2m Quick-connect Gas Hose
• 15A to 10A Conversion Lead

TRUE 4 IN 1 MULTI PROCESS MIG, AC/DC TIG, MMA

100+ SYNERGIC PROGRAMS JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO.

5” LCD SCREEN THE LARGE SCREEN DISPLAY IS CLEAR, WITH AN EASY TO NAVIGATE INTERFACE.

10A / 15A COMPATABILITY CONNECT TO ANY 10A OR 15A OUTLET FOR EVEN GREATER VERSATILITY.

Full Feature Walkthrough
Check out all of the features available on the RAZOR MULTI 230 AC/DC in our comprehensive feature walkthrough video.

AC/DC High Frequency TIG
TIG weld aluminium without issues with AC. High-Frequency TIG (H/F TIG) gives you more control when starting or stopping the arc and reduces the risk of contaminating the tungsten or the weld.

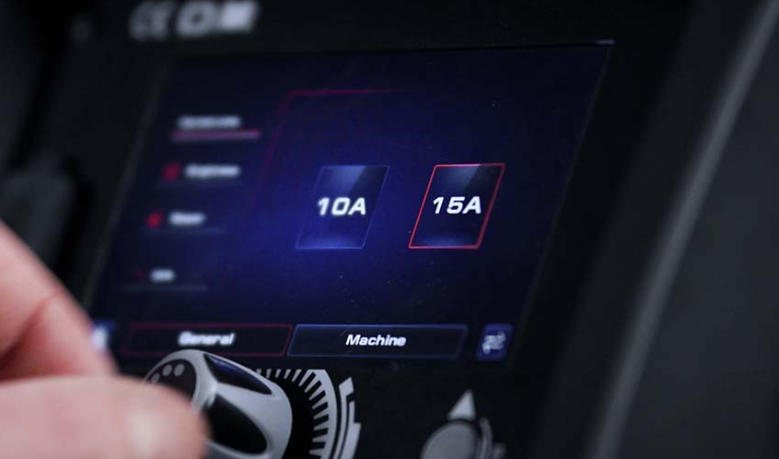

DUAL PLUG COMPATIBILITY (10A & 15A)
Connect to any 10A or 15A outlet for even greater versatility. The machine comes plugged with a 15A plug, so to connect to a 10A outlet simply attach the supplied conversion lead to your machine and change your output mode on the machine. In 10A mode the output is limited to 200A, and the duty cycle is limited to 10% at 200A.

Power Factor Correction (PFC)
PFC gives you maximum electrical efficiency and automatically compensates for any voltage fluctuation.

MIG Smart-Set
Setting up for a weld has never been easier, just set your wire, gas, joint type and material thickness and you’re ready to weld!

Complete MIG Weld Cycle Control
Get complete control over your MIG welds with a full set of adjustable parameters. It comes with the standard settings like as pre- and post-gas flow, arc ignition speed, and burnback. Plus it also includes more advanced features, like Arc Start and Crater Fill, for full control over the beginning and end of your welds.

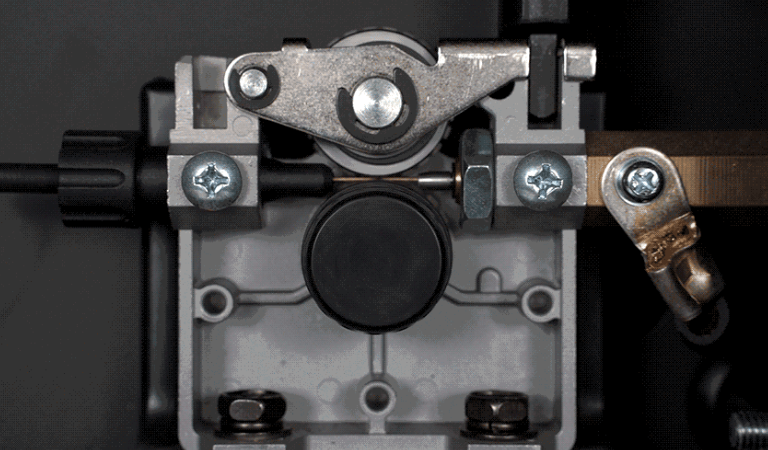

Geared Wire Drive
This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches.

TIG Smart-Set
The easiest way to set up for a TIG weld, simply set your filler material, joint type and material thickness and you’re good to go!

Mix AC/DC
Mixed AC/DC welding is the combination of TIG AC and TIG DC- in one weld. Mixed AC/DC gives you faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.

Heat Control Trigger (HCT) Mode
When using the Heat Control Trigger Mode lets you set a base current, which you can switch to at any time during a weld by pressing the trigger button. Heat Control Trigger Mode is great for manual heat input control as you go.

PULSE MMA (STICK)
Pulse MMA (STICK) welding helps reduce spatter, improves heat control and allows for an easier removal of slag. It also improves the speed and efficiency of vertical up welds by eliminating the use of the “Christmas Tree” technique, while still maintaining root fusion.

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase

SUPPLY PLUG
15 AMP (15A to 10A Conversion Lead Included)

Ieff (A)
9.4 / 15

RATED OUTPUT
25A/15.3V-200A/24V (10A) 25A/15.3V-230A/25.5V (15A)

PROTECTION CLASS
IP21

INSULATION CLASS
H

MINIMUM GENERATOR (kVA)
8.5 (10A) / 10 (15A)

DINSE CONNECTOR
35/50

STANDARD
AS/NZ60974-1

SUITABLE MATERIAL
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)
3

MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE
25-200A (10A) / 25-230A (15A)

MIG DUTY CYCLE @ 40°C
10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)

MIG WIRE SIZE RANGE
0.6-1.0mm

MIG WIRE SPOOL SIZE
100mm / 200mm

MIG WELDING THICKNESS RANGE
1-10mm

DRIVE ROLLER SIZE
30/22

TIG SPECIFICATIONS
TIG FUNCTION TYPE
AC/DC High-Frequency

TIG WELDING CURRENT RANGE
10-200A

TIG DUTY CYCLE @ 40°C
25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)

TIG WELDING THICKNESS RANGE
1-8mm

STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
10-200A

STICK DUTY CYCLE @ 40°C
10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 200A, 60% @ 130A, 100% @ 100A (15A)

STICK ELECTRODE RANGE
2.5-4.0mm

STICK WELDING THICKNESS RANGE
2-12mm

ARC FORCE
0-100%

SIZE & WEIGHT
DIMENSIONS (mm)
660x210x330mm

WEIGHT (kg)
20kg

MACHINE FEATURES
WIRE DRIVE
Geared

VRD
Yes

SPOOL GUN CONNECTION
Yes

FOOT CONTROL CONNECTION
Wired & Wireless

BURNBACK ADJUSTMENT
Yes

WIRE INCH
Yes

INDUCTANCE CONTROL
Yes

CRATER CURRENT CONTROL
Yes

THERMAL OVERLOAD PROTECTION
Yes

Warranty
UNIMIG is pleased to offer a 3-year warranty on all RAZOR™ Machines*.

UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.

*Please note warranty only applies to the power source only
