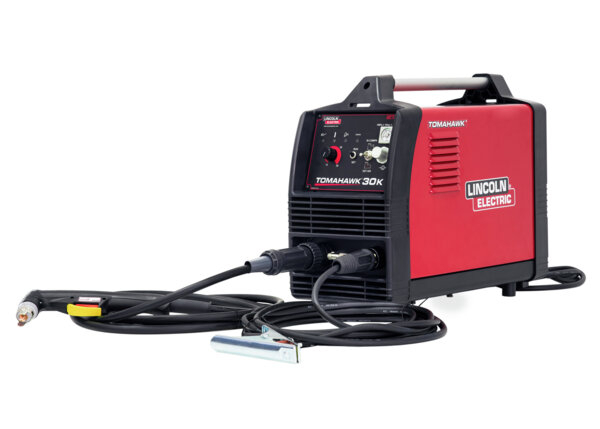

Tomahawk 30K Plasma Cutter Lincoln K12038-3



What's Included

  • Internal air compressor (external air connection also standard)
  • LC30 Torch with 4 m cable
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables
  • Shoulder strap
  • Input power cord

*vs market standard



Features

  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
  • Continuous Output Control – Focus the arc for different material thickness
  • Touch Start system – Reliable plasma arc initiation without high frequency
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
  • Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life – New electrode and nozzle design save you money in the long run
  • Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
  • Engine Drive Compatible – Select a Lincoln Electric Outback® or Vantage® to power your Tomahawk® in remote location




Plasma Machines Process Cutting
Torch Included Yes
Torch Cooling Air
Gas Pressure Required 5,0bar – 6,0bar / 125 ±10% l/min
Recommended Cutting Capacity (Mild Steel)(mm/M)     12mm
Maximum Cutting Thickness (Mild Steel) (mm/M)  16mm
Maximum Severance (Mild Steel) (mm/M)  20mm
Recommended Cutting Capacity (Stainless) (mm/M)  12mm
Maximum Cutting Thickness (Stainless) (mm/M) 16mm
Maximum Severance (Stainless) (mm/M) 20mm
Recommended Cutting Capacity (Aluminum) (mm/M) 12mm
Maximum Cutting Thickness (Aluminum) (mm/M)  16mm
Maximum Severance (Aluminum) (mm/M)  20mm



Technical Specifications

Input Voltage 230/1/50
Input Current 16A
Input Hertz 50 Hz
Input Power 3,3KW
Input Phase 1Ph
Mode Icon     CC
Output Range 15 – 30A
Polarity DC
Rated Output 30A@60%

Warranty 2 Years




Part Number/SKU: K12038-3

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Specifications

Part no.

K12038-2

Output Range

10-25A

Rated Input

16A

Input/Phase/Voltage/Hertz

240/1/ 50/60

Duty Cycle

25A@35% 20A@60% 15A@100%

Required Inlet Pressure

6.0 bar -7.5 bar

Required Flow Rate

80 l/min@ 5.0 bar

Dimensions (mm) H x W x D

H 385 , W 215 , D480

Net Weight (kg)

18.5
SKU K12038-3
Brand Lincoln
Shipping Weight 25.0000kg
Shipping Width 0.650m
Shipping Height 0.650m
Shipping Length 0.650m
Shipping Cubic 0.274625000m3
Unit Of Measure ea

2 Years

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review


Tomahawk 30K Plasma Cutter Lincoln K12038-3



What's Included

  • Internal air compressor (external air connection also standard)
  • LC30 Torch with 4 m cable
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables
  • Shoulder strap
  • Input power cord

*vs market standard



Features

  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
  • Continuous Output Control – Focus the arc for different material thickness
  • Touch Start system – Reliable plasma arc initiation without high frequency
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
  • Front Panel Purge Control – Makes it easy to set the air flow rate without initiating the plasma arc.
  • Cool Operation, Long Consumable Life – New electrode and nozzle design save you money in the long run
  • Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
  • Engine Drive Compatible – Select a Lincoln Electric Outback® or Vantage® to power your Tomahawk® in remote location




Plasma Machines Process Cutting
Torch Included Yes
Torch Cooling Air
Gas Pressure Required 5,0bar – 6,0bar / 125 ±10% l/min
Recommended Cutting Capacity (Mild Steel)(mm/M)     12mm
Maximum Cutting Thickness (Mild Steel) (mm/M)  16mm
Maximum Severance (Mild Steel) (mm/M)  20mm
Recommended Cutting Capacity (Stainless) (mm/M)  12mm
Maximum Cutting Thickness (Stainless) (mm/M) 16mm
Maximum Severance (Stainless) (mm/M) 20mm
Recommended Cutting Capacity (Aluminum) (mm/M) 12mm
Maximum Cutting Thickness (Aluminum) (mm/M)  16mm
Maximum Severance (Aluminum) (mm/M)  20mm



Technical Specifications

Input Voltage 230/1/50
Input Current 16A
Input Hertz 50 Hz
Input Power 3,3KW
Input Phase 1Ph
Mode Icon     CC
Output Range 15 – 30A
Polarity DC
Rated Output 30A@60%

Warranty 2 Years



2 Years

Specifications

Part no.

K12038-2

Output Range

10-25A

Rated Input

16A

Input/Phase/Voltage/Hertz

240/1/ 50/60

Duty Cycle

25A@35% 20A@60% 15A@100%

Required Inlet Pressure

6.0 bar -7.5 bar

Required Flow Rate

80 l/min@ 5.0 bar

Dimensions (mm) H x W x D

H 385 , W 215 , D480

Net Weight (kg)

18.5
SKU K12038-3
Brand Lincoln
Shipping Weight 25.0000kg
Shipping Width 0.650m
Shipping Height 0.650m
Shipping Length 0.650m
Shipping Cubic 0.274625000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other National Welding and Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Associated products

LC30 Cutting Tip, 30A For LC30 Plasma Torch Pkt: 5 Lincoln W100000326

LC30 Cutting Tip, 30A For LC30 Plasma Torch Pkt: 5

Part No: W100000326

$39.00
(inc GST)
Electrodes (small) to suit Lincoln LC25/LC30 Plasma Torch W03X0893-75A Pkt : 5

Electrodes (small) to suit Lincoln LC25/LC30 Plasm

Part No: W03X0893-75A

$66.00
(inc GST)
Gas Diffuser To Suit Lincoln LC25 Plasma Torch W03X0893-5R Pkt : 3

Gas Diffuser To Suit Lincoln LC25 Plasma Torch W03

Part No: W03X0893-5R

$180.00
(inc GST)
Plasma Circle Cutting Guide Kit Lincoln W0300699A

Plasma Circle Cutting Guide Kit Lincoln W0300699A

Part No: W0300699A

$259.00
(inc GST)

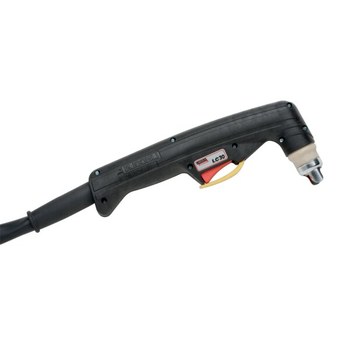

Lincoln Electric LC30 Replacement Torch 4 Metres 10 ft. W100000325
