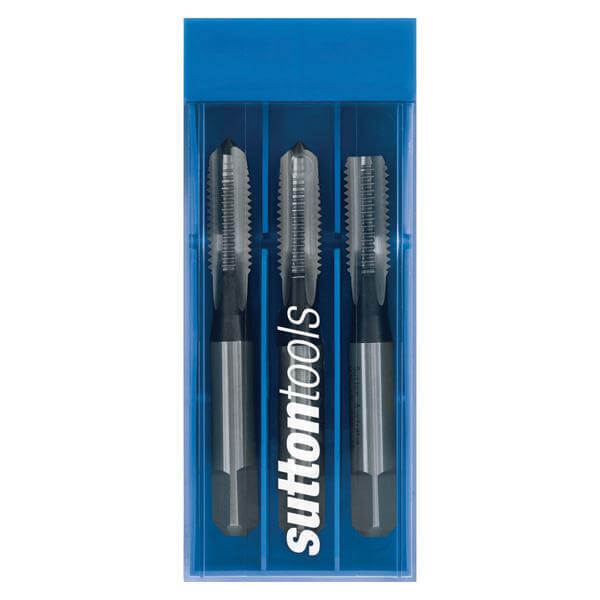

Tap T909 G 1/4-19 Set 3 Pce (BSPF) STR/FLT ISO2284 HSS Sutton T9091316

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 1xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: ISO529
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: Z3
• Lead: Set

Part Number/SKU: T9091316

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
