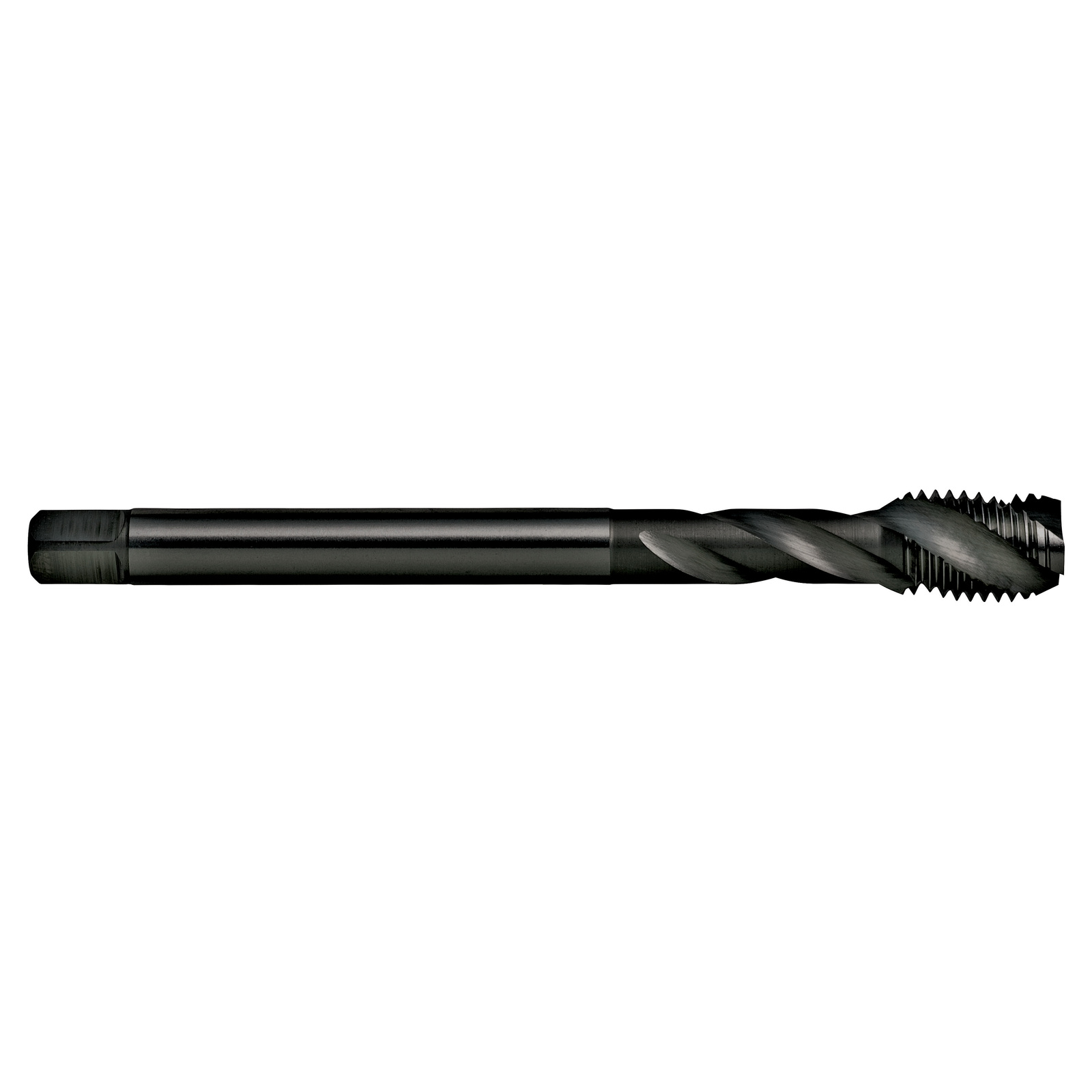

Tap T655 MF 10x0.75 6H Spiral R40 NH Din374 C PM-V3 Blu Sutton T6551004



Features

  • Suitable for harder short chipping materials up to 42 HRC
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: NH
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T6551004

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T6551004
Barcode # 9311963412788
Brand Sutton Tools
Shipping Weight 0.0310kg
Shipping Width 0.015m
Shipping Height 0.013m
Shipping Length 0.116m
Shipping Cubic 0.000023000m3
