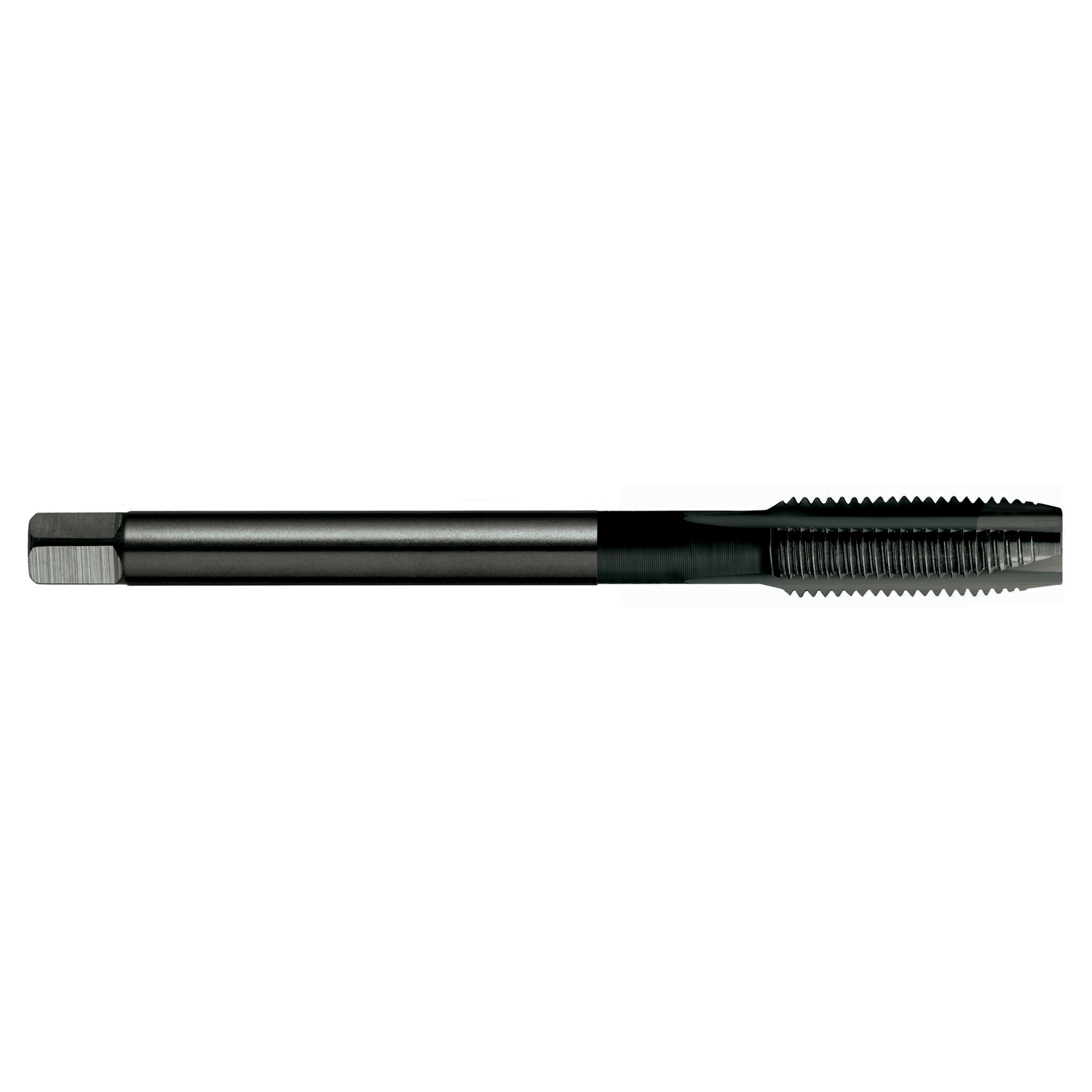

Tap T654 MF 12x1.25 6H Gun NH Din374 B PM-V3 Blu Sutton T6541206

Features

• Suitable for harder short chipping materials up to 42 HRC
• Through holes
• Suitable for machine operations
• Depths up to approx. 3 x d1

Specifications

• Designation: NH
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun) DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Part Number/SKU: T6541206

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
