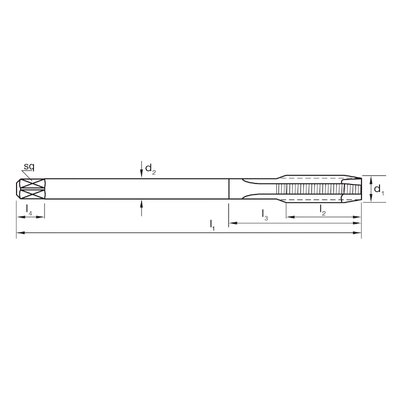

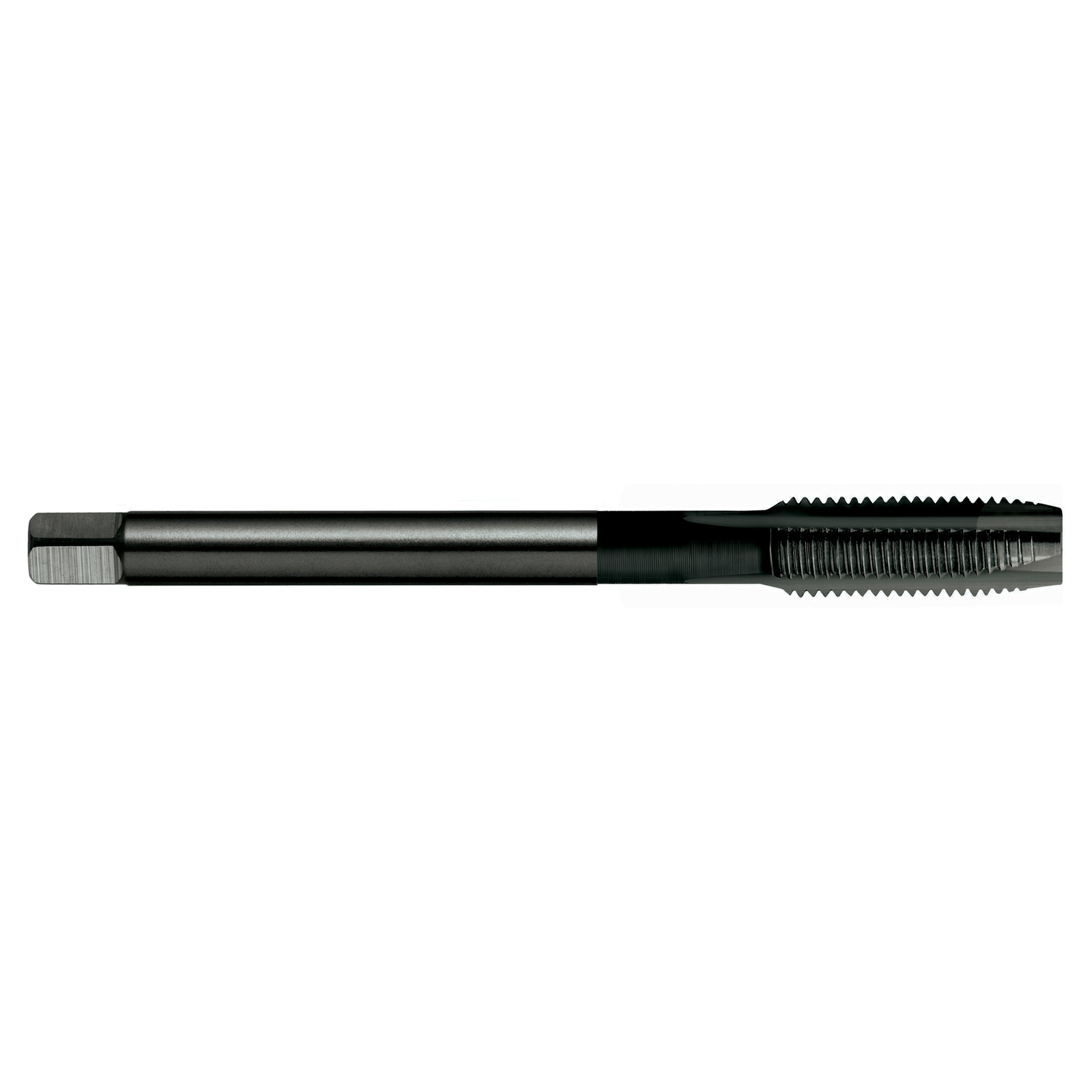

Tap T654 MF 10x1 6H Gun NH Din374 B PM-V3 Blu Sutton T6541005



Features

  • Suitable for harder short chipping materials up to 42 HRC
  • Through holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: NH
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun) DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T6541005

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T6541005
Barcode # 9311963412559
Brand Sutton Tools
Shipping Weight 0.0340kg
Shipping Width 0.014m
Shipping Height 0.014m
Shipping Length 0.116m
Shipping Cubic 0.000023000m3
