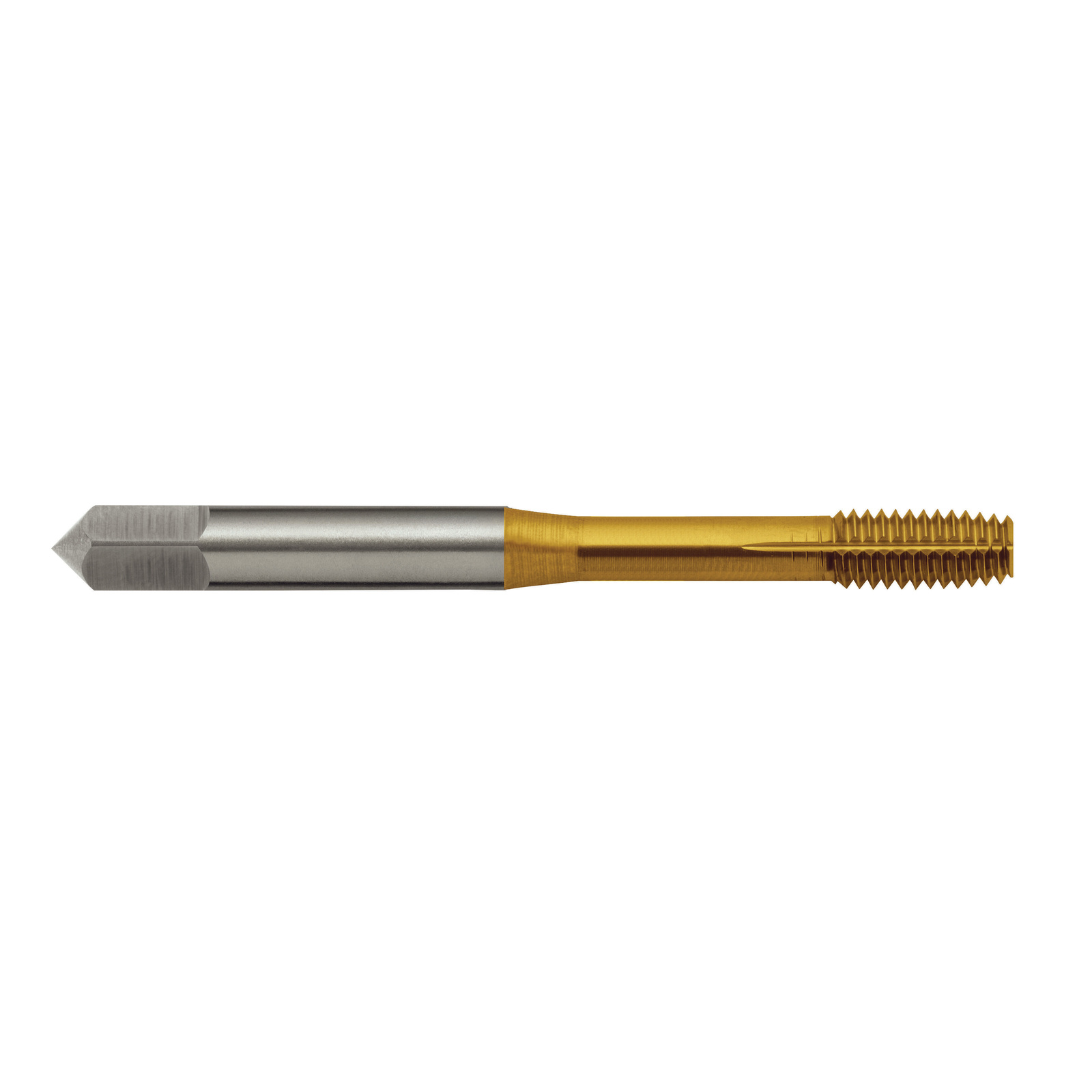

TAP T539 UNF 10-32 GH6 B FORMING JIS HSSE TiN T5390483

SuttonT539Thread Forming Tap Single Coolant - UNF - B Lead

• For cold forming of threads in materials with good flow characteristics.
• TiN-For steel materials up to 1000 N/mm2

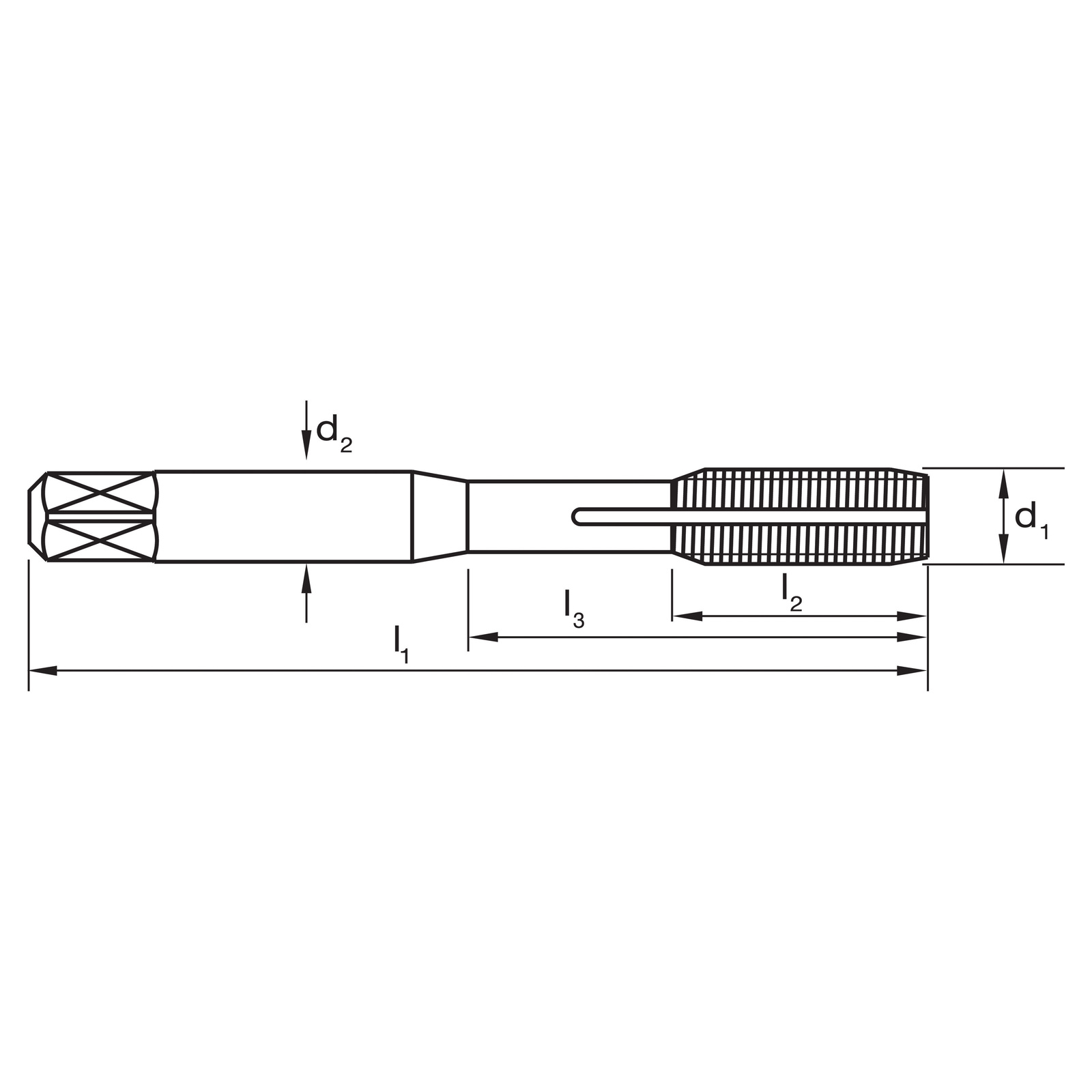

• Depths up to approx. 3 x d1

Specifications

• Group Code: T539
• Material: HSS Co.8
• Surface Finish: TiN
• Colour Ring & Application: Medium Production
• Geometry: 1 Coolant Groove #4+
• Lead: 2P & 4P

Part Number/SKU: T5390483

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
