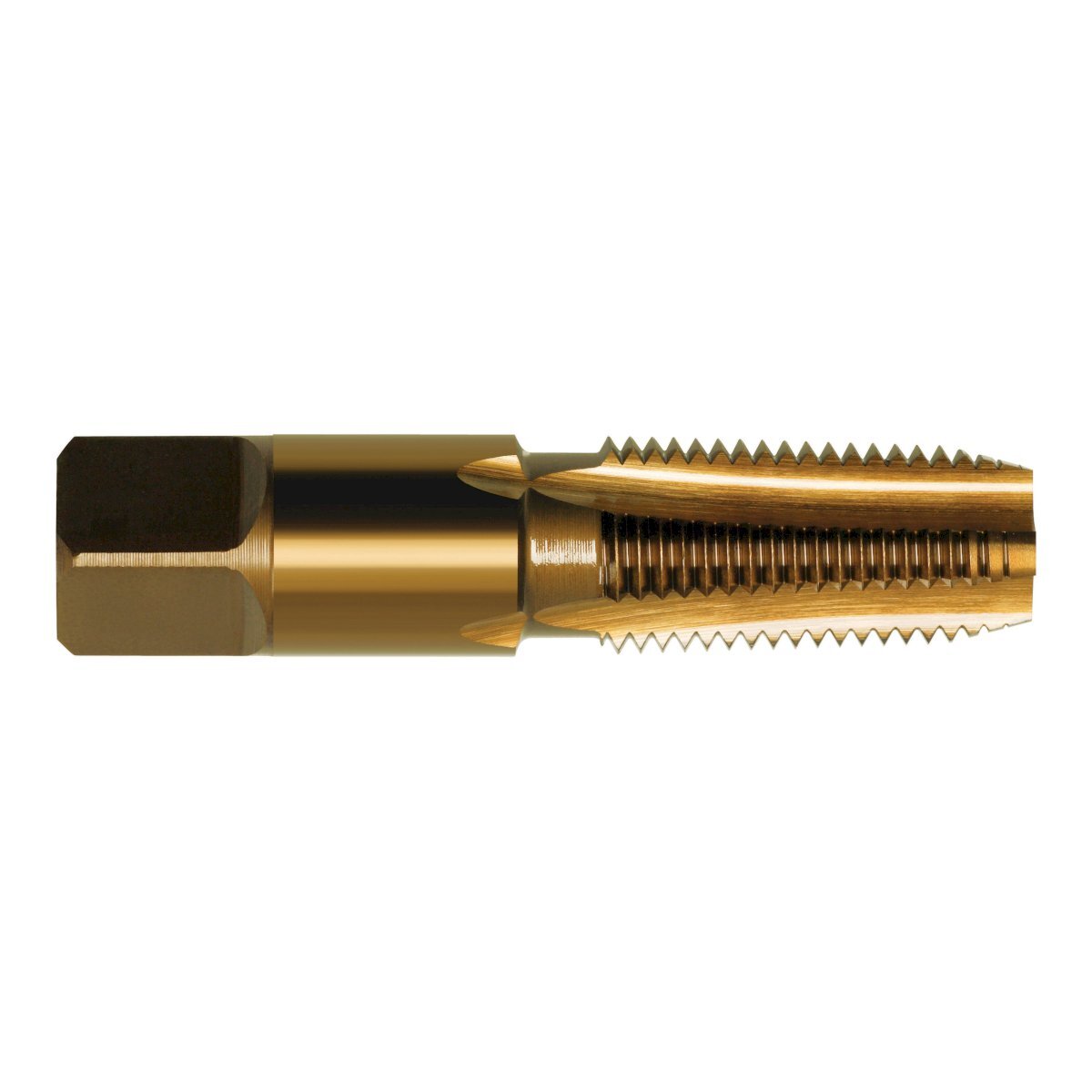

Tap T488 NPTF 1/2-14 STR/FLT Ansi B94-9 Bott HSS Sutton T4882134

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Suitable for both hand and machine operations
• Taper pipe reamer recommended prior to tapping

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Colour Temp
• Max Cut Depth: 1.5xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Taper
• Standard: ANSI B94-9
• Thread Form: National Pipe Taper 1:16-60° (NPTF)
• Nut Tolerance: ANSI B1.20.1
• Lead: Bottoming

Part Number/SKU: T4882134

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
