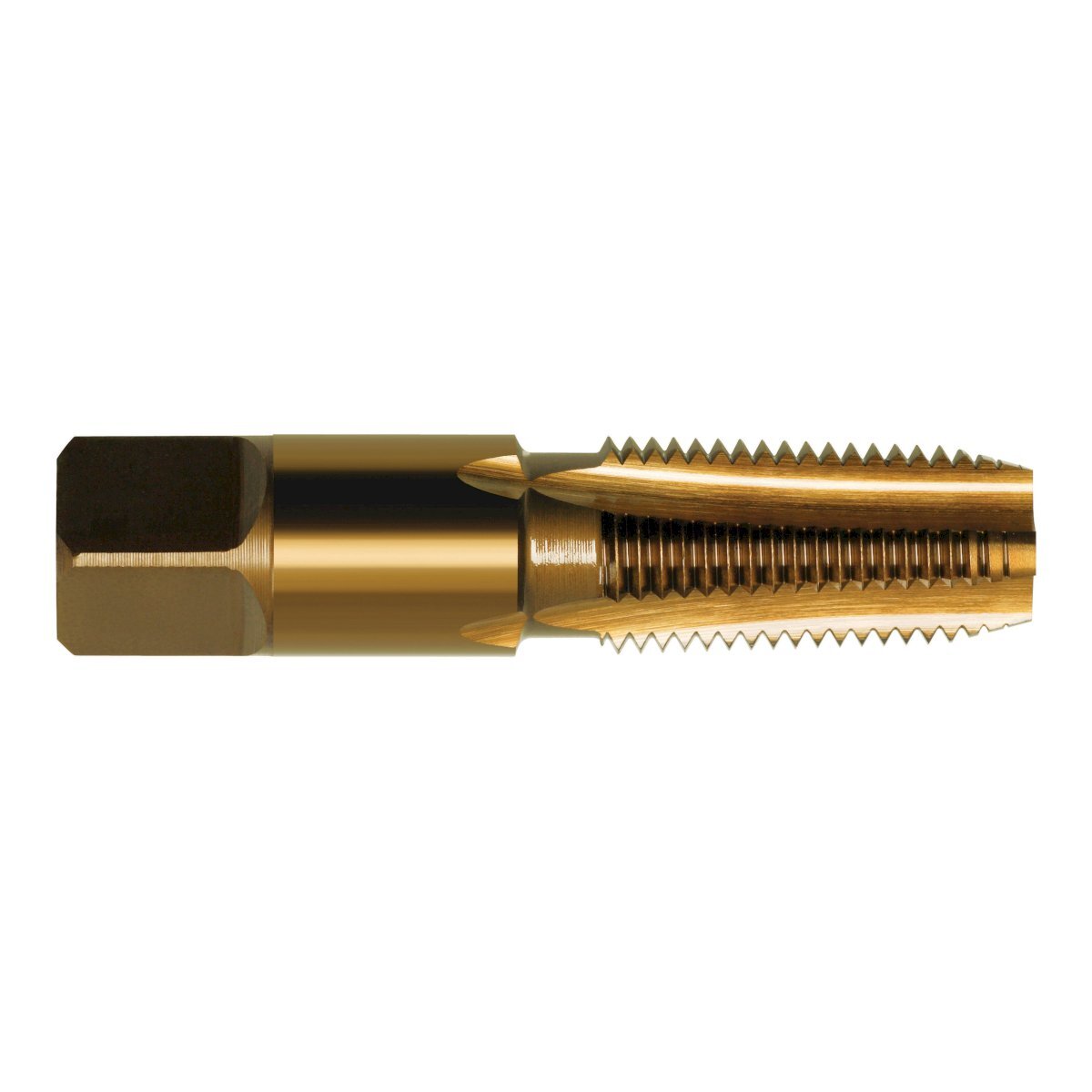

Tap T486 NPSF 1/8-27 GH3 Straight Ansi B94-9 Bott HSS Sutton T4861029

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Suitable for both hand and machine operations
• Taper pipe reamer recommended prior to tapping

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Colour Temperature
• Max Cut Depth: 1.5xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Taper
• Standard: ANSI B94-9
• Thread Form: National Pipe Straight 60° (NPSF)
• Nut Tolerance: GH4
• Lead: Bottoming

Part Number/SKU: T4861029

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
