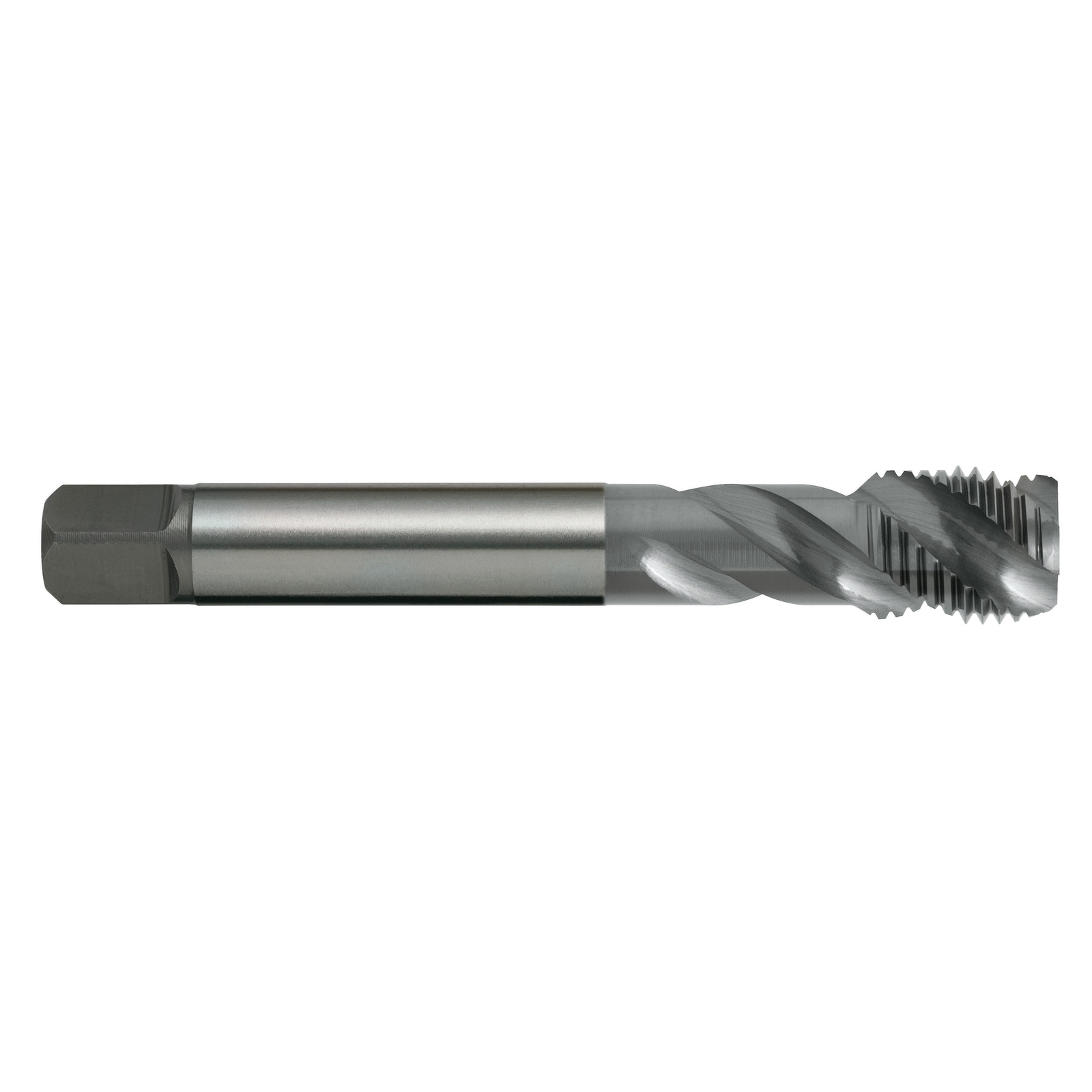

Tap T485 G 3/4-14 Z3 (BSPF) Spiral R40 C HSS Sutton T4852644

Features

• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: ISO529
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: Z3
• Lead: Form C / 3 x P

Part Number/SKU: T4852644

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
