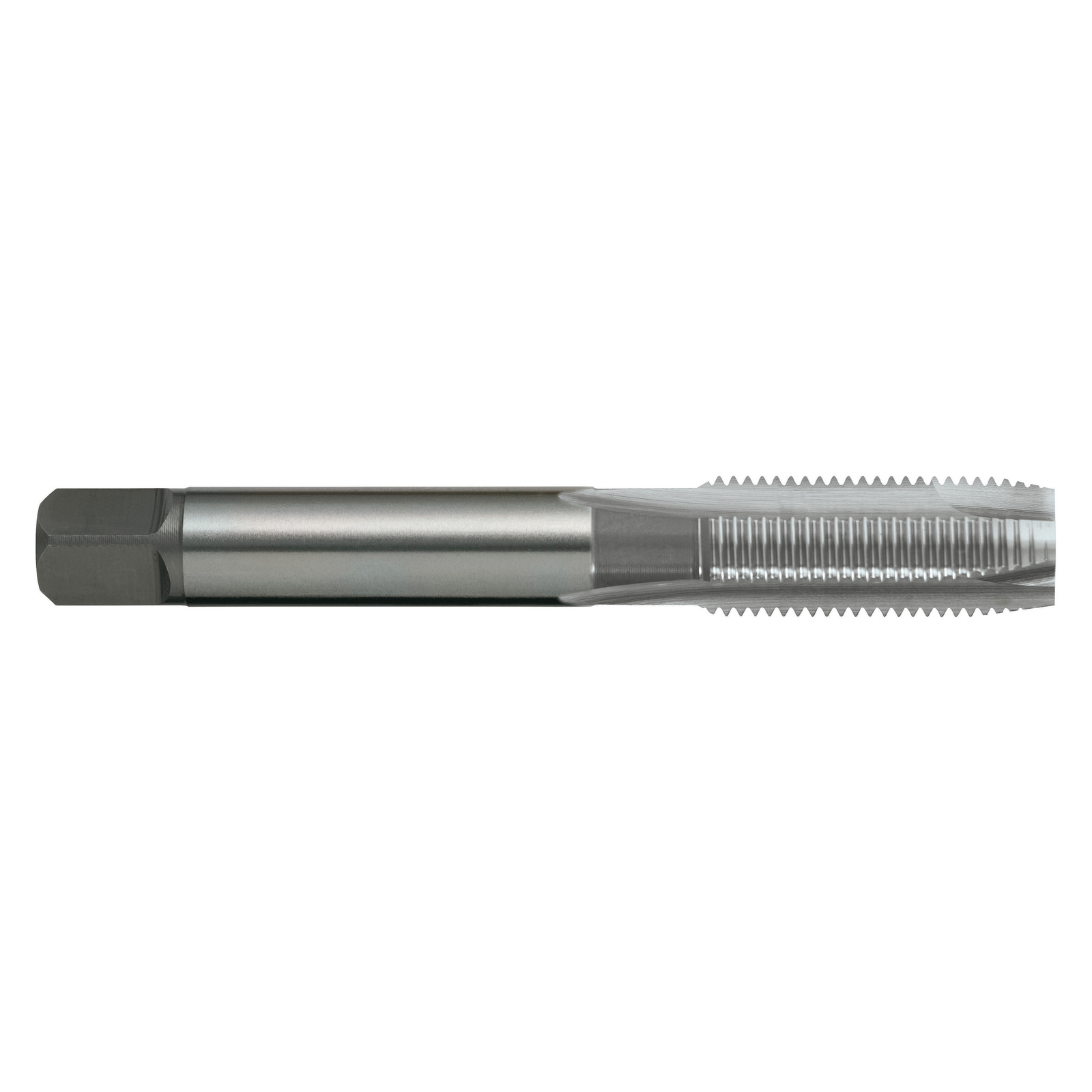

Tap T484 G 1/2-14 Z3 (BSPF) Gun B HSS Sutton T4842096

Features

• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 3xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Spiral Point (Gun)
• Standard: ISO529
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: Z3
• Lead: Form B / 4.5 x P

Part Number/SKU: T4842096
