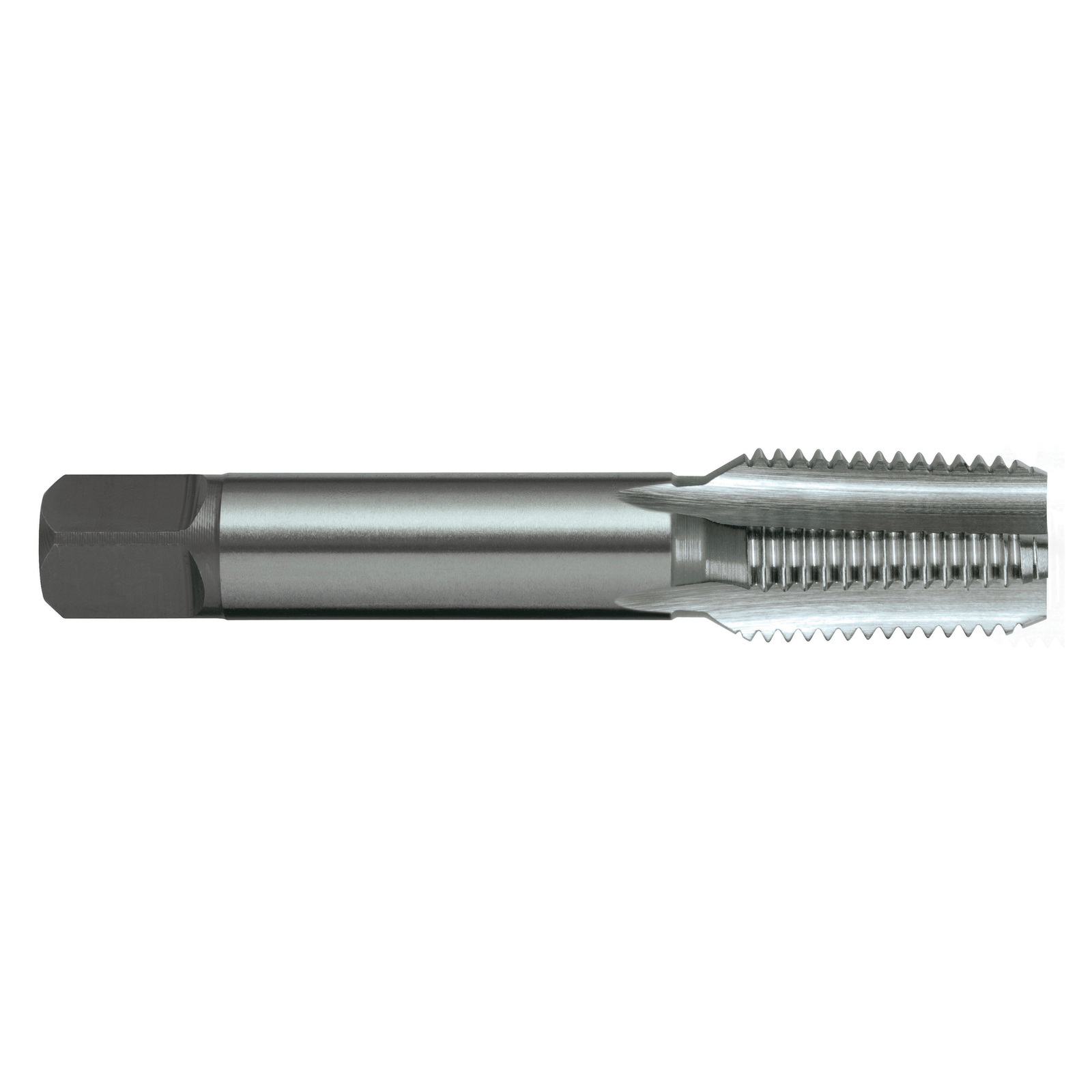

Tap T480 G 3/4-14 Z3 (BSPF) Straight ISO2284 Inter HSS Sutton T4802644

Features

• General Purpose use for materials up to approx. 1000 N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 1xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: ISO2284
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: Z3
• Lead: Bottoming

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T4802644
