Tap T477 Rp 1/8-28 Z3 (BSPPL) Straight ISO2284 Bott HSS Sutton T4770973

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 1xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: ISO2284
• Thread Form: ISO Rc Taper Series 1:16 - 55° (BSPT)
• Nut Tolerance: To Suit
• Lead: Bottoming

Part Number/SKU: T4770973

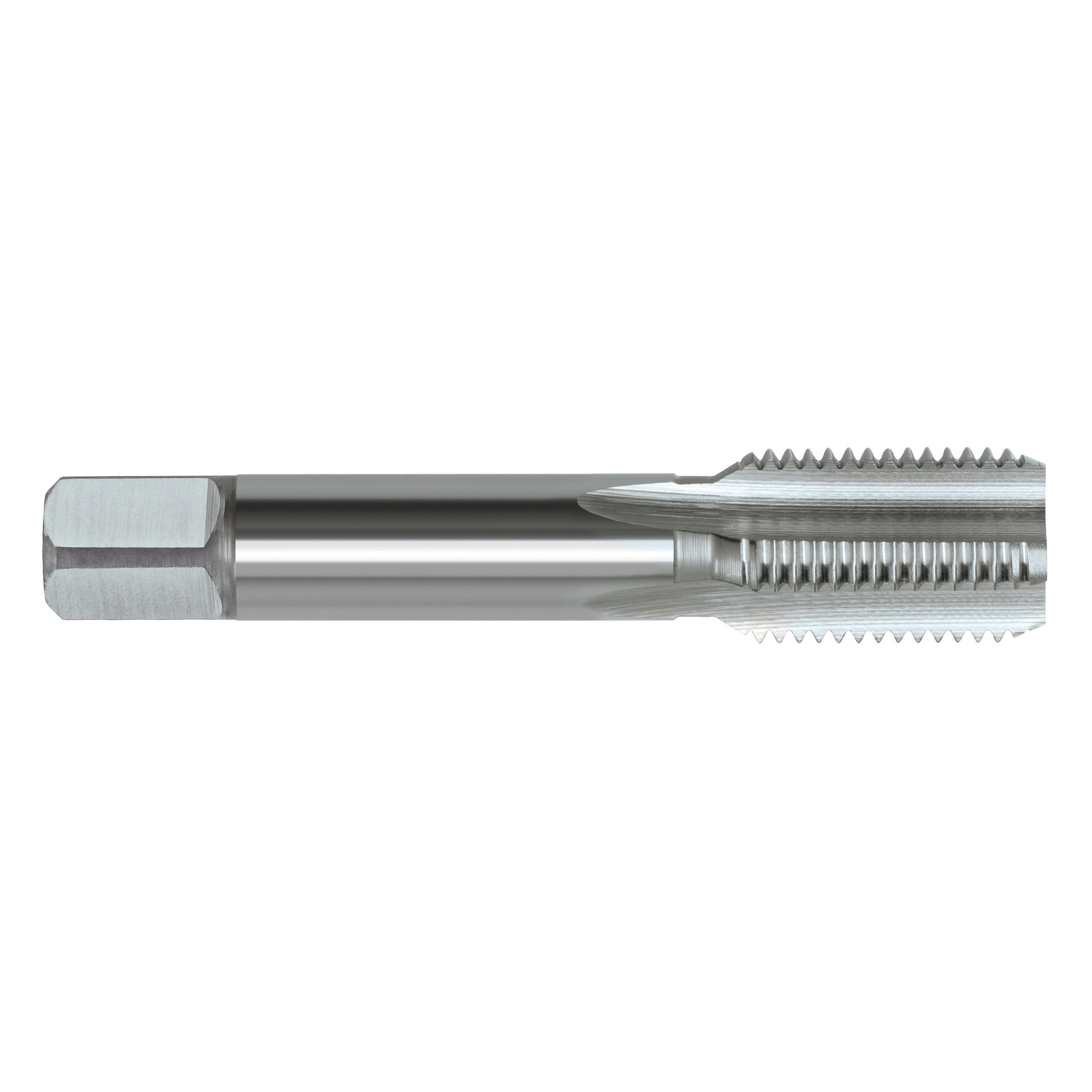

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
