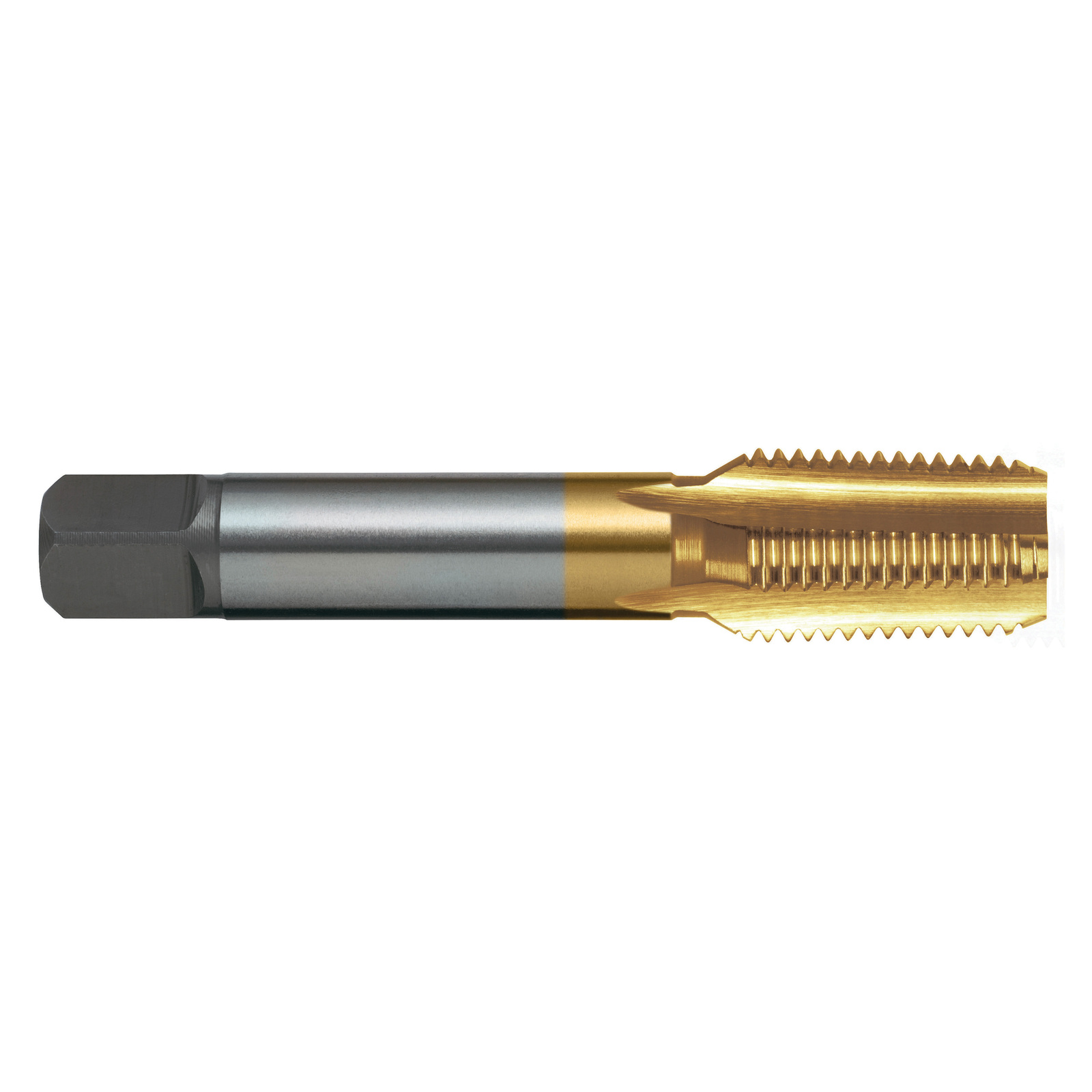

TAP T476 Rc 3/8-19 Z3 (BSPT) STR/FLT ISO2284 Bott HSS TiN T4761666

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 1xD

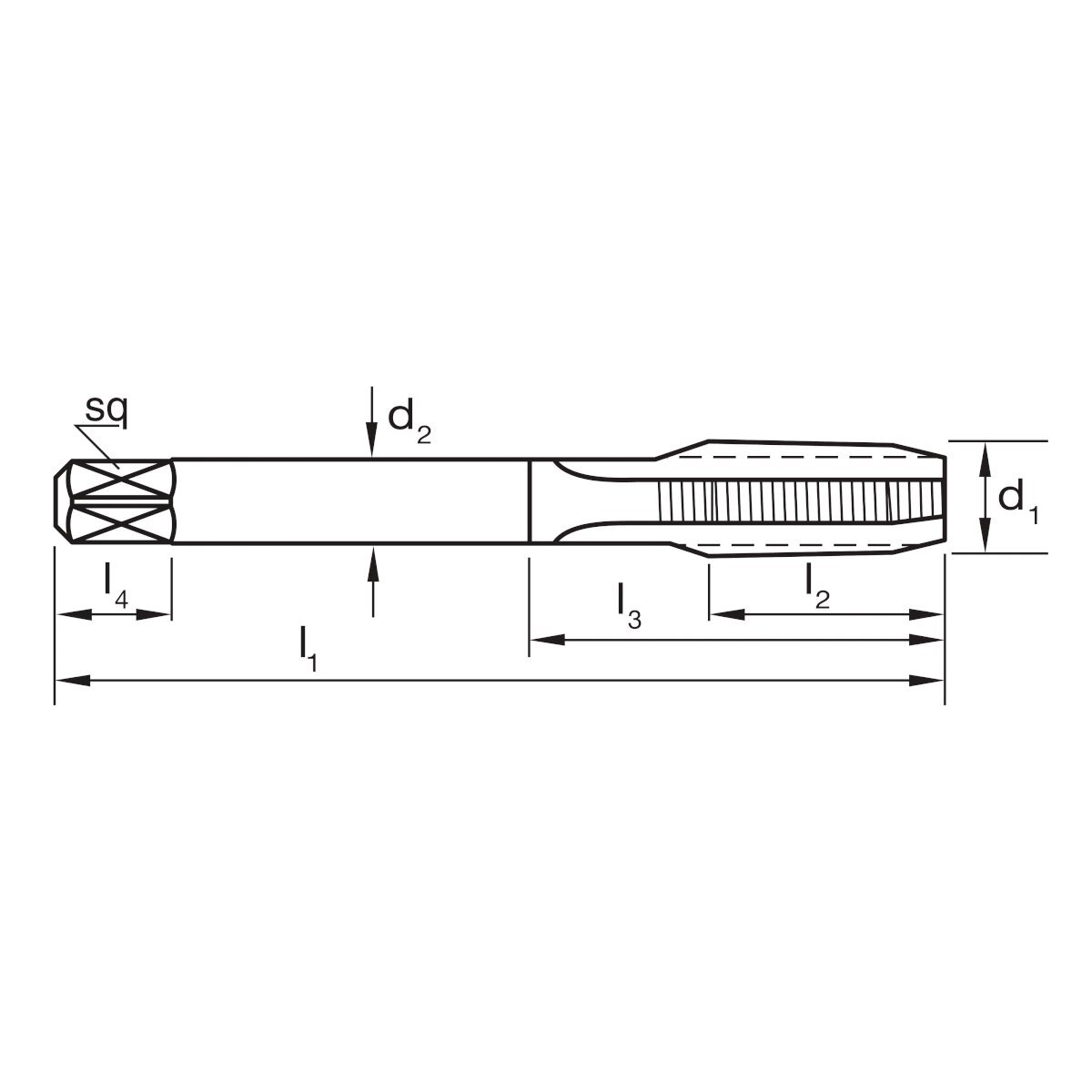

• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: ISO2284
• Thread Form: ISO Rc Taper Series 1:16 - 55° (BSPT)
• Nut Tolerance: To Suit
• Lead: Bottoming

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Part Number/SKU: T4761666
