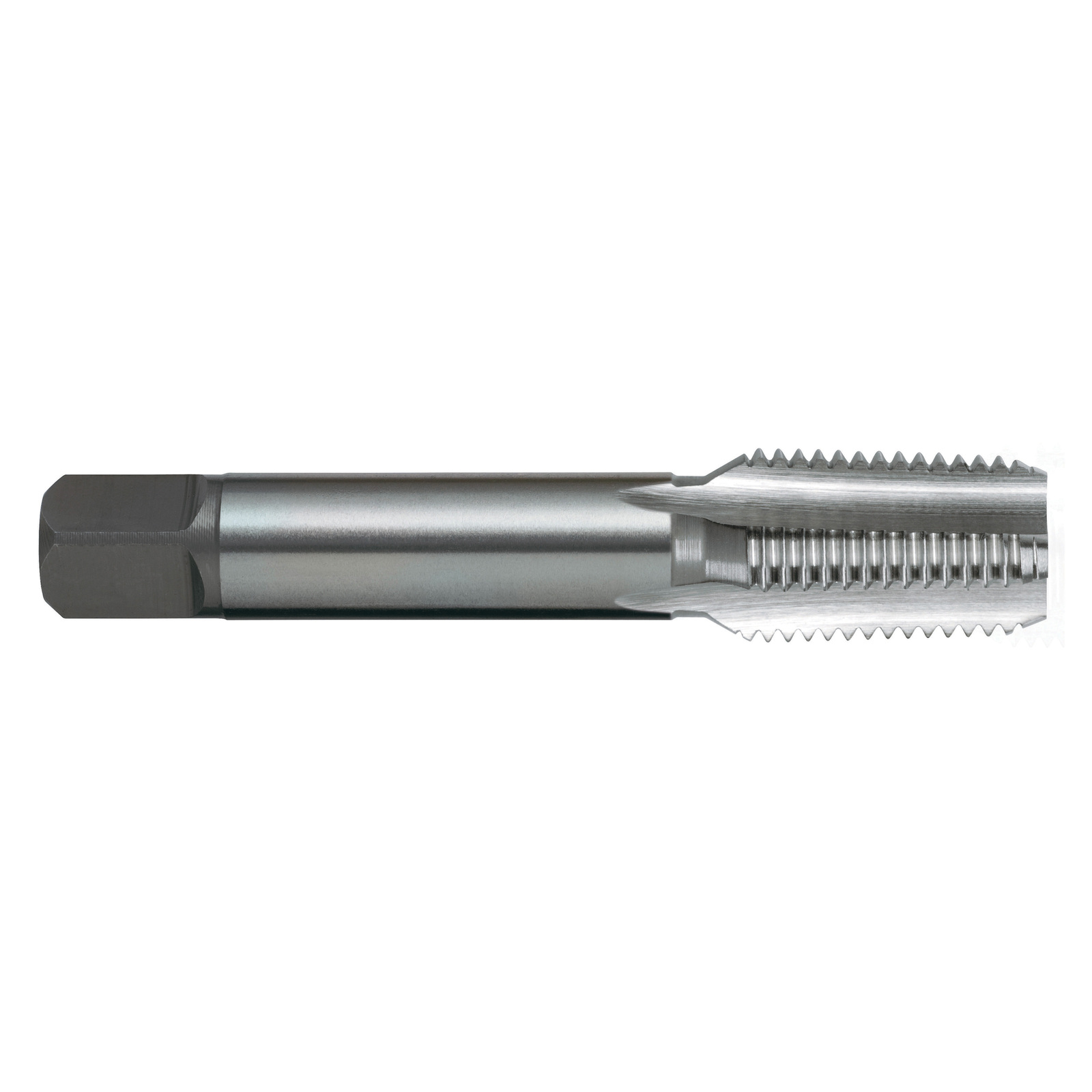

Tap T475 Rc 1/8-28 Z3 (BSPT) STR/FLT ISO2284 Bott HSS Sutton T4750973



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Taper pipe reamer recommended prior to tapping Rc (BSPT) thread forms

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD

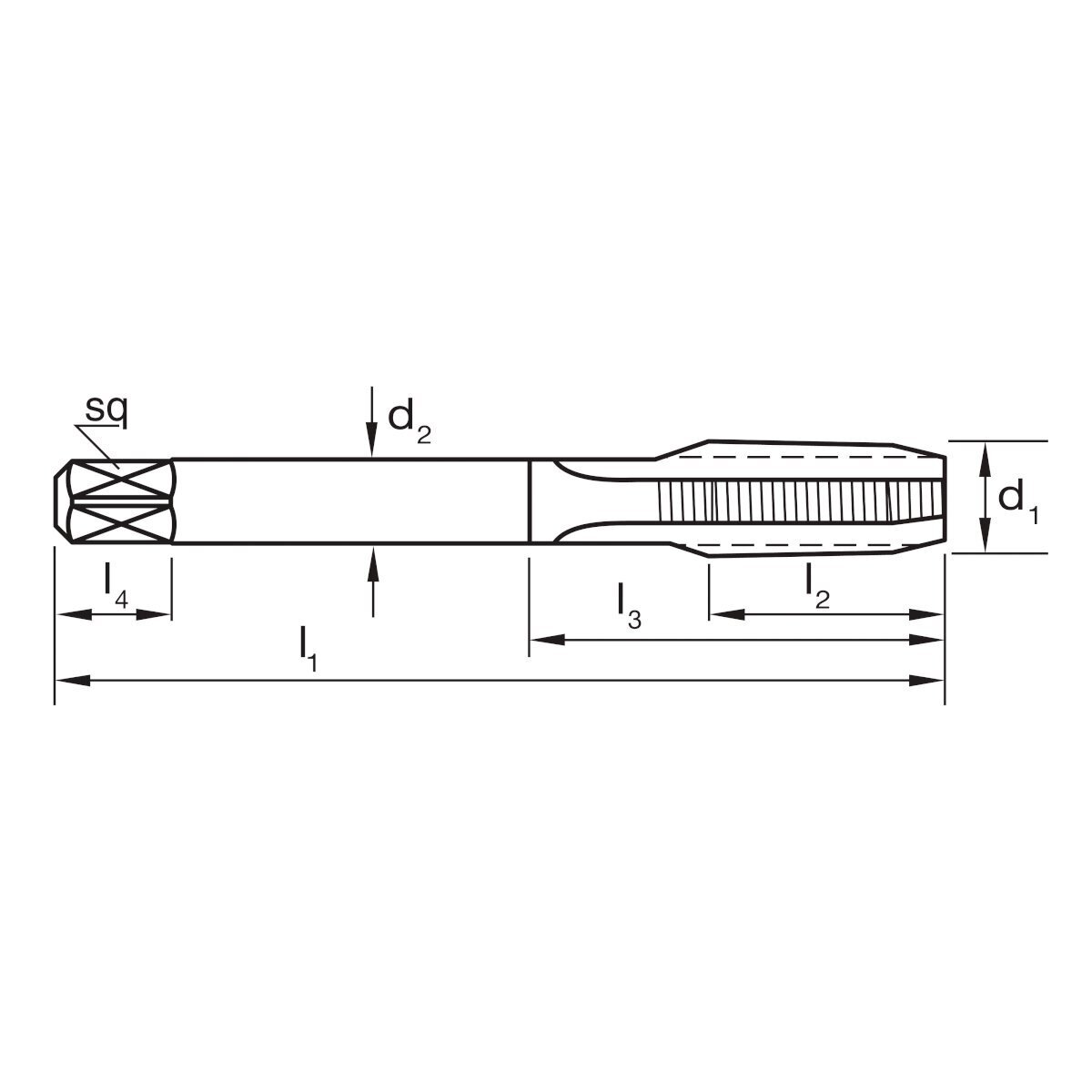

  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO Rc Taper Series 1:16 - 55° (BSPT)
  • Nut Tolerance: To Suit
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T4750973

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4750973
Barcode # 9311963108452
Brand Sutton Tools
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.200m
Shipping Length 0.150m
Shipping Cubic 0.004500000m3
Unit Of Measure ea
