Tap T471 BA 9 Z3 STRAIGHT ISO529 Bott HSS Sutton T4710190



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: 47.5° (BA)
  • Nut Tolerance: Z3 Medium
  • Lead: Bottoming

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T4710190

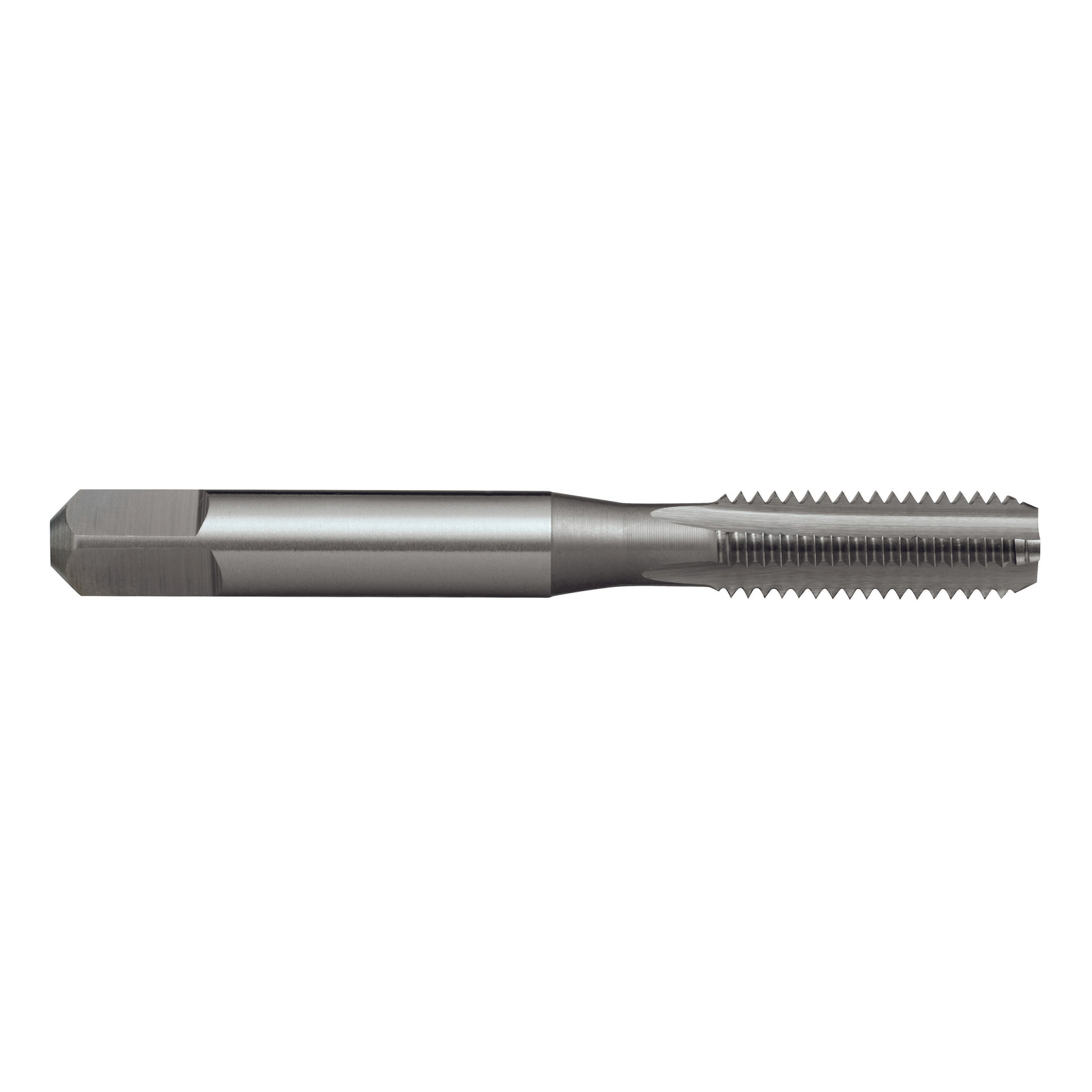

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4710190
Barcode # 9311963043524
Brand Sutton Tools
Shipping Weight 0.0030kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.064m
Shipping Cubic 0.000006000m3
