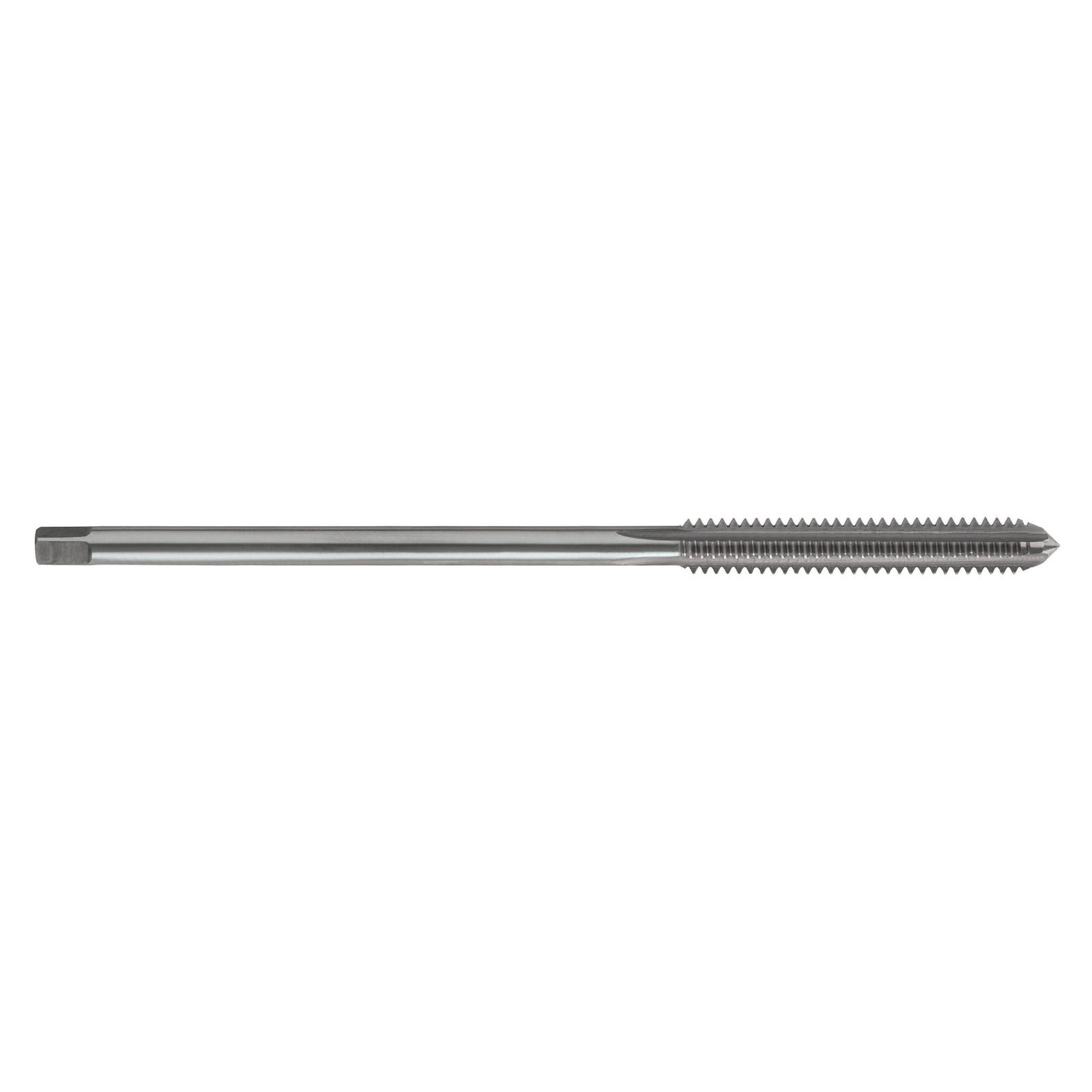

Tap T465 BSW 1-8 Z3 Straight M/C Nut BS949 Bott HSS Sutton T4652540

Features

• Suited to long reach applications
• Suitable for materials up to 1000N/mm2
• Through holes
• Depths up to approx. 2 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 2xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: BS949
• Thread Form: British Standard Whitworth 55° (BSW)
• Nut Tolerance: Z3 Medium
• Lead: Bottoming

Part Number/SKU: T4652540
