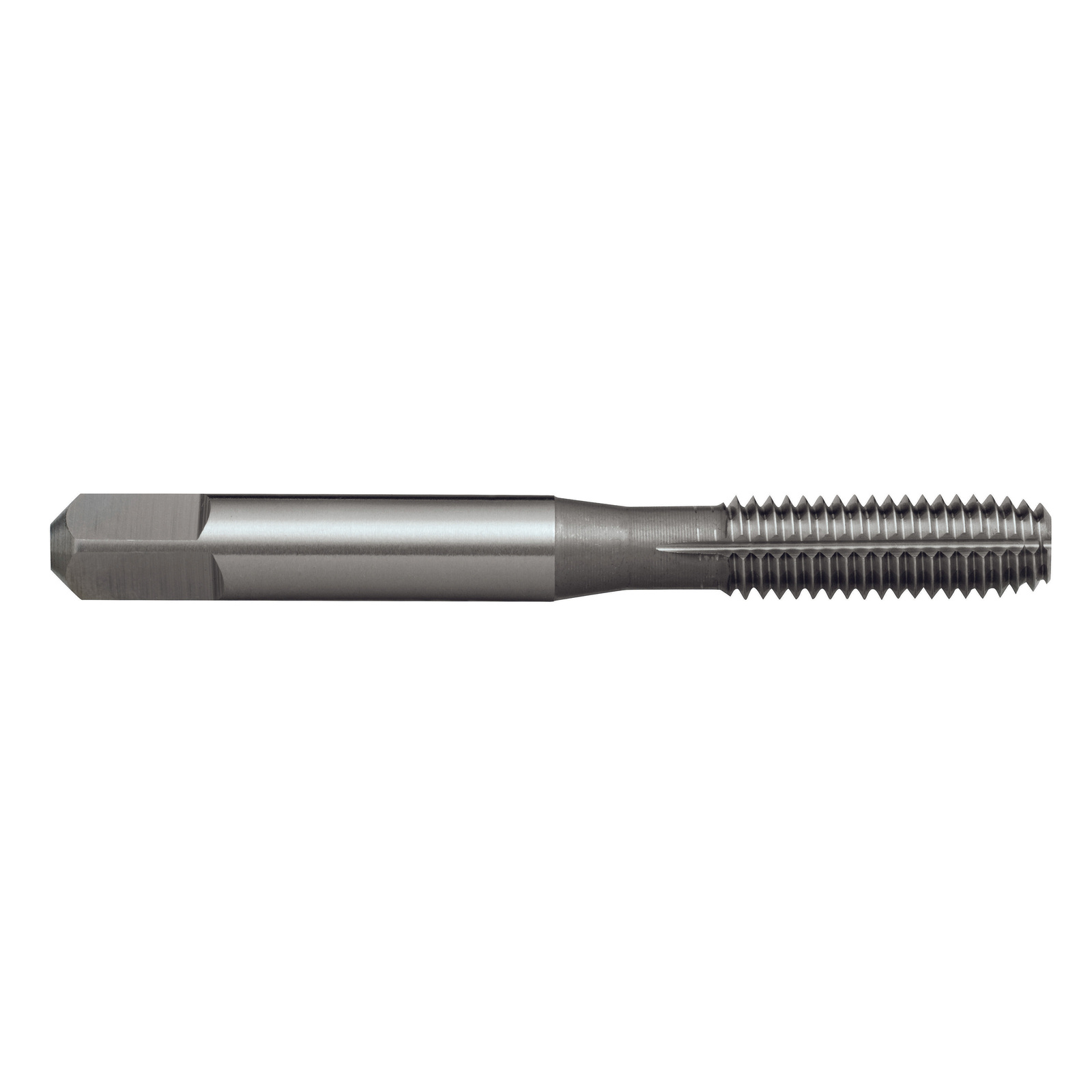

Tap T463 BSW 5/32-32 Z3 Forming ISO529 Bott HSSE Sutton T4630397



Features

  • For cold forming of threads in materials with good flow characteristics
  • Through or Blind holes
  • Depths up to approx. 1.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Single Coolant Groove
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Form C / 3 x P

Part Number/SKU: T4630397

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4630397
Barcode # 9311963008578
Brand Sutton Tools
Shipping Weight 0.0060kg
Shipping Width 0.010m
Shipping Height 0.008m
Shipping Length 0.065m
Shipping Cubic 0.000005000m3
