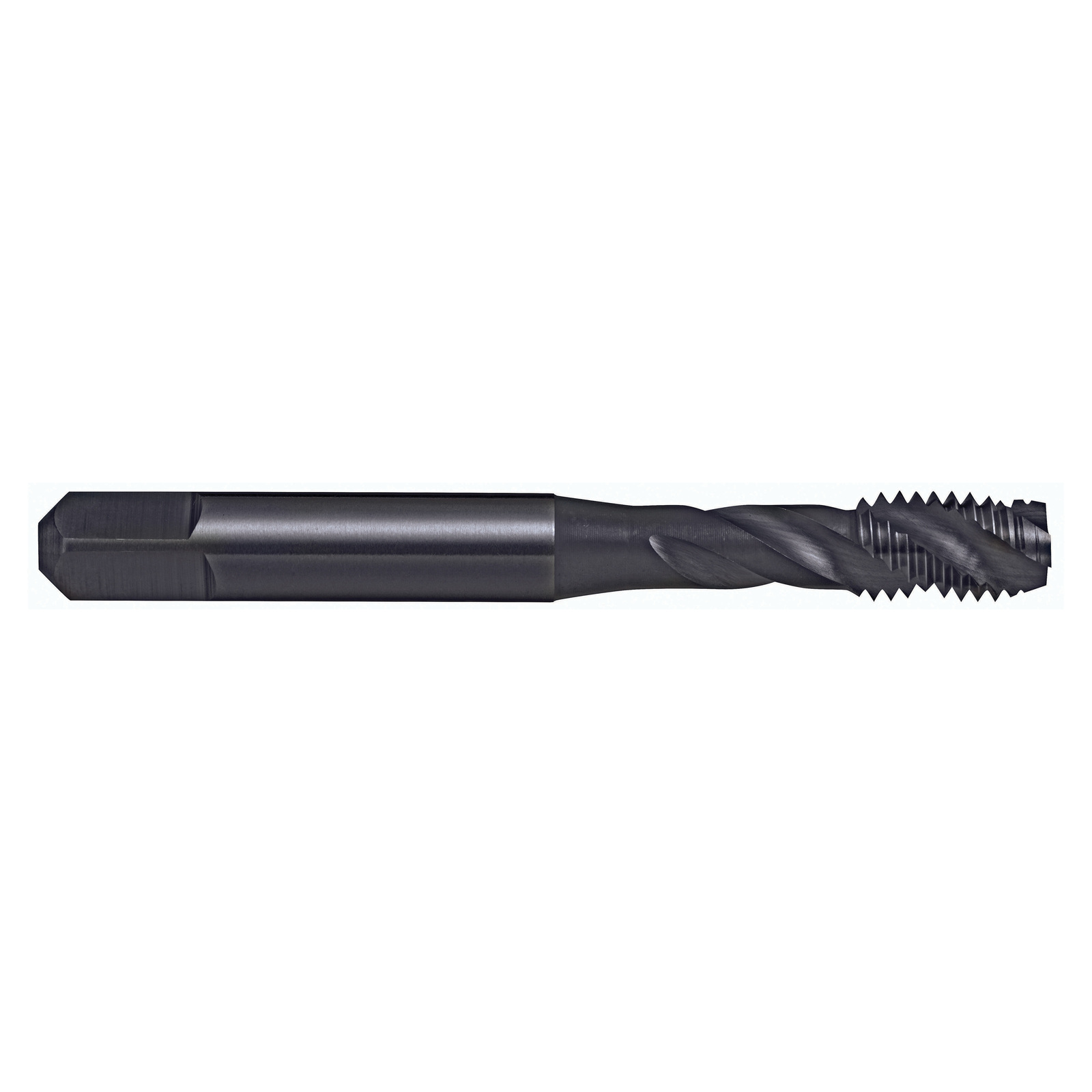

Tap T461 BSW 5/8-11 Z3 Spiral ISO529 Bott HSSE Blu Sutton T4611588

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Blind holes
• Depths up to approx. 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Steam Oxide (Blue)
• Max Cut Depth: 2.5xD
• Shank Form: Reinforced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: ISO529
• Thread Form: British Standard Whitworth 55° (BSW)
• Nut Tolerance: Z3 Medium
• Lead: Form C / 3 x P

Part Number/SKU: T4611588

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
