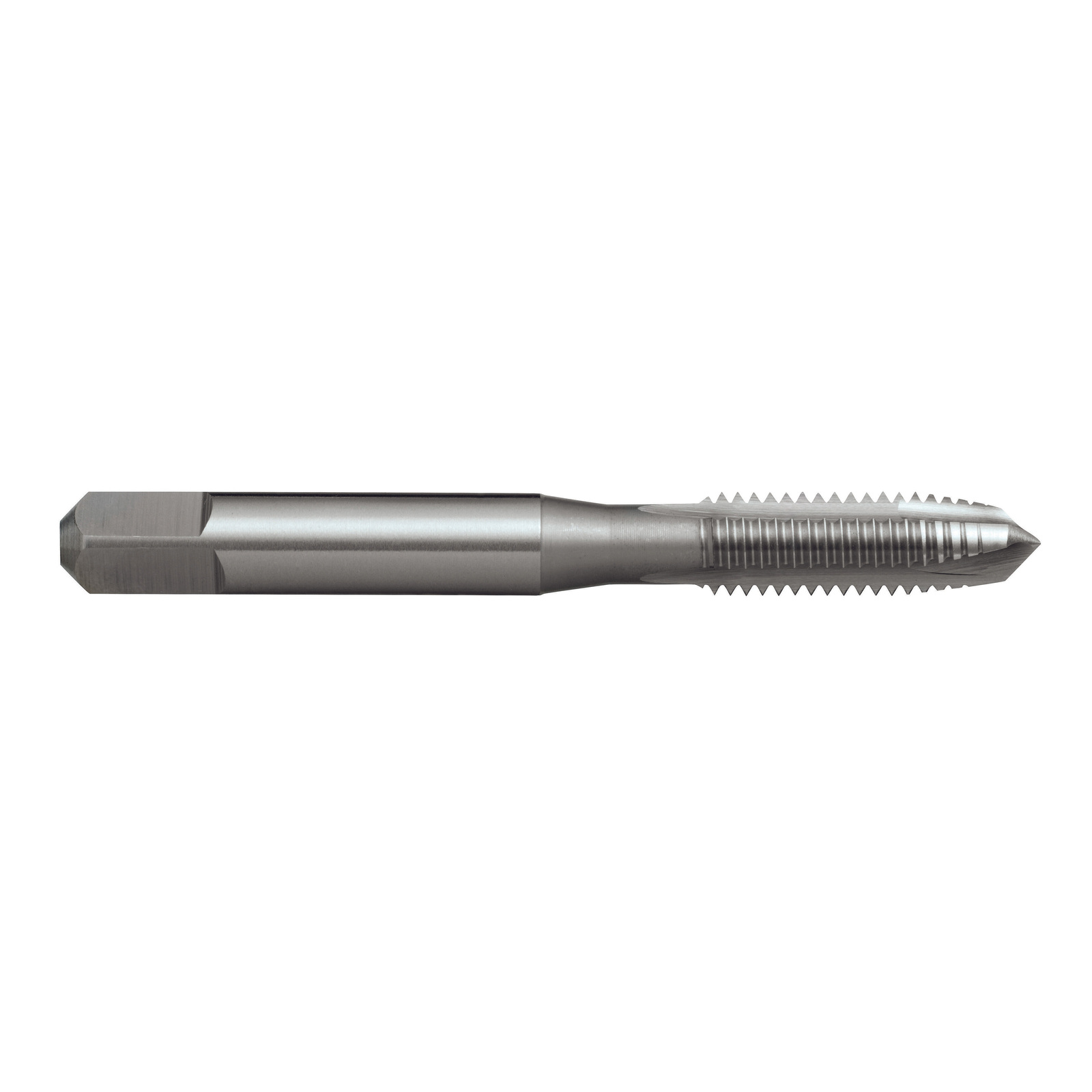

Tap T439 UNF 1/2-20 2B Gun ISO529 Inter HSSE Sutton T4391270



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Part Number/SKU: T4391270

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4391270
Barcode # 9311963072630
Brand Sutton Tools
Shipping Weight 0.0520kg
Shipping Width 0.015m
Shipping Height 0.015m
Shipping Length 0.102m
Shipping Cubic 0.000023000m3
