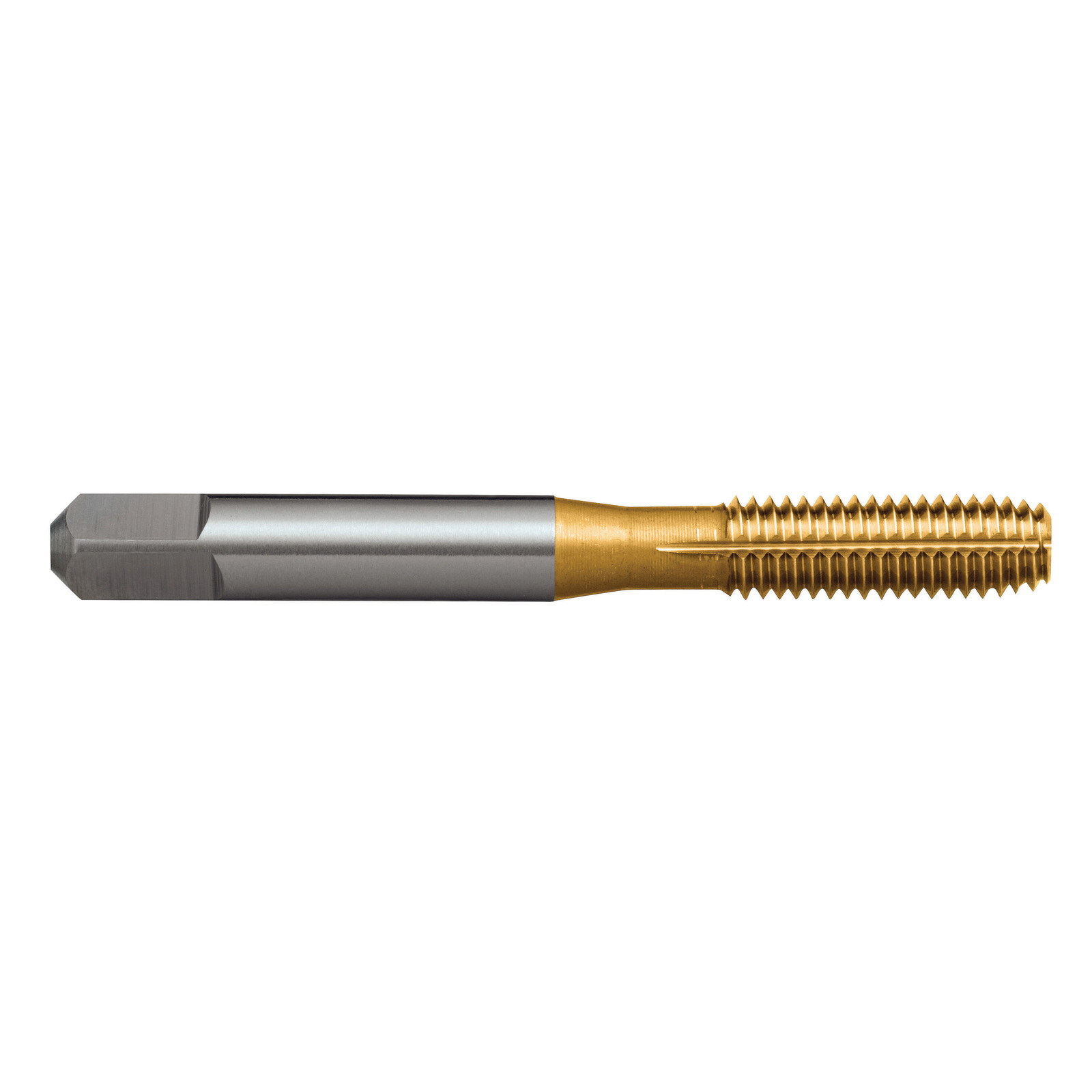

TAP T429 UNC 10-24 2B FORMING ISO529 Bott HSSE TiN T4290483



Features

  • For cold forming of threads in materials with good flow characteristics
  • Through or Blind holes
  • Depths up to approx. 1.5
  • TiN For longer tool life

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 1.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - Single Coolant Groove
  • Standard: ISO529
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Part Number/SKU: T4290483

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4290483
Barcode # 9311963066950
Brand Sutton Tools
Shipping Weight 0.0100kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.081m
Shipping Cubic 0.000008000m3
