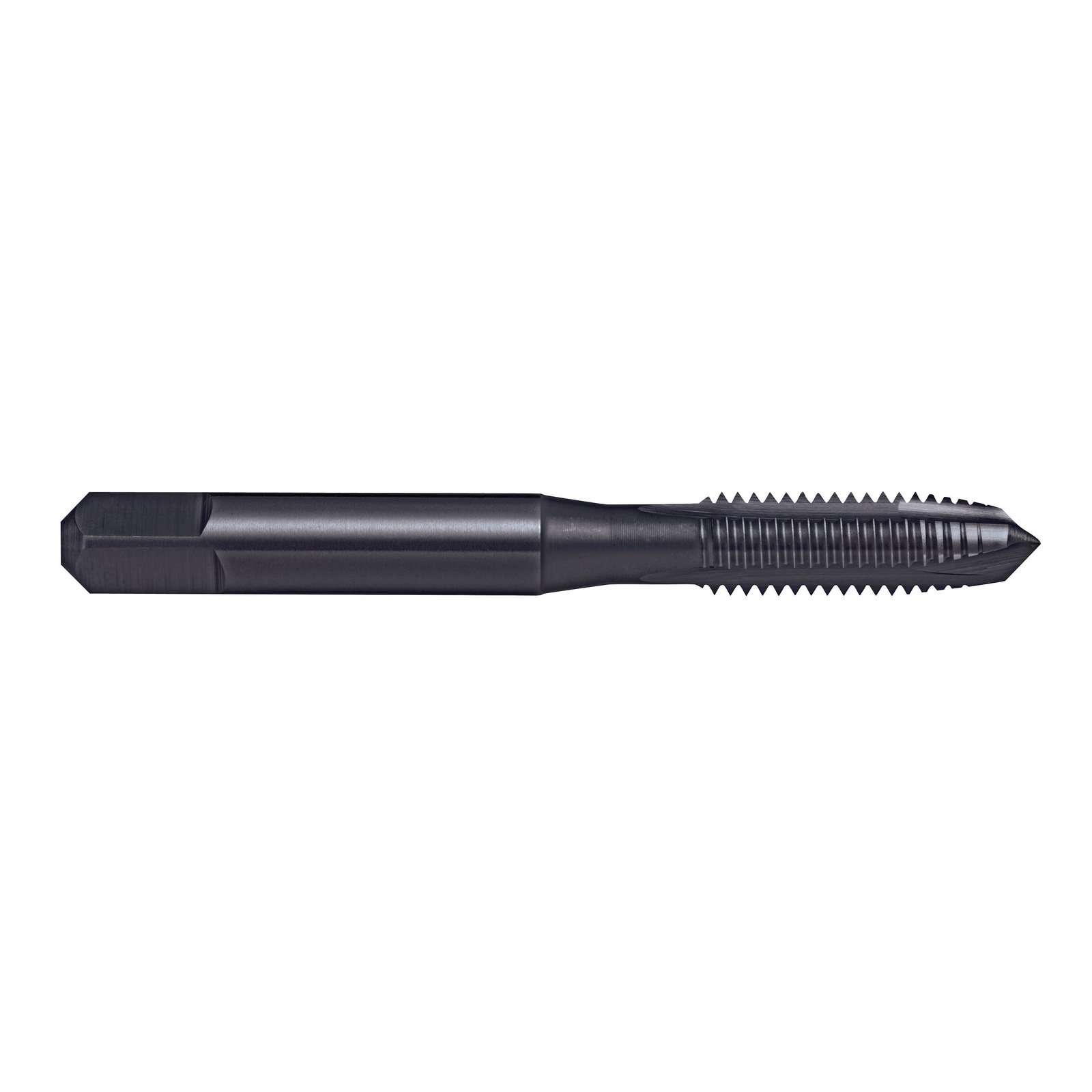

Tap T423 UNC 1-8 2B Gun N ISO529 Inter HSS BLU Sutton T4232540



Features

  • Form B / 4.5 x P General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T4232540

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4232540
Barcode # 9311963123585
Brand Sutton Tools
Shipping Weight 0.2850kg
Shipping Width 0.029m
Shipping Height 0.029m
Shipping Length 0.135m
Shipping Cubic 0.000113535m3
