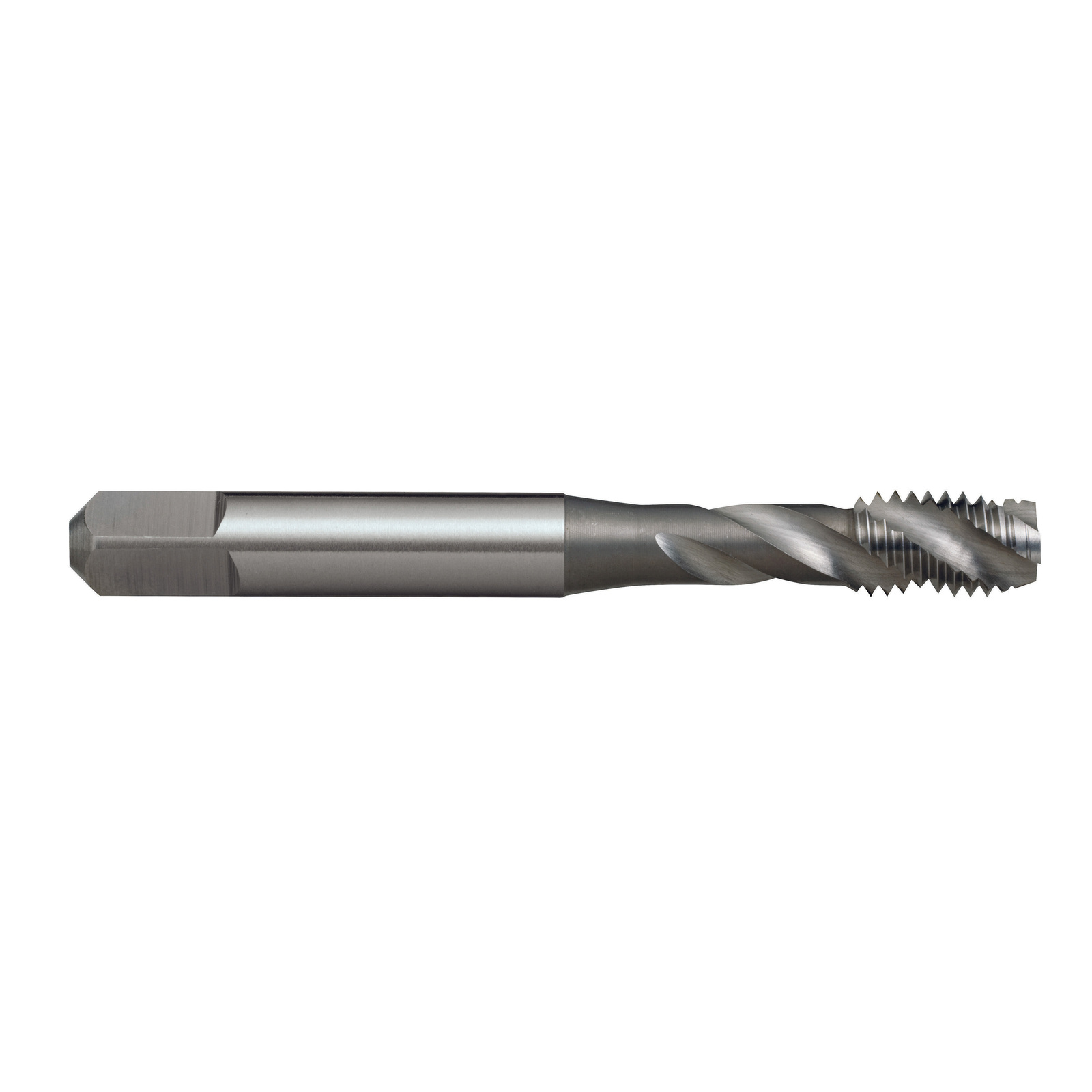

Tap T409 MF 20x1.5 6H Spiral N ISO529 Bott HSSE Sutton T4092007



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T4092007

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4092007
Barcode # 9311963347929
Brand Sutton Tools
Shipping Weight 0.1320kg
Shipping Width 0.024m
Shipping Height 0.022m
Shipping Length 0.114m
Shipping Cubic 0.000060000m3
