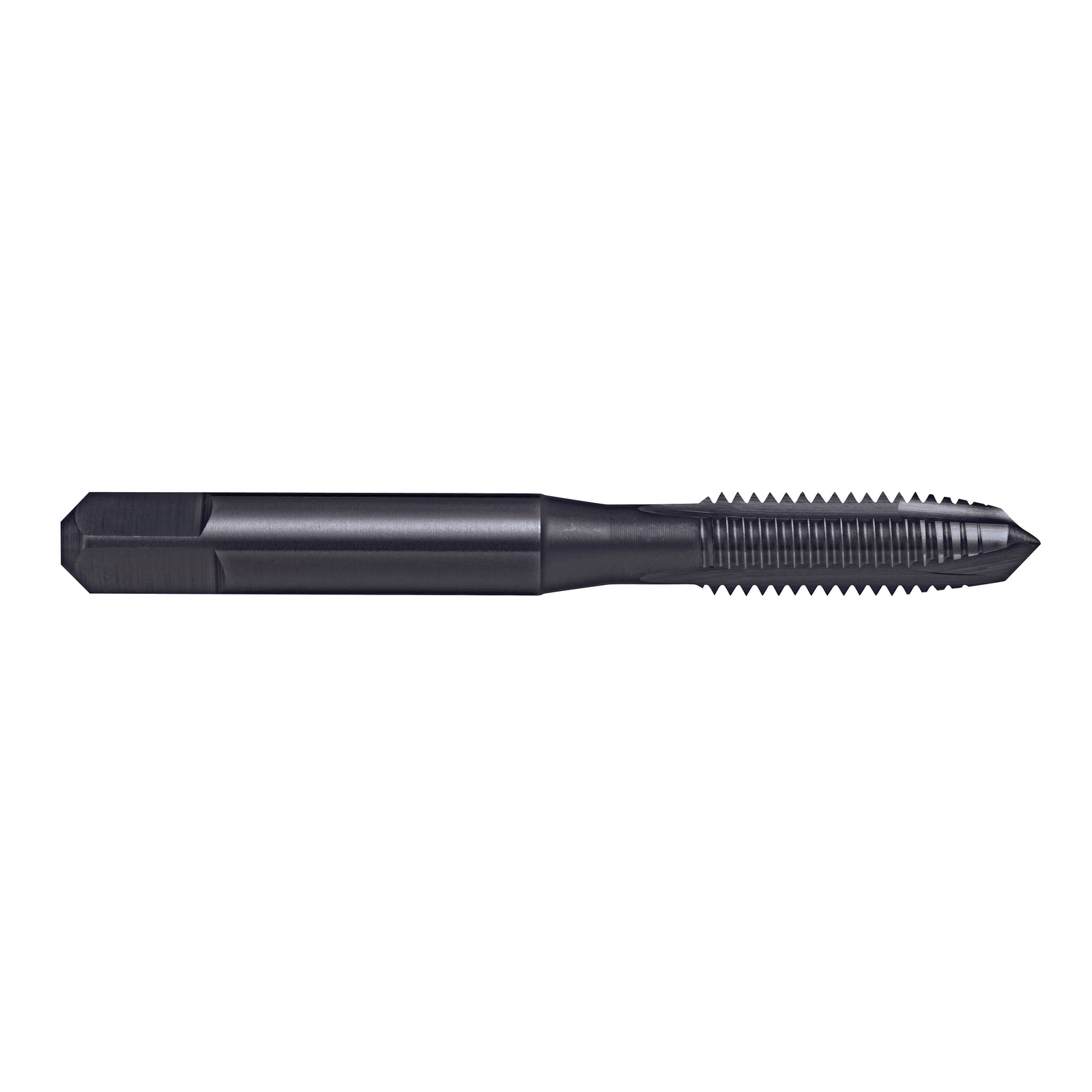

Tap T407 MF 5x0.5 6H Gun N ISO529 Inter HSSE Blu Sutton T4070503



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials) Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Part Number/SKU: T4070503

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T4070503
Barcode # 9311963347950
Brand Sutton Tools
Shipping Weight 0.0100kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.081m
Shipping Cubic 0.000008000m3
