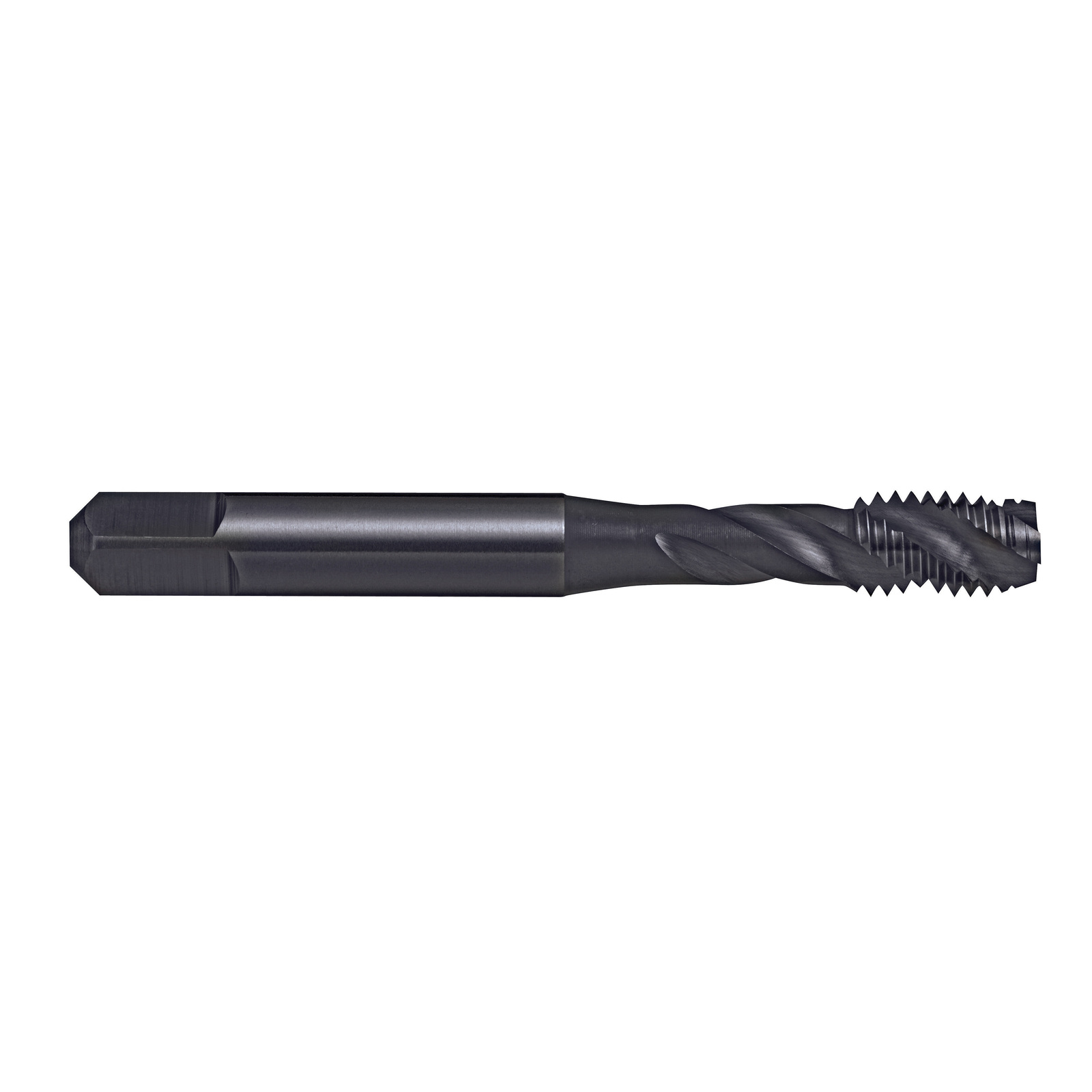

Tap T396 M 22x2.5 6H Spiral N ISO529 Bott HSSE BLU Sutton T3962200



Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to approx. 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 2.5xD

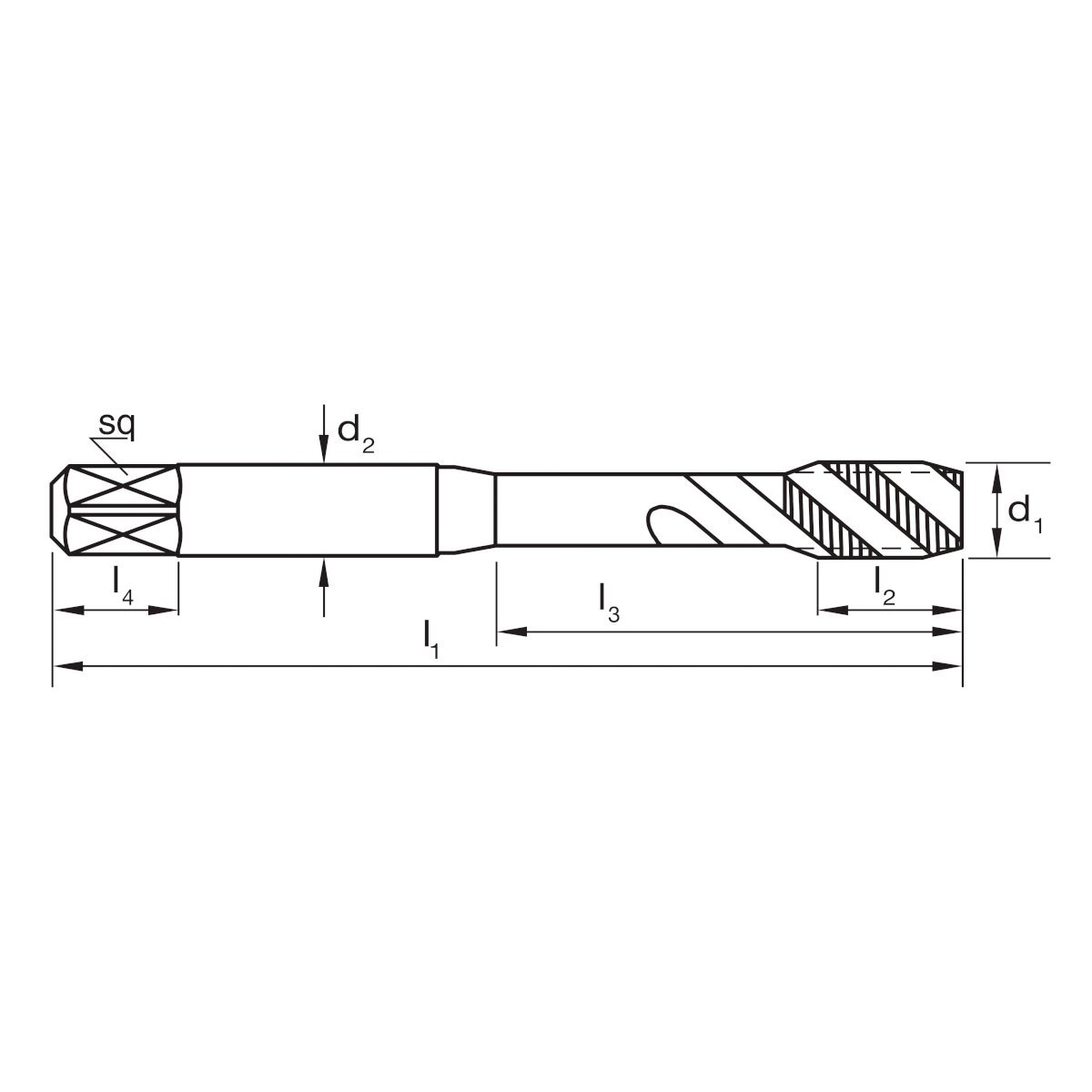

  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T3962200

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3962200
Barcode # 9311963634722
Brand Sutton Tools
Shipping Weight 0.1980kg
Shipping Width 0.029m
Shipping Height 0.031m
Shipping Length 0.126m
Shipping Cubic 0.000113274m3
