Tap T394 M 4x0.7 6H Gun N ISO529 Inter HSSE BLU Sutton T3940400



Spiral Point Gun Tap - M - Intermediate Blu, HSSE V3

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N
  • Material: HSSE V3
  • Finish: Blu
  • Max Cut Depth: 3xD
  • Shank Form: A
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: M
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T3940400

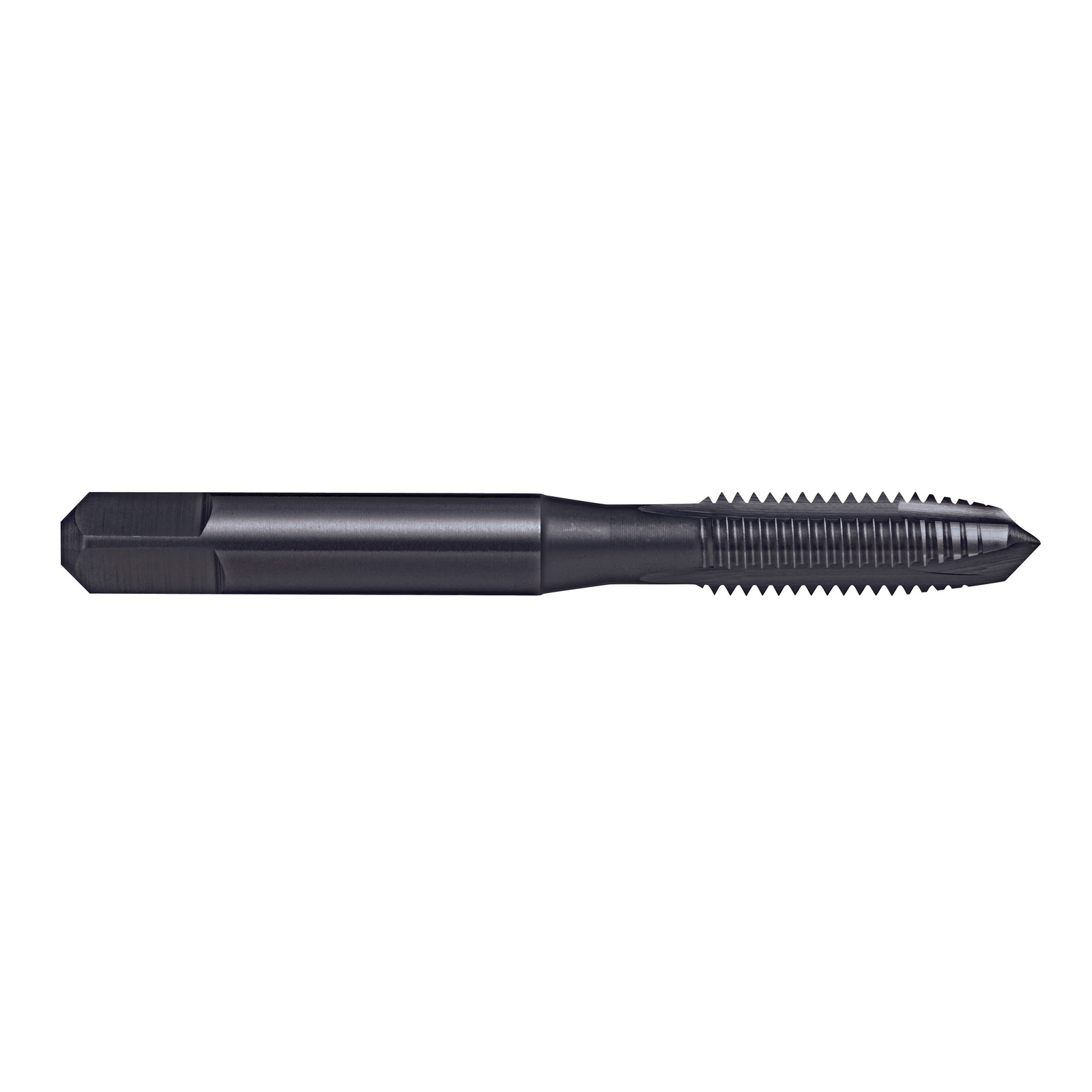

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3940400
Barcode # 9311963002149
Brand Sutton Tools
Shipping Weight 0.0060kg
Shipping Width 0.010m
Shipping Height 0.009m
Shipping Length 0.063m
Shipping Cubic 0.000006000m3
