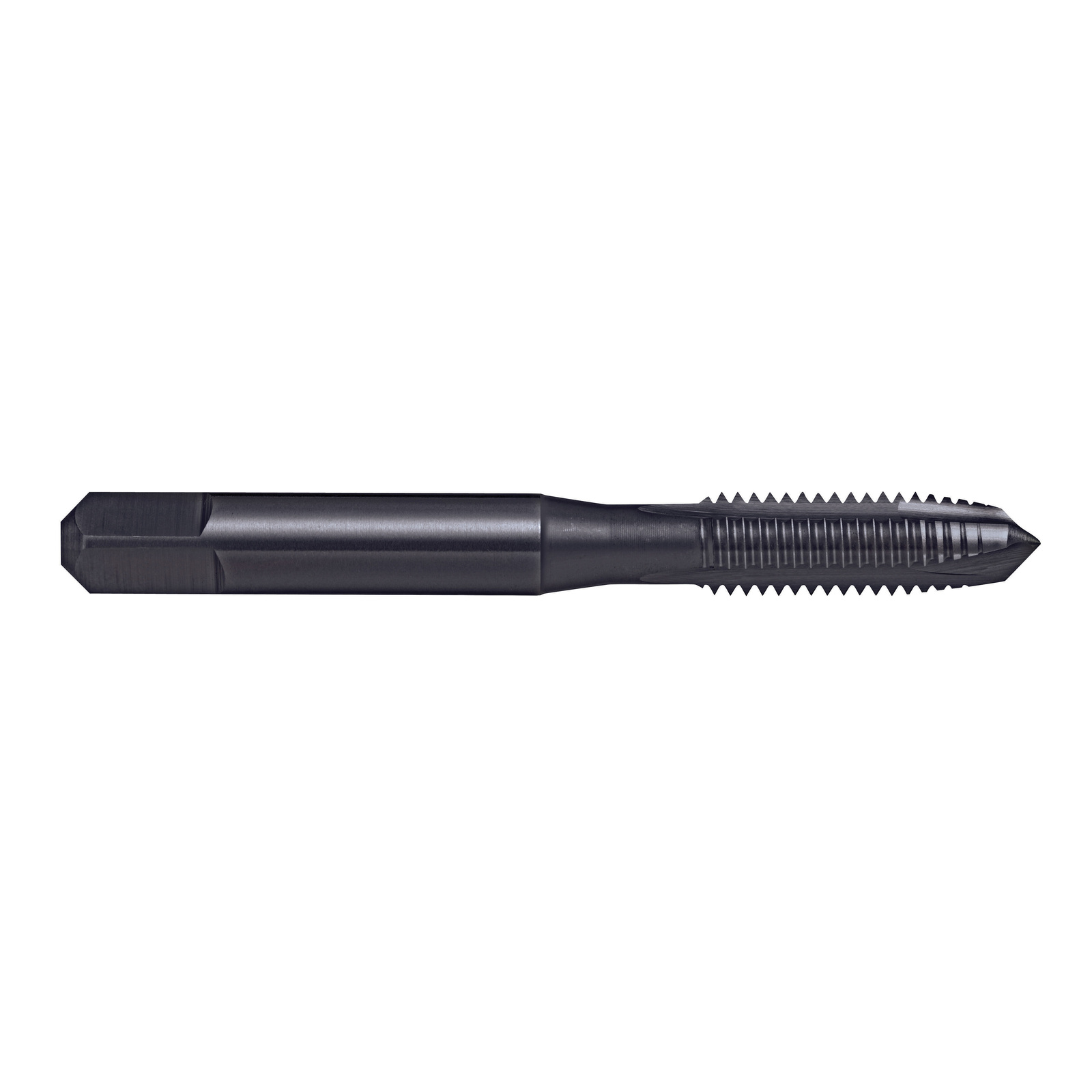

Tap T394 M 3x0.5 6H Gun N ISO529 Inter HSSE BLU Sutton T3940300

Spiral Point Gun Tap - M - Intermediate Blu, HSSE V3

Features

• General purpose use
• Suitable for materials up to 1000N/mm2
• Through holes
• Depths up to approx. 3 x d1

Specifications

• Designation: N
• Material: HSSE V3
• Finish: Blu
• Max Cut Depth: 3xD
• Shank Form: A
• Type: Spiral Point (Gun)
• Standard: ISO529
• Thread Form: M
• Nut Tolerance: ISO 2 / 6H
• Lead: Form B / 4.5 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T3940300
