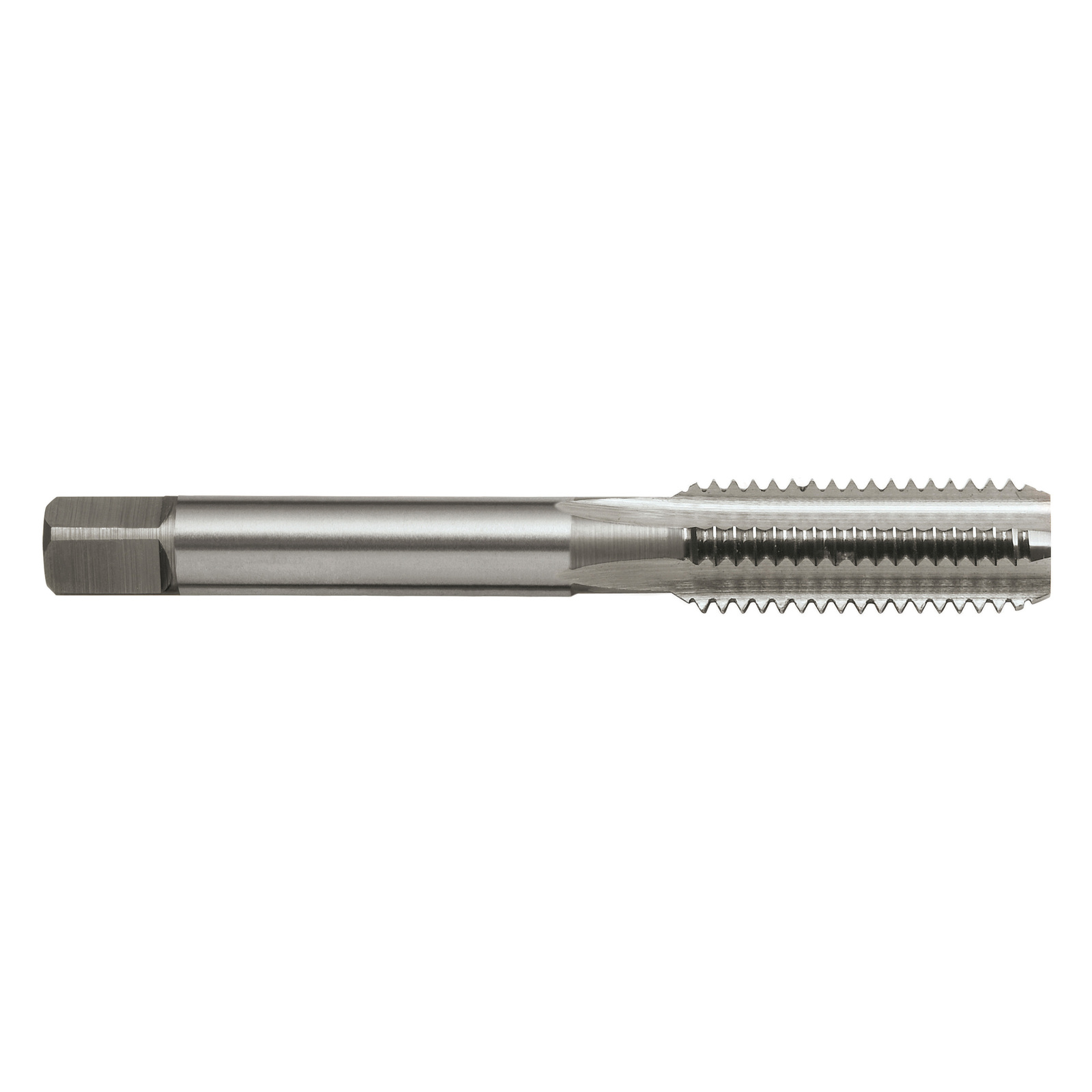

Tap T392 M 10 + 0.4mmx1.5 6H Straight N ISO529 Bott HSS Sutton T3921000

Features

• Oversize allowance to suit components for galvanize plating
• General purpose use, materials up to 1000N/mm2
• Through & blind holes
• Suitable for both hand and machine operations
• Depths up to approx 1 x d1
• Taper and inter leads available on request

Specifications

• Designation:
• Material: High Speed Steel (HSS)
• Finish: Bright
• Max Cut Depth: 1xD
• Shank Form: Reduced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: ISO529
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: ISO 2 / 6H
• Lead: Bottoming

Part Number/SKU: T3921000
