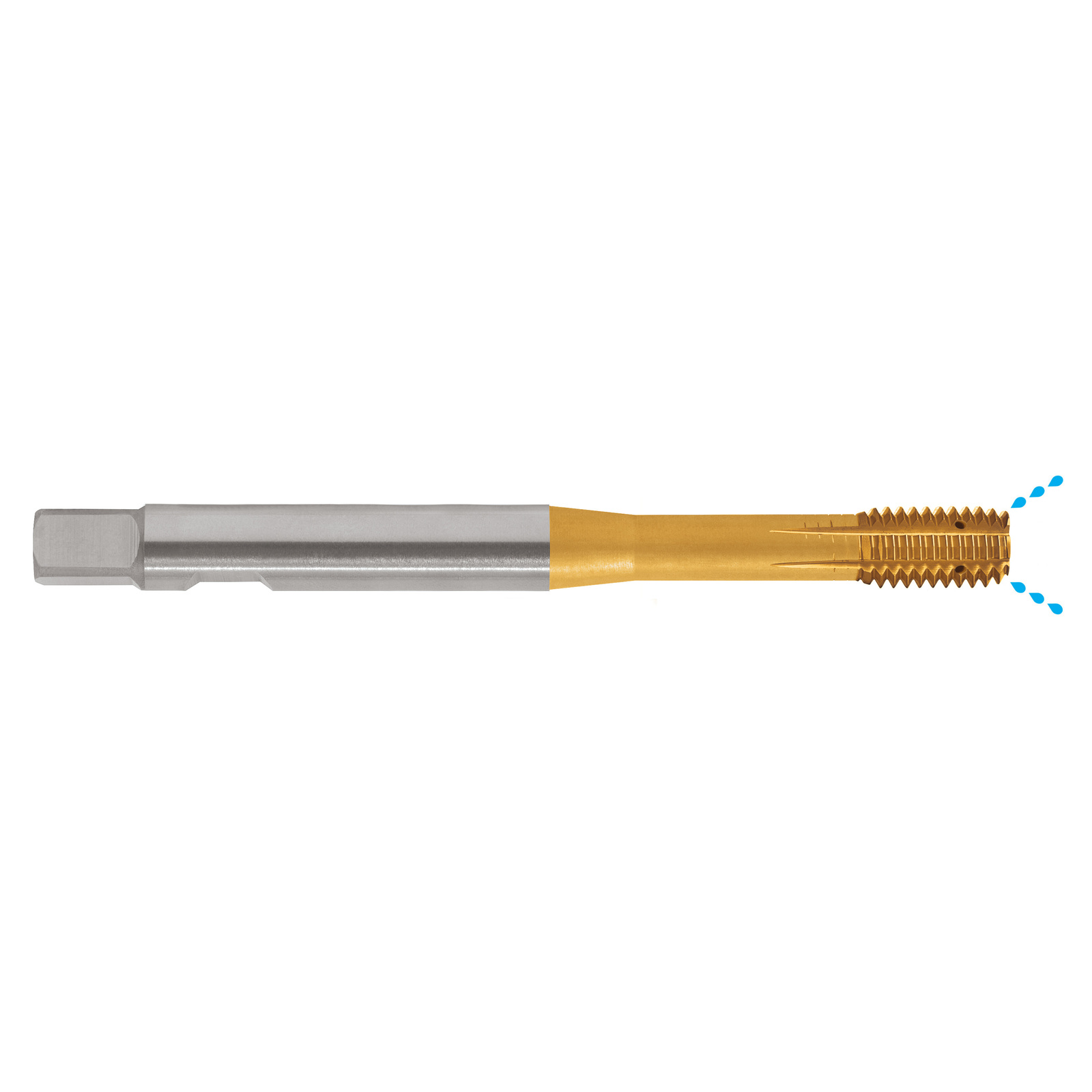

TAP T383 M 12x1.75 6HX FORMING IK D1835-B C PM-V3 TiN SYNC SUTTON T3831200



Features

  • For high speed and precision tapping
  • For rigid tapping in CNC machines with synchronised feed
  • For aluminium and aluminium alloys
  • Process of plastic deformation to imprint thread on material
  • Blind and through holes up to 2 x d1
  • h6 endmill shank

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 2xD
  • Shank Form: Reinforced Shank (square-end, drive-flat)
  • X: ru
  • Type: Fluteless - Multi Coolant Groove
  • Standard: Sutton
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

Part Number/SKU: T3831200

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3831200
Barcode # 9311963432298
Brand Sutton Tools
Shipping Weight 0.0820kg
Shipping Width 0.017m
Shipping Height 0.016m
Shipping Length 0.122m
Shipping Cubic 0.000033000m3
