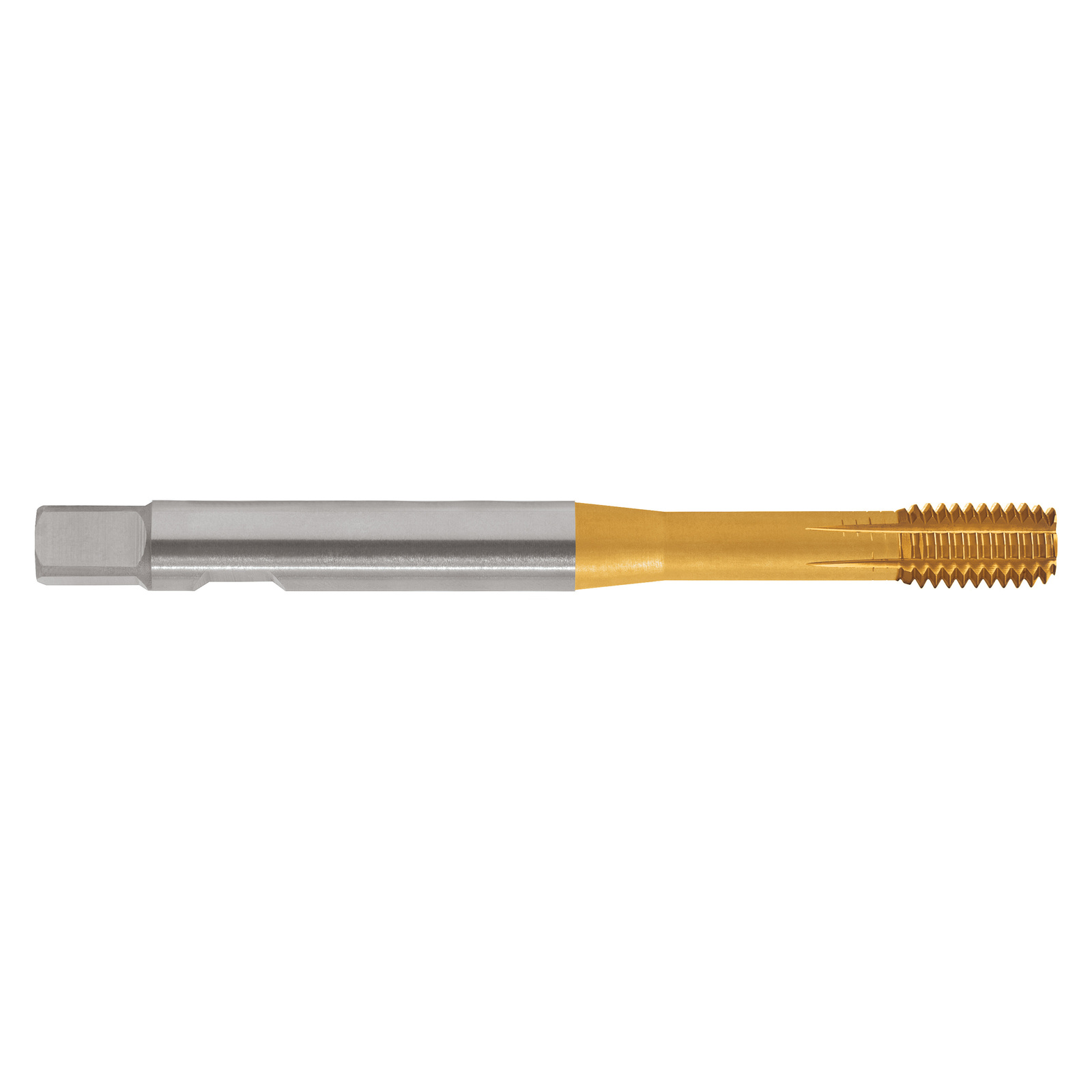

TAP T381 M 5x0.8 6HX FORMING D1835-B C PM-V3 TiN SYNCHRO T3810500

Features

• For high speed and precision tapping
• For rigid tapping in CNC machines with synchronised feed
• For aluminium and aluminium alloys
• Process of plastic deformation to imprint thread on material
• Blind and through holes up to 2 x d1
• h6 endmill shank

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 2xD
• Shank Form: Reinforced Shank (square-end, drive-flat)
• X: als
• Type: Fluteless - Multi Coolant Groove
• Standard: Sutton
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6HX
• Lead: Form C / 3 x P

Part Number/SKU: T3810500
