Tap T361 G 1/2-14 (BSPF) Forming Din5156 C HSSE Sutton T3612096



Features

  • For cold forming of threads in materials with good flow characteristics
  • Brt - For non-ferrous materials
  • TiCN - Suitable for abrasive and difficult materials
  • Through or blind holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Fluteless - Multi Coolant Groove
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228 X
  • Lead: Form C / 3 x P

Part Number/SKU: T3612096

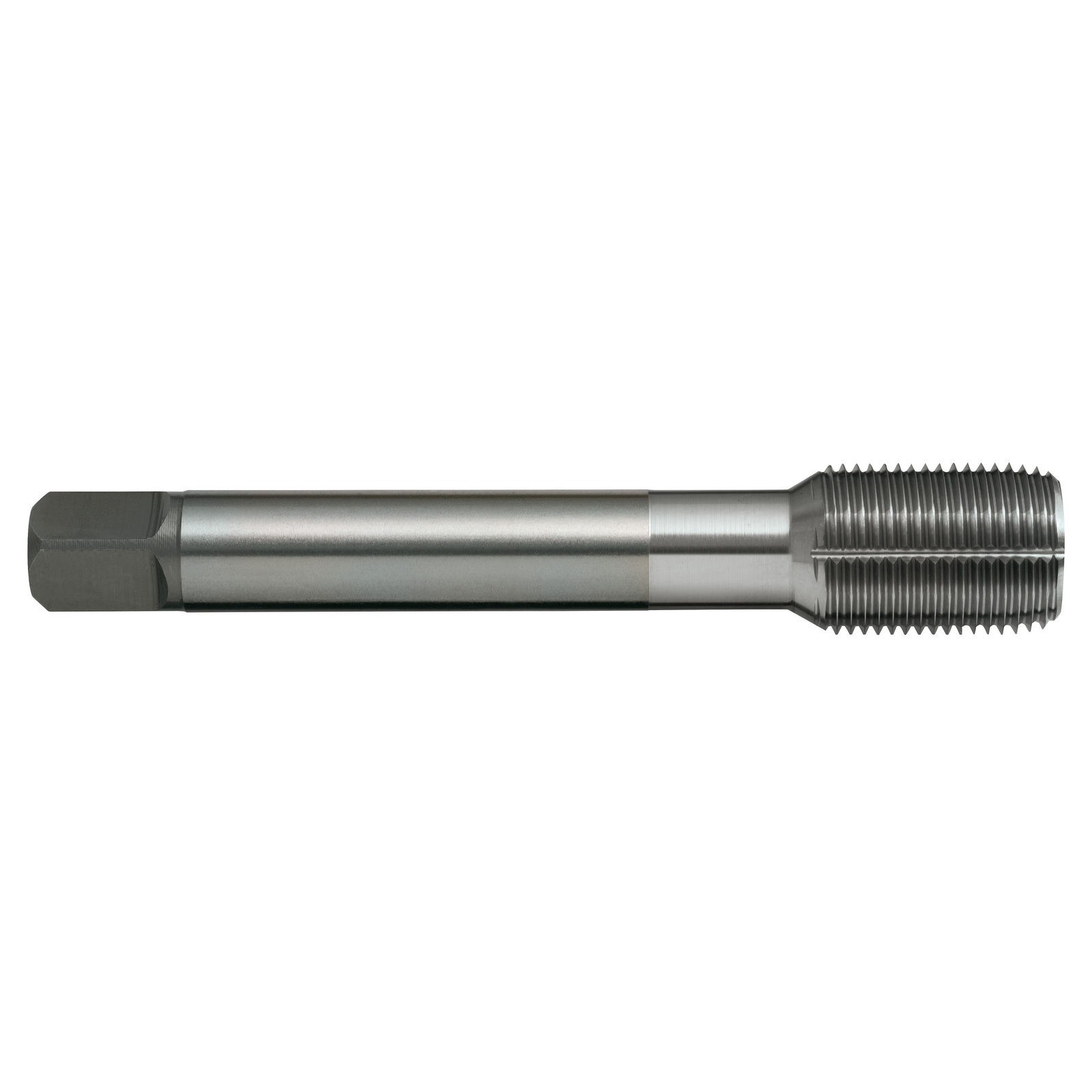

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3612096
Barcode # 9311963191768
Brand Sutton Tools
Shipping Weight 0.2200kg
Shipping Width 0.023m
Shipping Height 0.023m
Shipping Length 0.130m
Shipping Cubic 0.000069000m3
