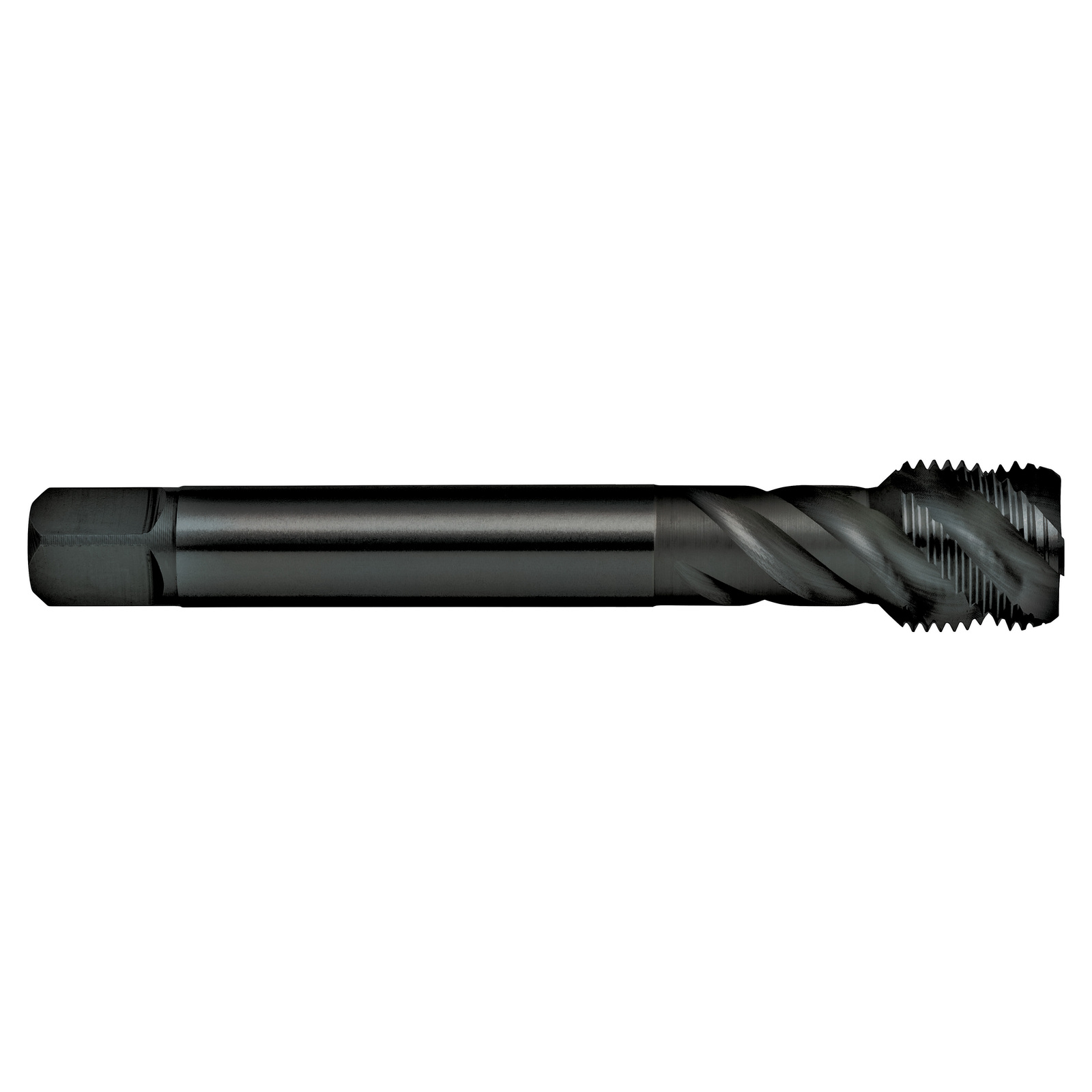

Tap T351 G 1/8-28 6HX (BSPF) SPL R50 VA Din5156 C PM-V3 Blu Sutton T3510973



Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • PM-HSSE V3 offers higher edge hardness than standard VA series
  • Blind holes
  • Suitable for machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R50
  • X: als
  • Type: Spiral Flute
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form C / 3 x P

Part Number/SKU: T3510973

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3510973
Barcode # 9311963439556
Brand Sutton Tools
Shipping Weight 0.0310kg
Shipping Width 0.014m
Shipping Height 0.013m
Shipping Length 0.115m
Shipping Cubic 0.000021000m3
