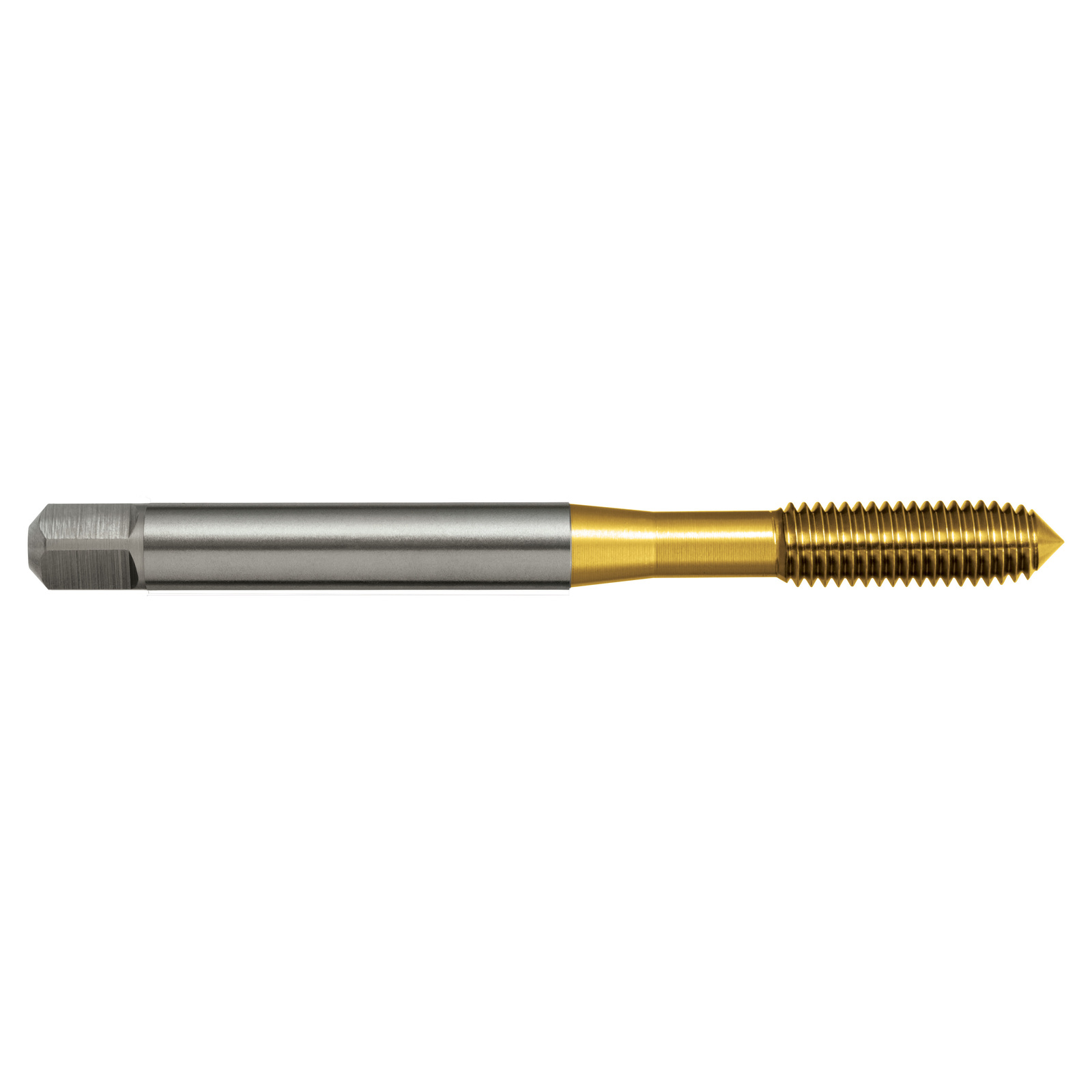

TAP T315 M 8x1.25 6HX FORMING N DIN2174 D HSSE TiN T3150800

Features

• Suitable for materials with >10% elongation
• Through or blind holes
• Depths up to 3 x d1

Specifications

• Designation: N (for normal and general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Titanium Nitride (TiN)
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Fluteless - No Groove
• Standard: DIN2174
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6HX
• Lead: Form D / 4 x P

Part Number/SKU: T3150800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
