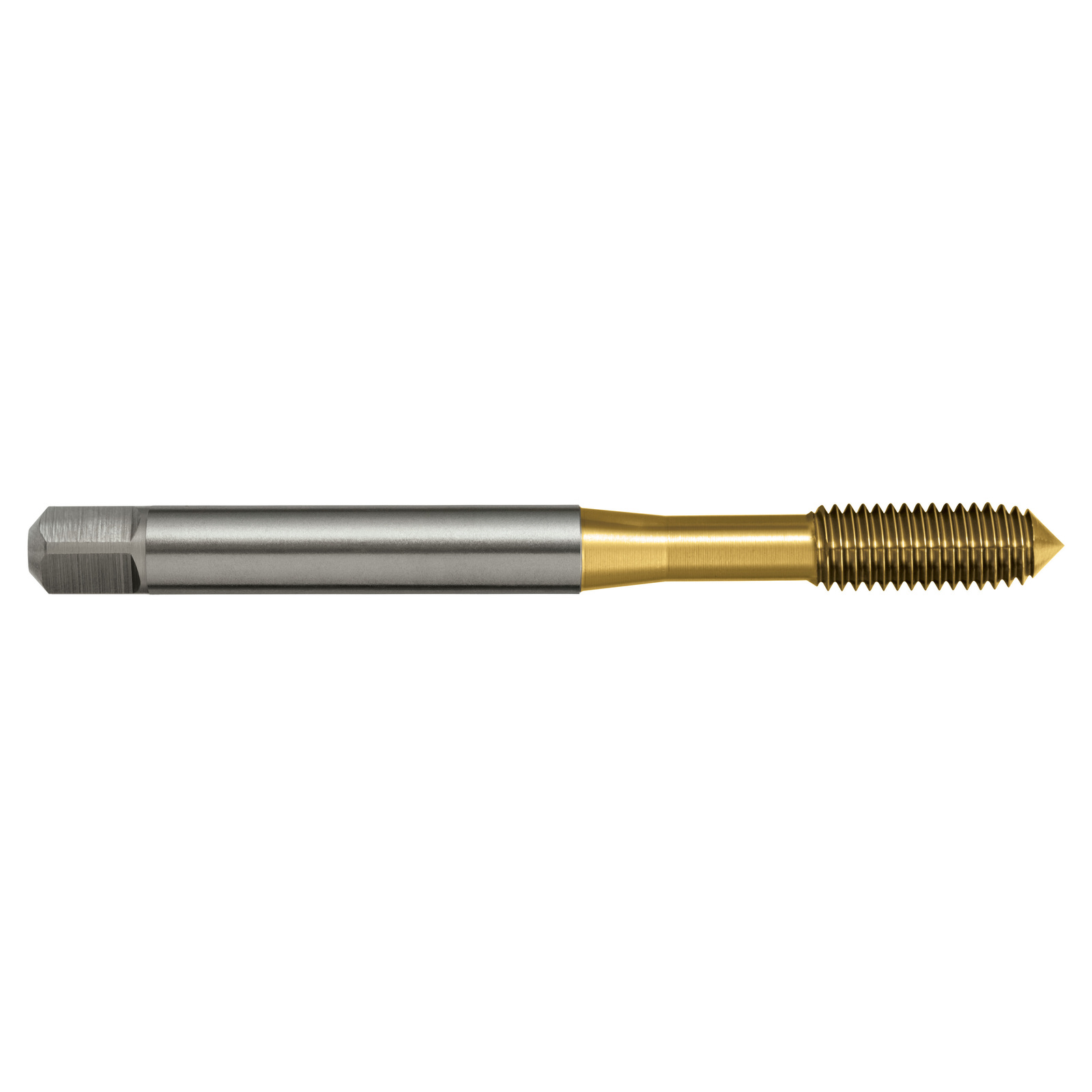

TAP T313 M1x0.25 6HX FORMING N DIN2174 C HSSE TiN T3130100



Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - No Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Part Number/SKU: T3130100

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3130100
Barcode # 9311963554044
Brand Sutton Tools
Shipping Weight 0.0040kg
Shipping Width 0.063m
Shipping Height 0.011m
Shipping Length 0.011m
Shipping Cubic 0.000008000m3
