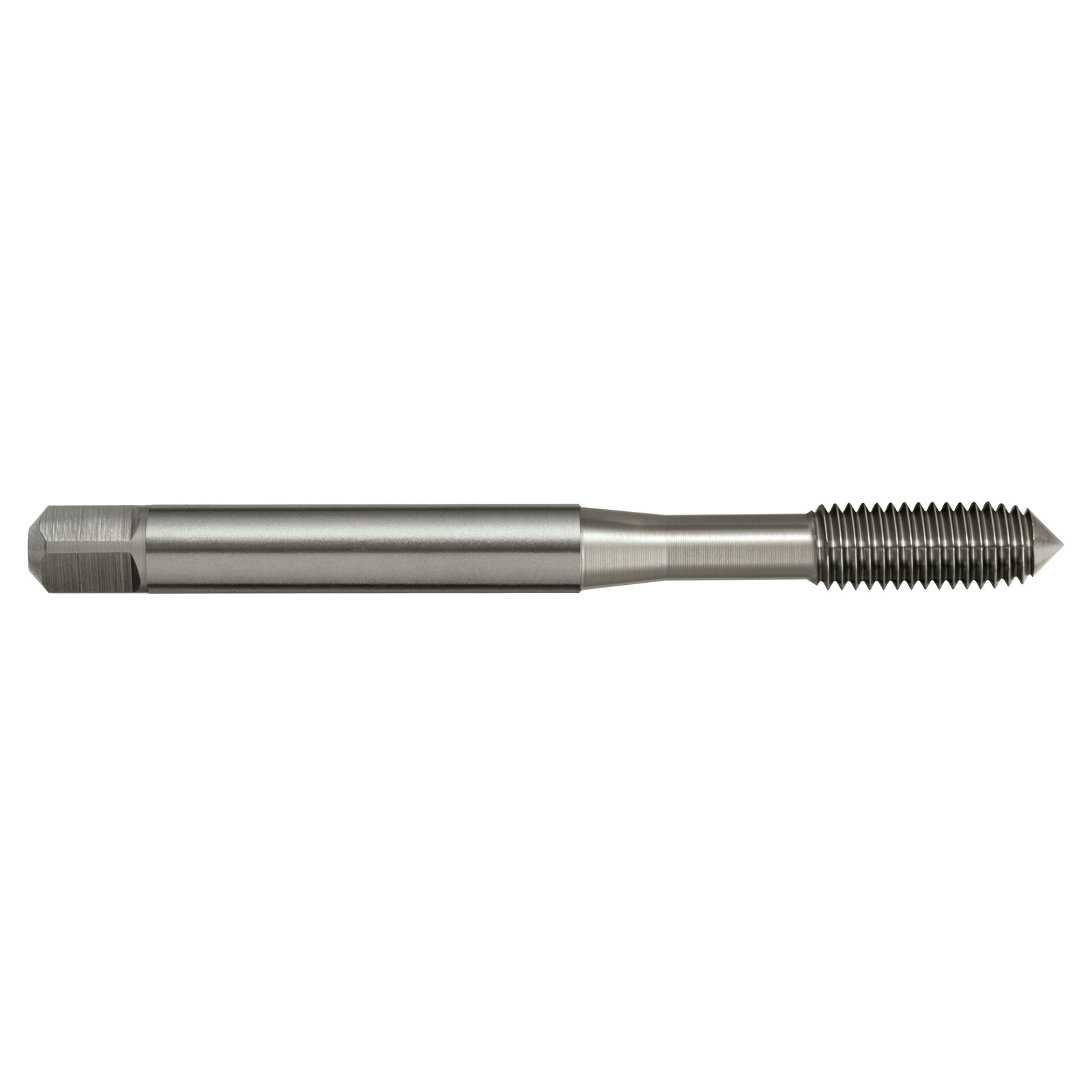

Tap T309 M 8x1.25 6HX Forming N Din2174 C HSSE Sutton T3090800



Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - No Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Part Number/SKU: T3090800

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T3090800
Barcode # 9311963385860
Brand Sutton Tools
Shipping Weight 0.0320kg
Shipping Width 0.014m
Shipping Height 0.014m
Shipping Length 0.115m
Shipping Cubic 0.000023000m3
