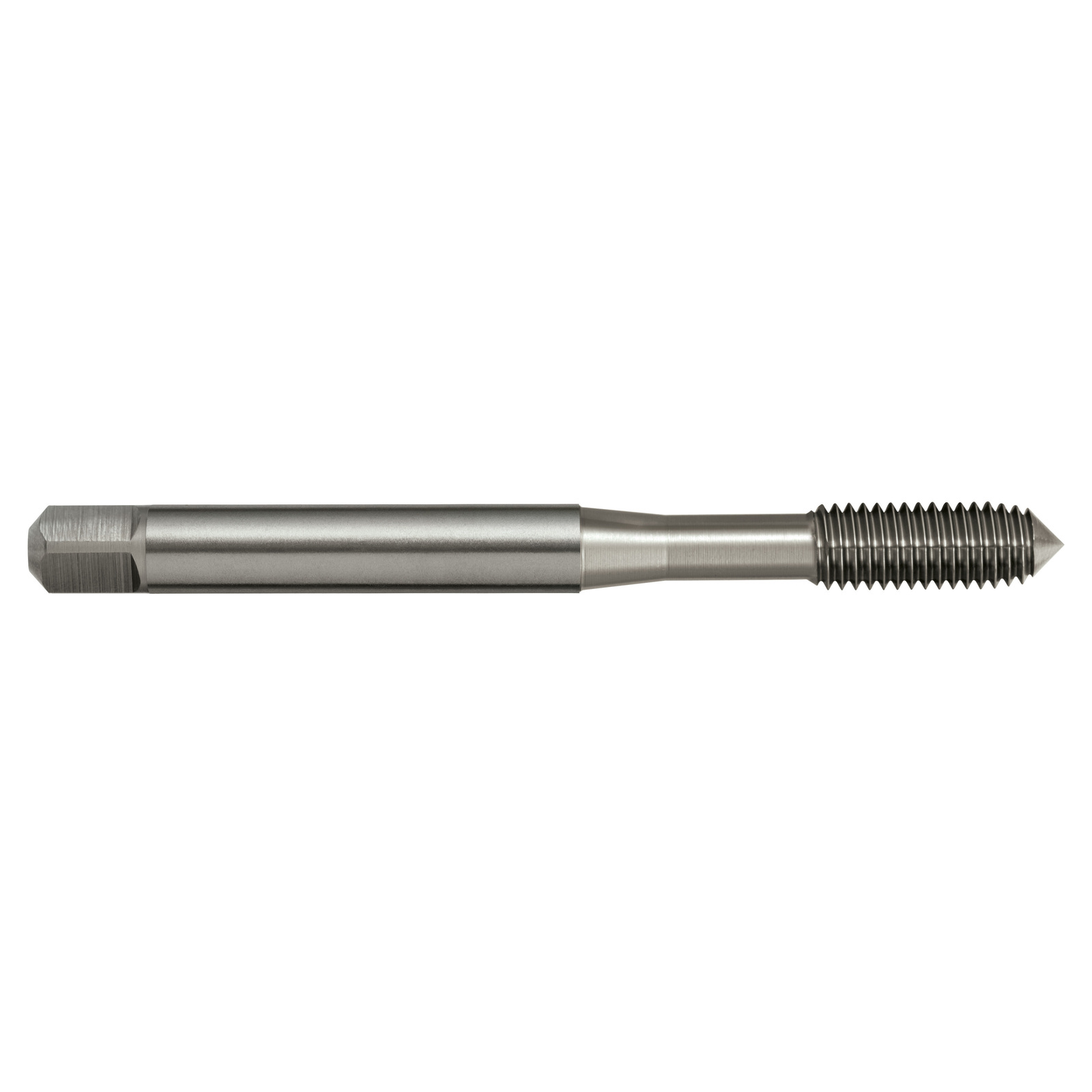

Tap T309 M 6x1 6HX Forming N Din2174 C HSSE Sutton T3090600

Features

• Suitable for materials with >10% elongation
• Through or blind holes
• Depths up to 3 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 3xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Fluteless - No Groove
• Standard: DIN2174
• Thread Form: ISO Metric Coarse (M)
• Nut Tolerance: 6HX
• Lead: Form C / 3 x P

Part Number/SKU: T3090600

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
