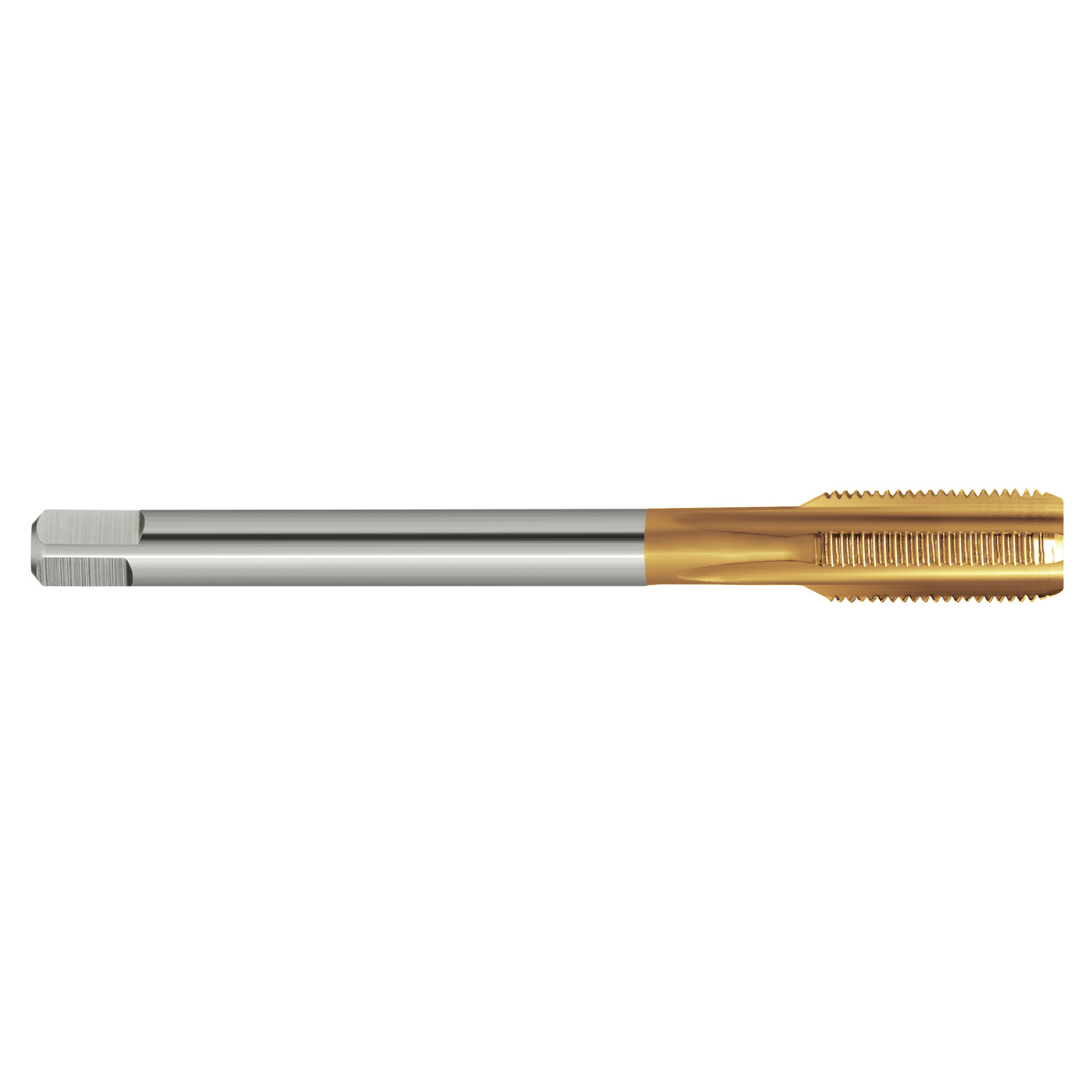

TAP T299 MF 14x1 6H STRAIGHT N DIN374 C HSSE TiN T2991405



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Part Number/SKU: T2991405

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2991405
Barcode # 9311963514536
Brand Sutton Tools
Shipping Weight 0.0720kg
Shipping Width 0.016m
Shipping Height 0.016m
Shipping Length 0.102m
Shipping Cubic 0.000026000m3
