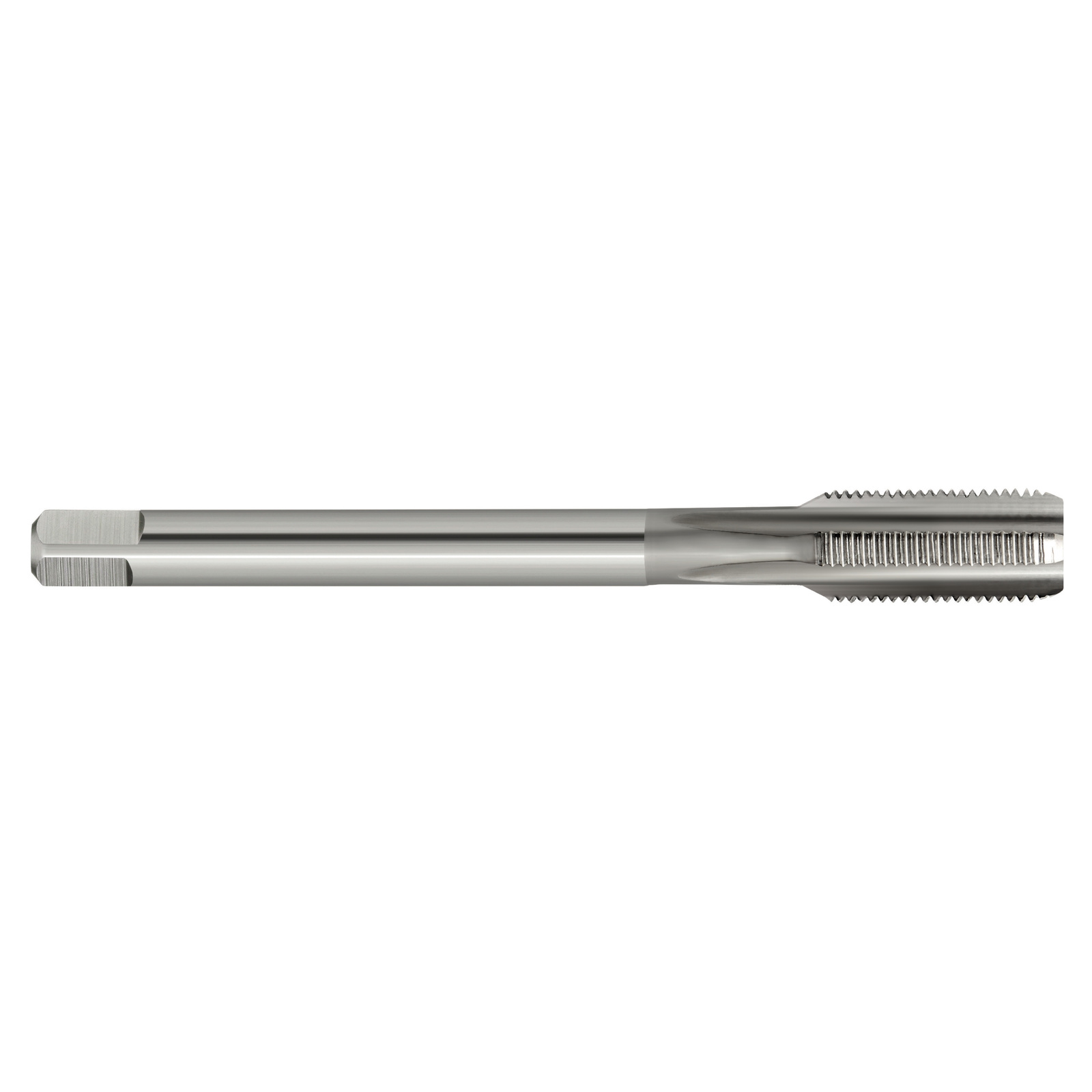

Tap T298 MF 6x0.5 6H Straight N Din374 C HSSE Sutton T2980603

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Through & blind holes
• Suitable for machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 1xD A
• Shank Form: ISO Metric Fine (MF)
• X: als
• Type: Straight Flute
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: Form C / 3 x P

Part Number/SKU: T2980603

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
