Tap T298 MF 12x1.5 6H Straight N DIN374 C HSSE Sutton T2981207

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Through & blind holes
• Suitable for machine operations
• Depths up to approx. 1 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 1xD A
• Shank Form: ISO Metric Fine (MF)
• X: als
• Type: Straight Flute
• Standard: DIN374
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: Form C / 3 x P

Applications

• Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
• Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
• Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
• Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T2981207

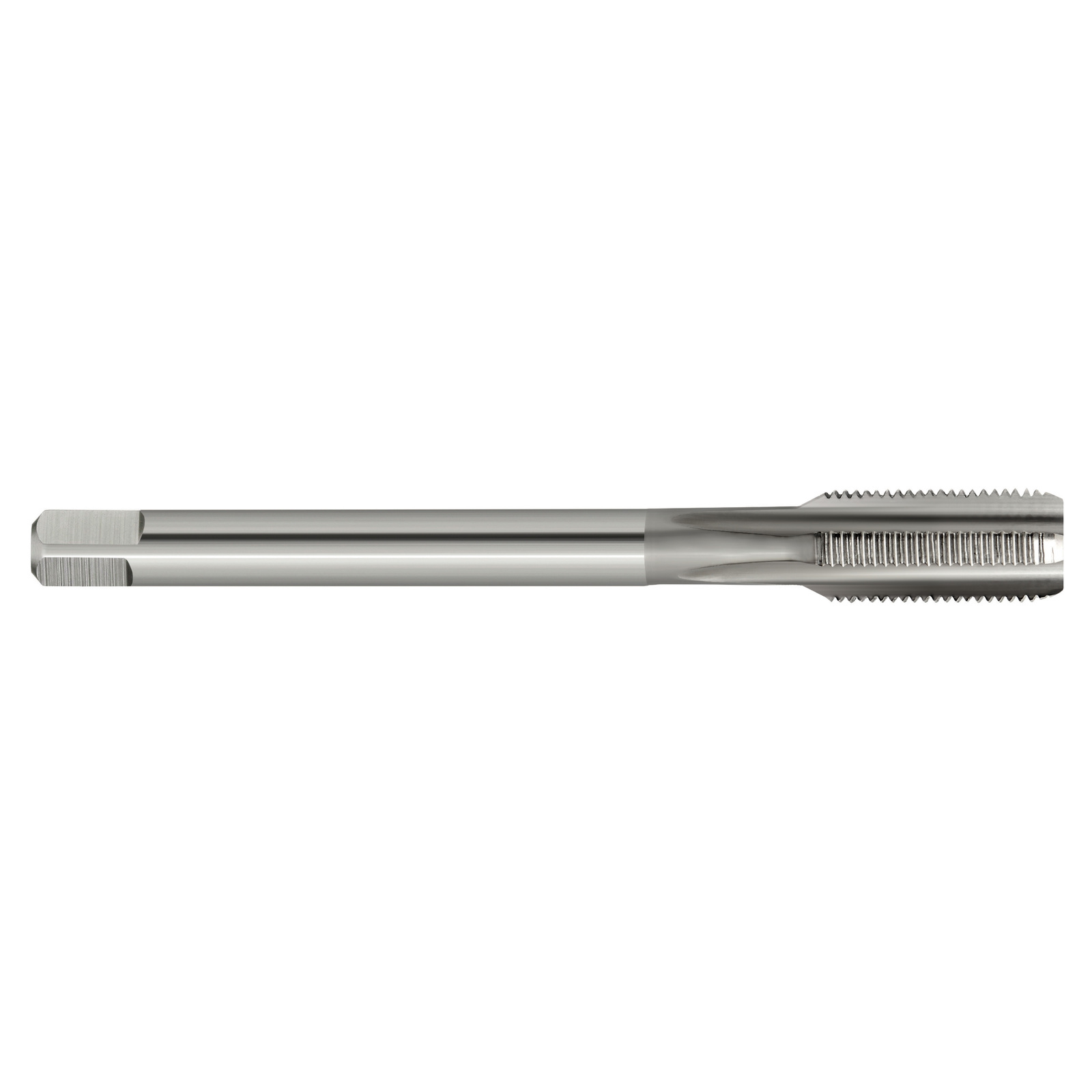

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
