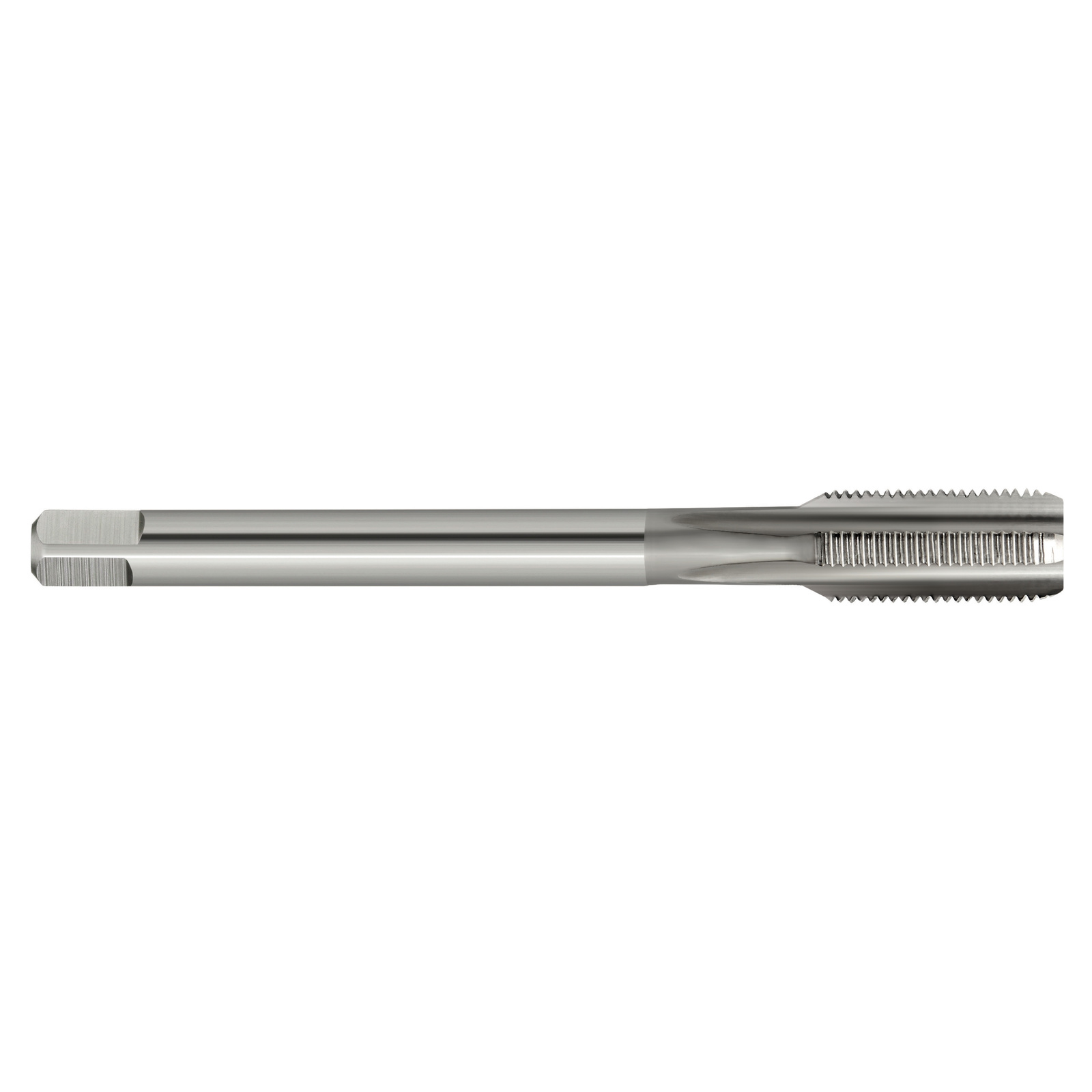

Tap T298 MF 10x0.75 6H Straight N DIN374 C HSSE Sutton T2981004



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 1xD A
  • Shank Form: ISO Metric Fine (MF)
  • X: als
  • Type: Straight Flute
  • Standard: DIN374
  • Thread Form: ISO Metric Fine (MF)
  • Nut Tolerance: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Part Number/SKU: T2981004

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2981004
Barcode # 9311963514116
Brand Sutton Tools
Shipping Weight 0.2770kg
Shipping Width 0.077m
Shipping Height 0.043m
Shipping Length 0.094m
Shipping Cubic 0.000311234m3
