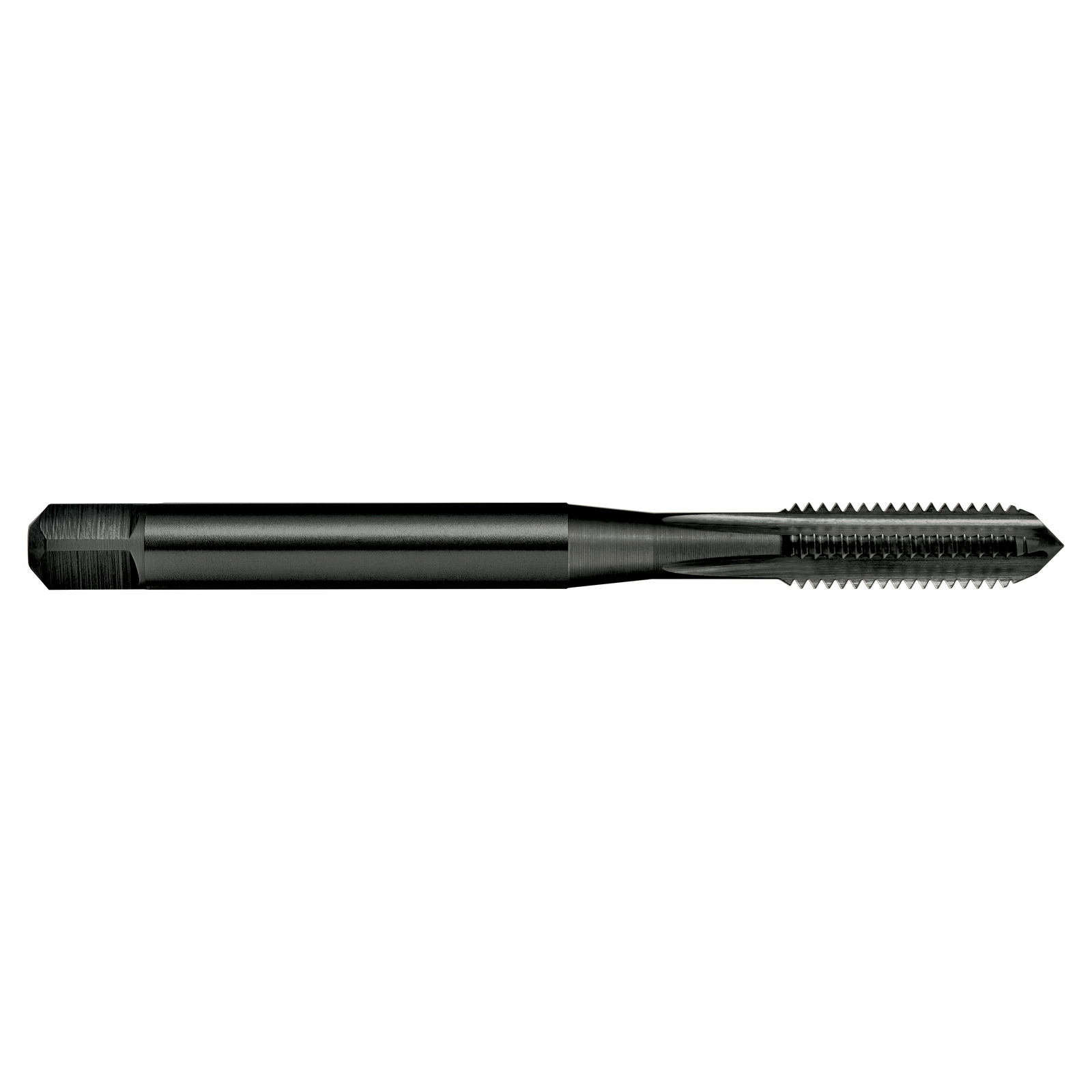

Tap T290 M 5x0.8 6HX StraightGG Din371 C HSSE Ni+Blu Sutton T2900500



Features

  • For use in grey cast iron (GG)
  • Through & blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: GG (for cast iron)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Plasma Nitride (Ni) + Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form C / 3 x P

Part Number/SKU: T2900500

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2900500
Barcode # 9311963121772
Brand Sutton Tools
Shipping Weight 0.0140kg
Shipping Width 0.010m
Shipping Height 0.008m
Shipping Length 0.095m
Shipping Cubic 0.000008000m3
