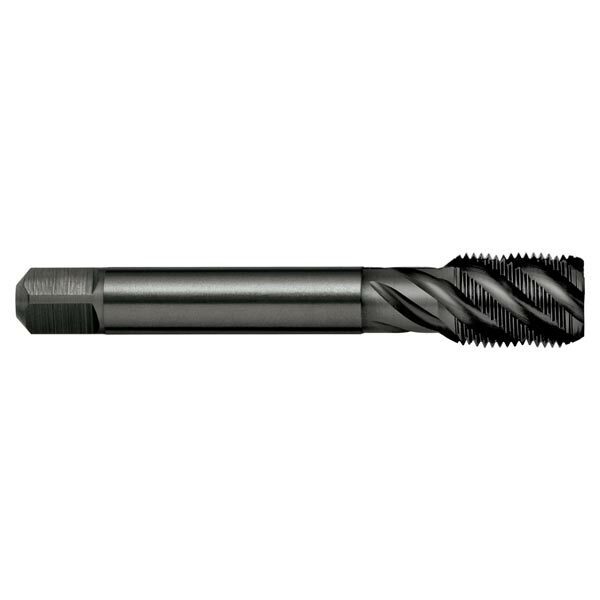

Tap T284 G 1-11 (BSPF) Spiral R45 VA Din5156 C HSSE Blu Sutton T2843325



Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form C / 3 x P

Part Number/SKU: T2843325

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T2843325
Barcode # 9311963191645
Brand Sutton Tools
Shipping Weight 0.6020kg
Shipping Width 0.035m
Shipping Height 0.035m
Shipping Length 0.162m
Shipping Cubic 0.000198450m3
