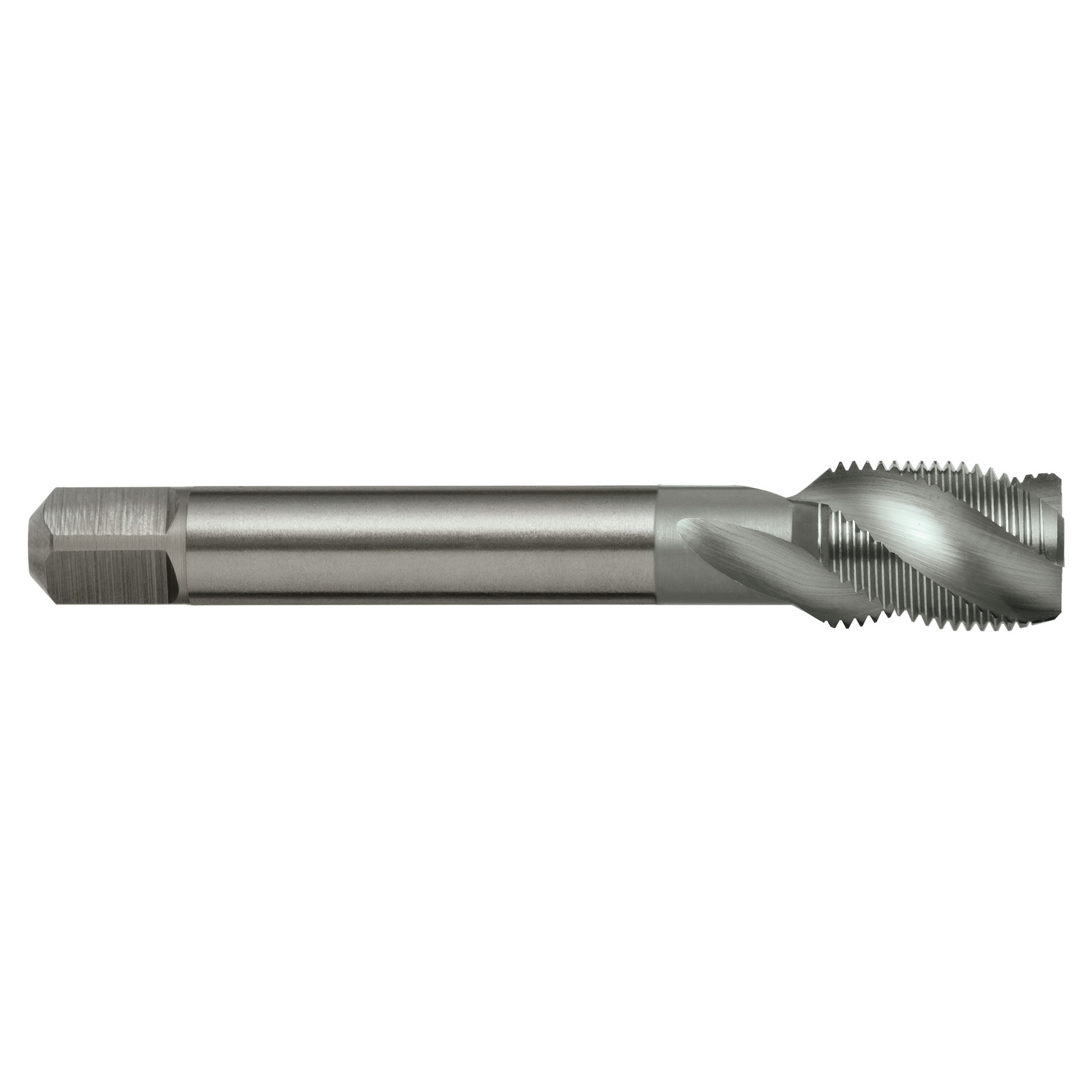

Tap T281 G 3/4-14 (BSPF) Spiral R40 N Din5156 C HSSE Sutton T2812644

Features

• General purpose use, materials up to approx. 1000 N/mm2
• Blind holes
• Suitable for machine operations
• Depths up to approx. 2.5 x d1

Specifications

• Designation: N (for normal general purpose type materials)
• Material: Premium Grade High Speed Steel (HSSE-V3)
• Finish: Bright
• Max Cut Depth: 2.5xD
• Shank Form: Reduced Shank (with square drive)
• Helix Angle: R40
• X: als
• Type: Spiral Flute
• Standard: DIN5156
• Thread Form: ISO G Parallel Series 55° (G-BSPF)
• Nut Tolerance: ISO 228
• Lead: Form C / 3 x P

Part Number/SKU: T2812644
